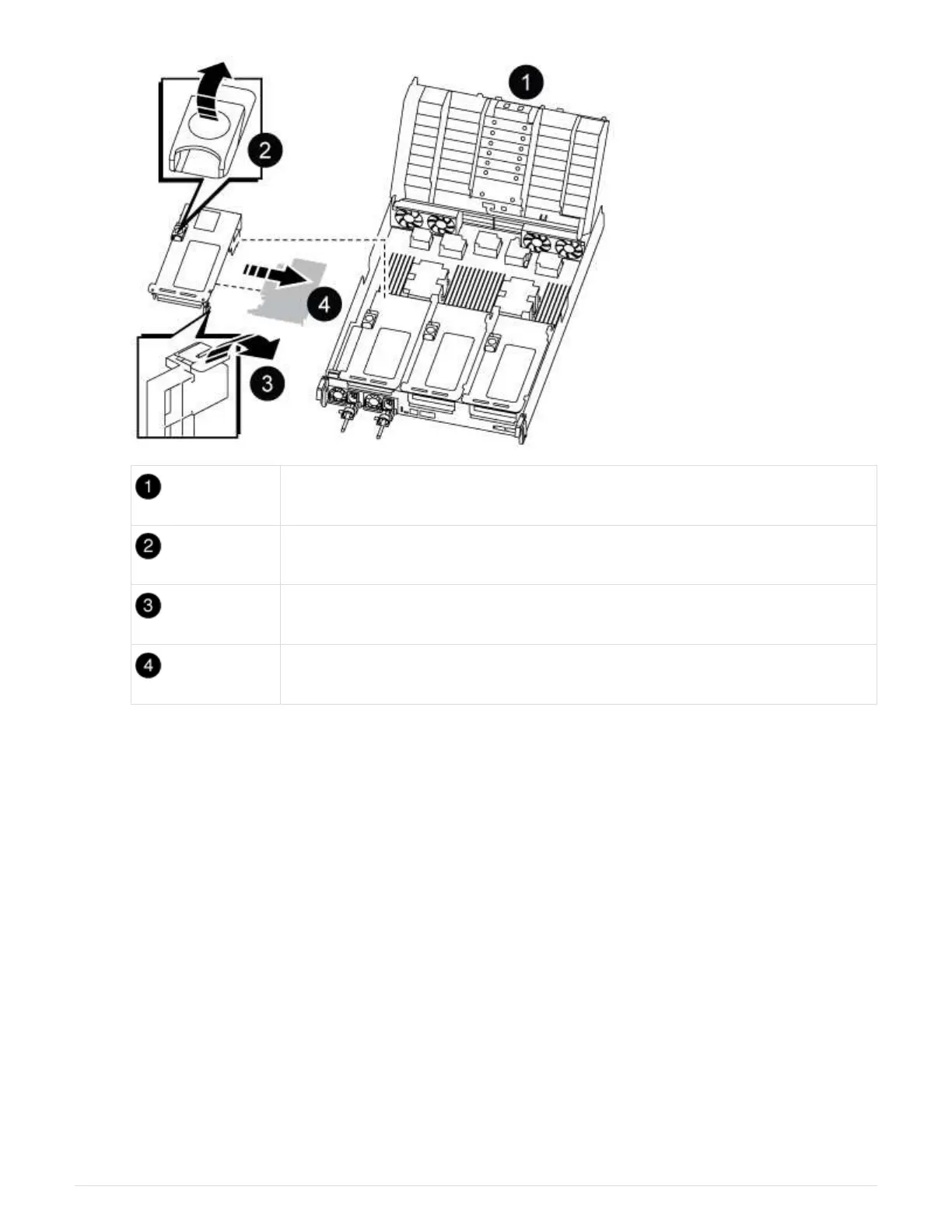

Air duct
Riser locking latch
Card locking bracket
Riser 1 (left riser) with 100GbE PCIe card in slot 1.
3. Remove the PCIe card from Riser 1:
a. Turn the riser so that you can access the PCIe card.
b. Press the locking bracket on the side of the PCIe riser, and then rotate it to the open position.
c. Remove the PCIe card from the riser.
4. Remove the PCIe riser from the controller module:
a. Remove any SFP or QSFP modules that might be in the PCIe cards.
b. Rotate the riser locking latch on the left side of the riser up and toward the fan modules.
The riser raises up slightly from the controller module.
c. Lift the riser up, shift it toward the fans so that the sheet metal lip on the riser clears the edge of the
controller module, lift the riser out of the controller module, and then place it on a stable, flat surface.
