2. To complete setting up your system, see Step4: Completing system setup and configuration.

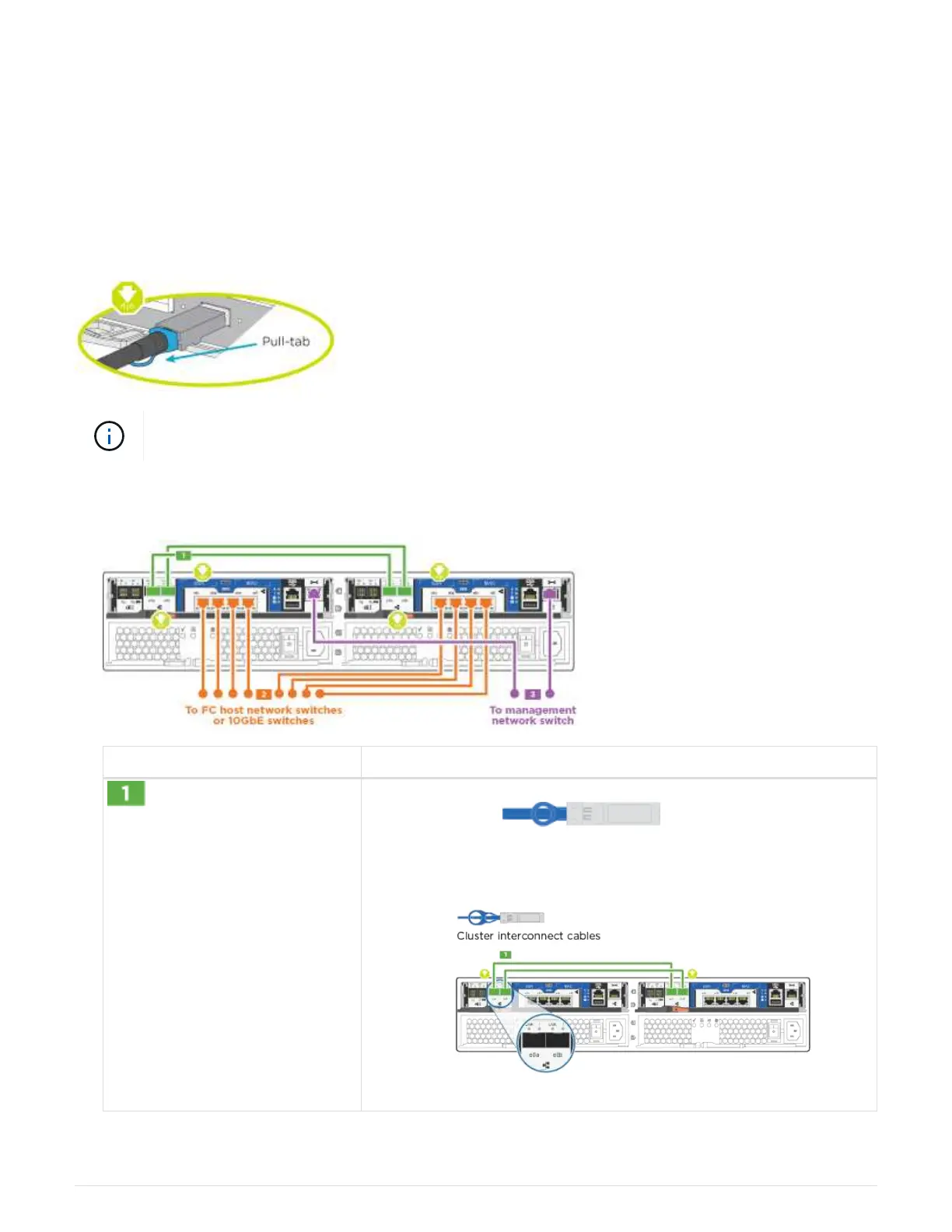

Option 3: Cable a two node switchless cluster, Ethernet configuration
RJ45 ports and management ports on the controller modules are connected to switches.
The cluster interconnect ports are cabled on both controller modules.
Contact your network administrator for information about connecting the system to the switches.
Be sure to check the illustration arrow for the proper cable connector pull-tab orientation.
As you insert the connector, you should feel it click into place; if you do not feel it click, remove
it, turn it around and try again.
1. Use the illustration or the step-by step instructions to complete the cabling between the controllers and to
the switches:
Step Perform on each controller
Cable the cluster interconnect ports to each other with the cluster
interconnect cable
:
• e0a to e0a
•
e0b to e0b
947
