NetApp DS2246 User Manual

3. Repeat Step 2 for the right half of the telco tray.
4. If you are installing your equipment in a mid-mount position, go to Step 5; otherwise, slide the equipment onto the telco tray,
and secure it to the two-post rack using the screws that came with your kit.
Note: If applicable, you might need to remove the end caps to secure the equipment to the rack post; if so, you need to
replace the end caps when you are done.

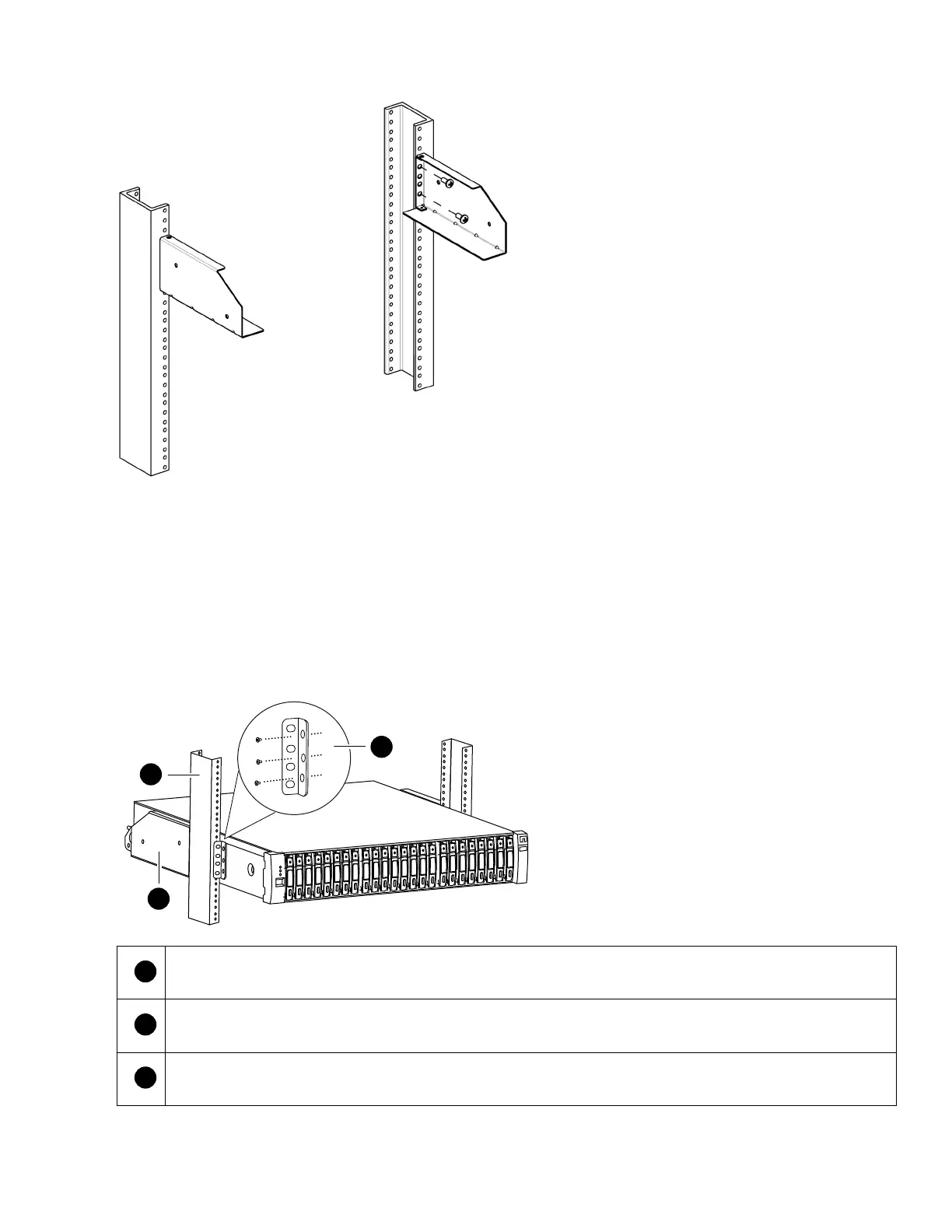

5. For mid-mount installations, align the screw holes on the equipment chassis with the screw holes on the mounting bracket,
and then secure the bracket to the chassis with three of the six M5 screws and star washers.
1
3
2
1
Telco tray
2
Rack post
3
Mid-mount bracket
6. Repeat Step 5 for the other mid-mount bracket.
2
Installing 2U equipment into a two-post rack

NetApp DS2246 Specifications

General

Data transfer rate	6 Gbit/s
Storage drive size	2.5 \
Storage drive interface	Serial Attached SCSI (SAS)
Storage drives installed	Yes
Installed storage drive type	HDD
Supported storage drive types	HDD & SSD
Total installed storage capacity	19.6 TB
Maximum supported storage capacity	- TB
Number of storage drives installed	24
Chassis type	Rack (2U)
Product color	Black
Device class	Large Enterprise Business
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Number of power supply units	2
Operating altitude	0 - 3045 m
Non-operating altitude	-305 - 12192 m
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Storage relative humidity (H-H)	10 - 95 %
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	484 mm
Width	480 mm
Height	85 mm
