NetApp E Series Install

a. Cable controller A to IOM A of the first drive shelf.
b. Cable IOM A of the first drive shelf to IOM A of the second drive shelf.
c. Cable IOM B of the first drive shelf to IOM B of the second drive shelf.
d. Cable controller B to IOM B of the second drive shelf.
Example B: An E2860 controller shelf with one DE460C disk shelf in a standard SAS configuration.
a. Cable controller A to IOM A.
b. Cable controller B to IOM B.
2. Power the drive shelves.

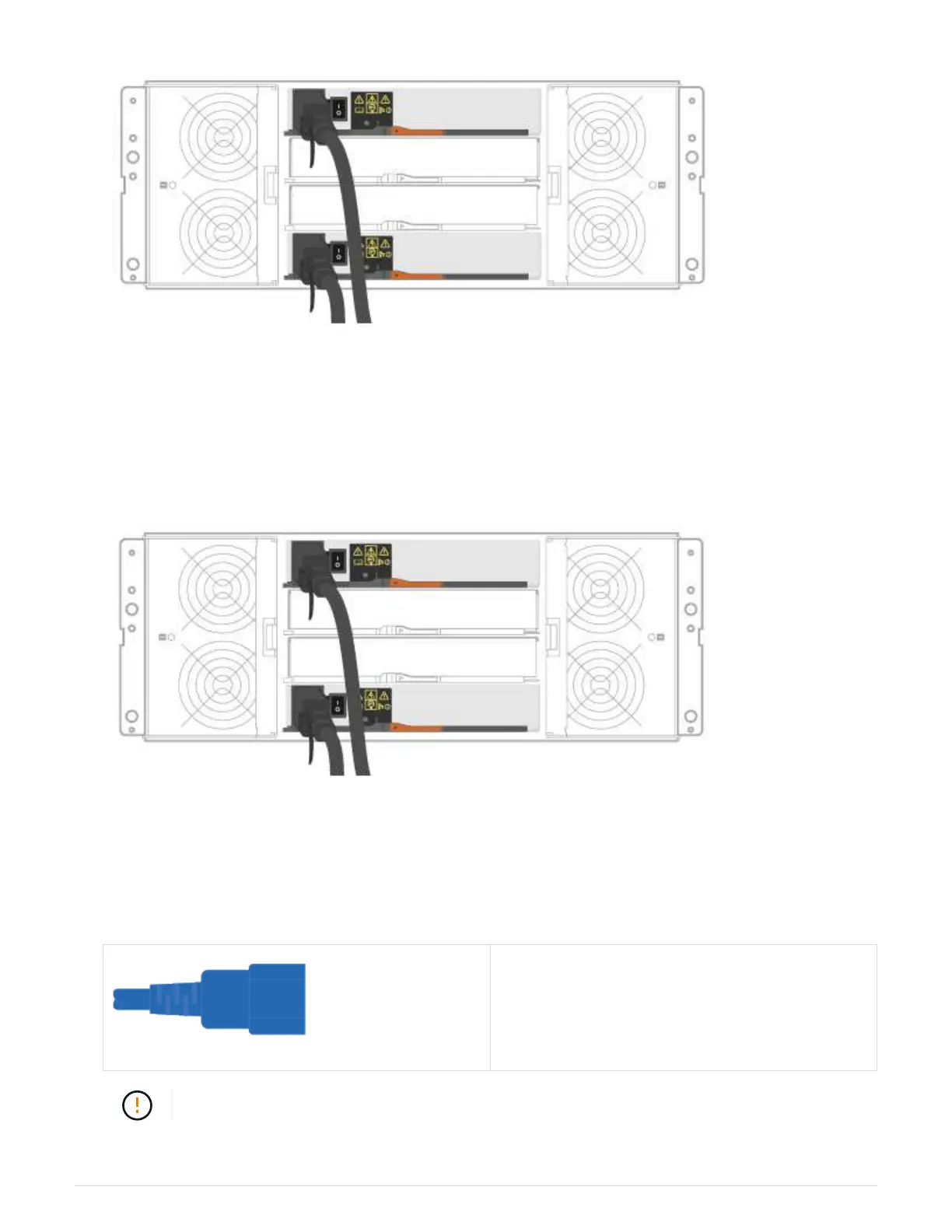

You need the following cables:
Power cables
Confirm the drive shelf power switches are off.
8

NetApp E Series Specifications

General

Form Factor	2U, 4U
Drive Types	SSD
Host Interface	SAS, iSCSI, FC, IB
RAID Levels	RAID 0, 1, 5, 6, 10
Operating System Compatibility	Windows, Linux, VMware
Management Software	SANtricity
