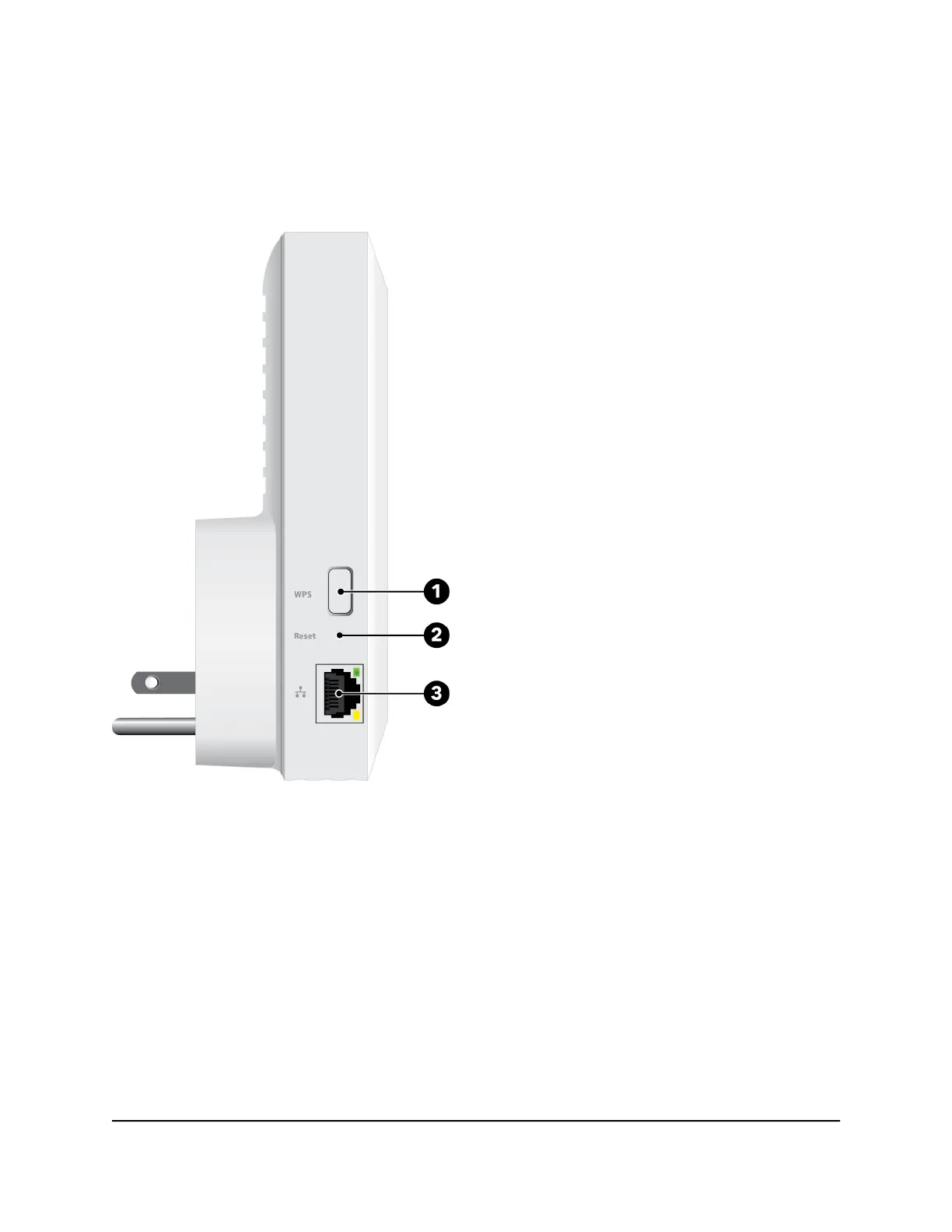

Side panel
The side panel of the extender provides a WPS button, Reset button, and Ethernet port.
Figure 3. Back panel
The side panel contains the following components:
1. WPS button. Pressing the WPS button allows the extender to connect to your existing
WiFi network through WPS. You can also connect WPS-enabled devices to the
extender using the WPS button.
2. Reset button. Pressing this button resets the extender. If the Reset button is pressed
for at least seven seconds, the Power LED blinks amber, and the extender returns
to its factory settings.
3. Ethernet port. Use an Ethernet cable to connect the Gigabit Ethernet RJ-45 LAN
port to a device that has a LAN Ethernet port.
User Manual9Overview
AX1600 4-Stream WiFi 6 Mesh Extender
