Manage Your Network
76
AC1750 WiFi Cable Modem Router
To run a ping test:
1. Launch a web browser from a computer or wireless device that is connected to the
network.
2. Type http://routerlogin.net or http://192.168.0.1.
A login screen displays.
3. Enter the modem router user name and password.
The user name is admin
.
The default password is password.
The user name and
password are case-sensitive.
The BASIC Home screen displays.

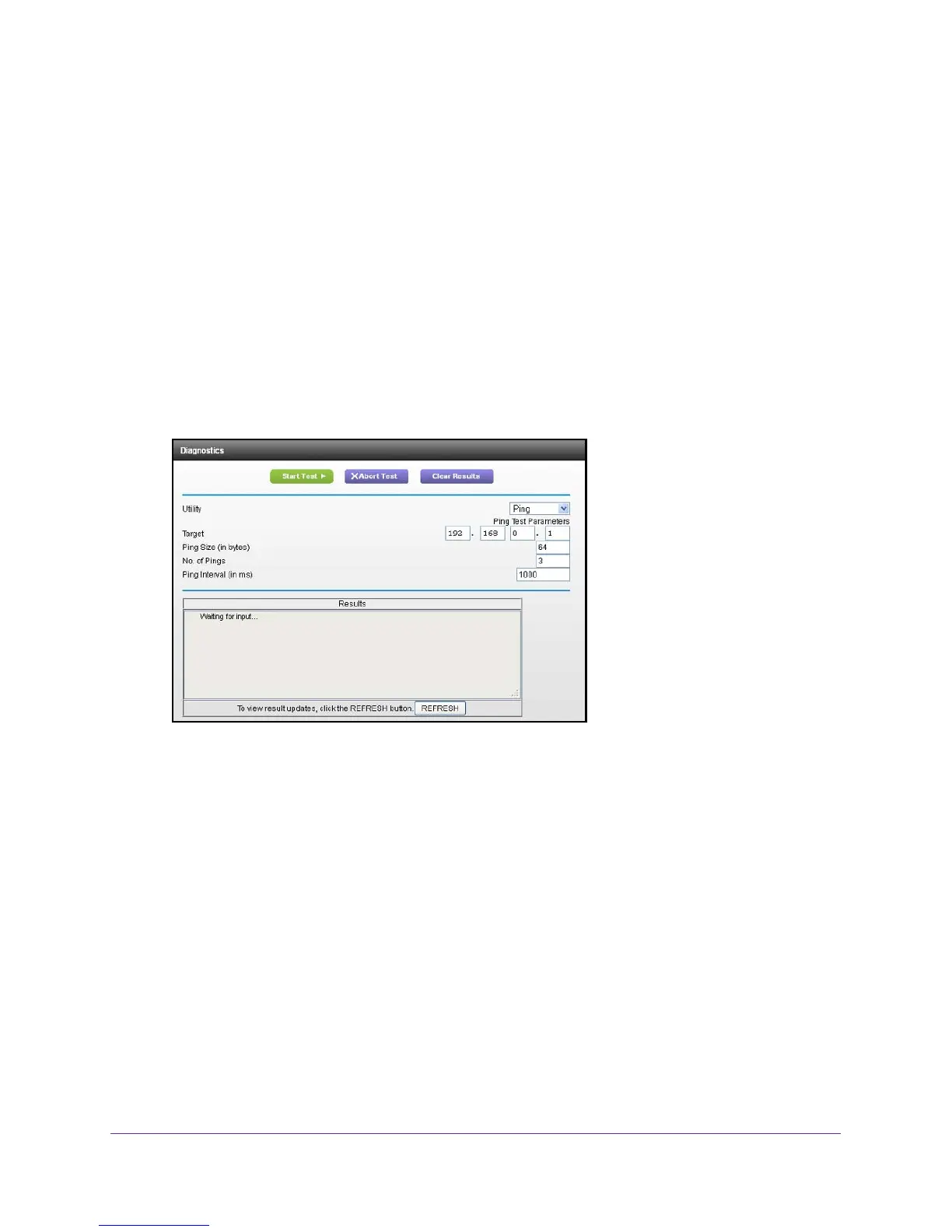

4. Select ADVANCED > Administration > Diagnostics
.
In the Utility list, Ping is selected by default.
5. Specify the following parameters:
• Target. The IP address of the ping target computer
.
• Ping Size. The size (in bytes) of the ping packet.
• No. of Pings. The number of times to ping the target computer.
• Ping Interval
. The time between pings.
6. Click the Start Test
button.
The ping results display
.
7. To stop a ping test, click the Abort Test
button.
To clear the results from the display, click the Clear Results button.
