NETGEAR CG3100 User Manual

Advanced Settings
37
NETGEAR Wireless Cable Gateway

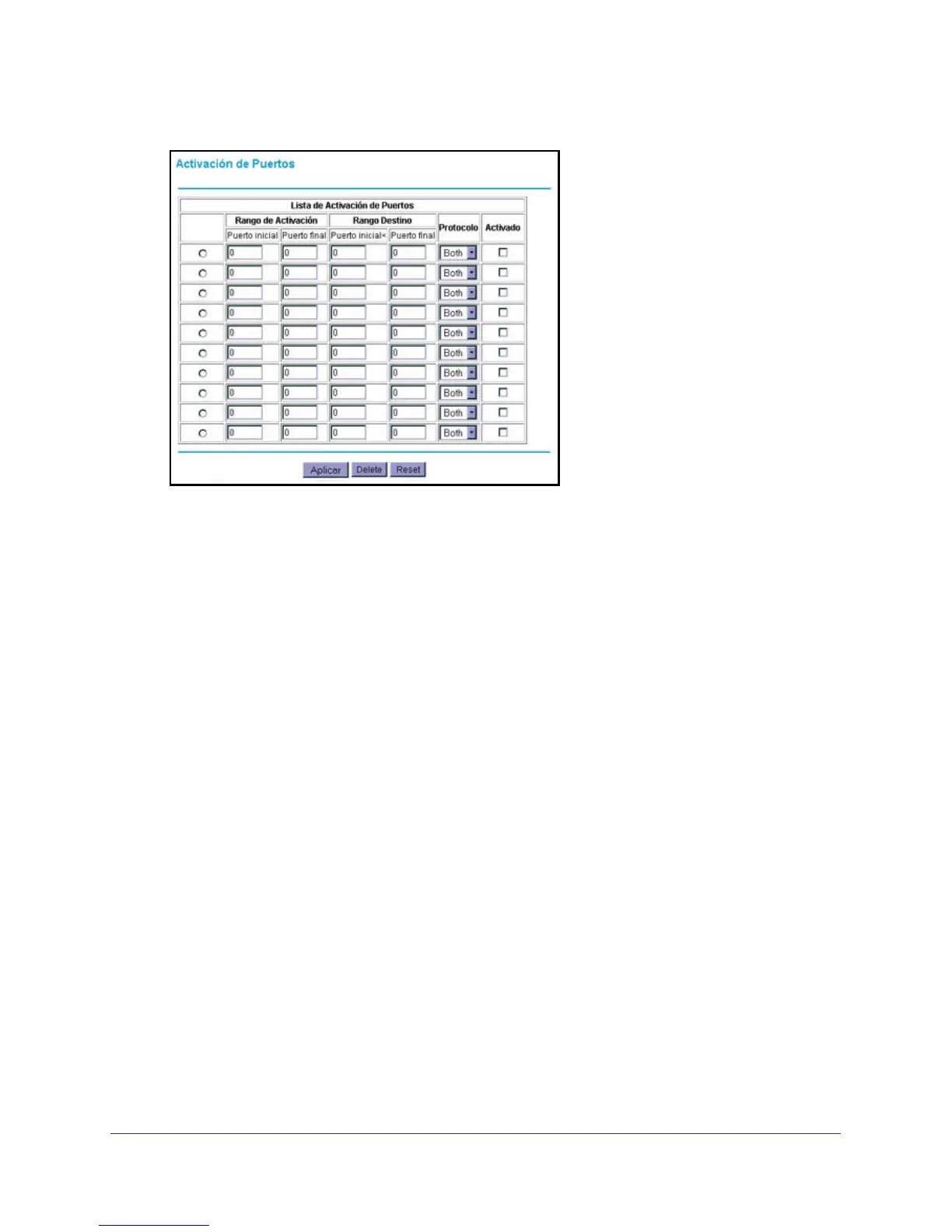

1. Select Advanced > Port Triggering.
2. For each port trigger, enter the settings in the Port Trigger List:
• Trigger Range. To specify the range of outgoing ports that will be monitored to trigger
the incoming port forwarding rule, enter the Start Port and End Port.
• Target Range. To specify the range of incoming ports that will be opened when
triggered, enter the Start Port and End Port.
• Protocol. Select the protocol for the ports:
3. Select the Enable checkbox for the port trigger.
4. Perform one of the following actions:
• Click Apply to save your settings and activate the port triggers.
• To remove a port trigger, select it’s radio button and click Delete.
• To return all trigger and target ranges to zero, click Reset.
