Wireless Cable Gateway CG3000D/CG3100D User Manual
1-2 Connecting the Gateway
v1.0, September 2009
Upstream
• Solid green. The unit is synchronized, and all four channels are in use (channel
bonding).
• Blinking. The unit is scanning for an upstream channel.
• Off. No upstream channels are locked.
Internet
• Solid green. The cable modem is online.
• Blinking. The cable modem is synchronizing with the cable provider’s CMTS.
• Off. The cable modem is offline.
LAN (
Ethernet)
• Green indicates 1,000 Mbps. Amber indicates 10/100 Mbps.
• Solid. An Ethernet device is connected and powered on.
• Blinking. Data is being transmitted or received on the Ethernet port.
• Off. No Ethernet device is detected on the Ethernet port.

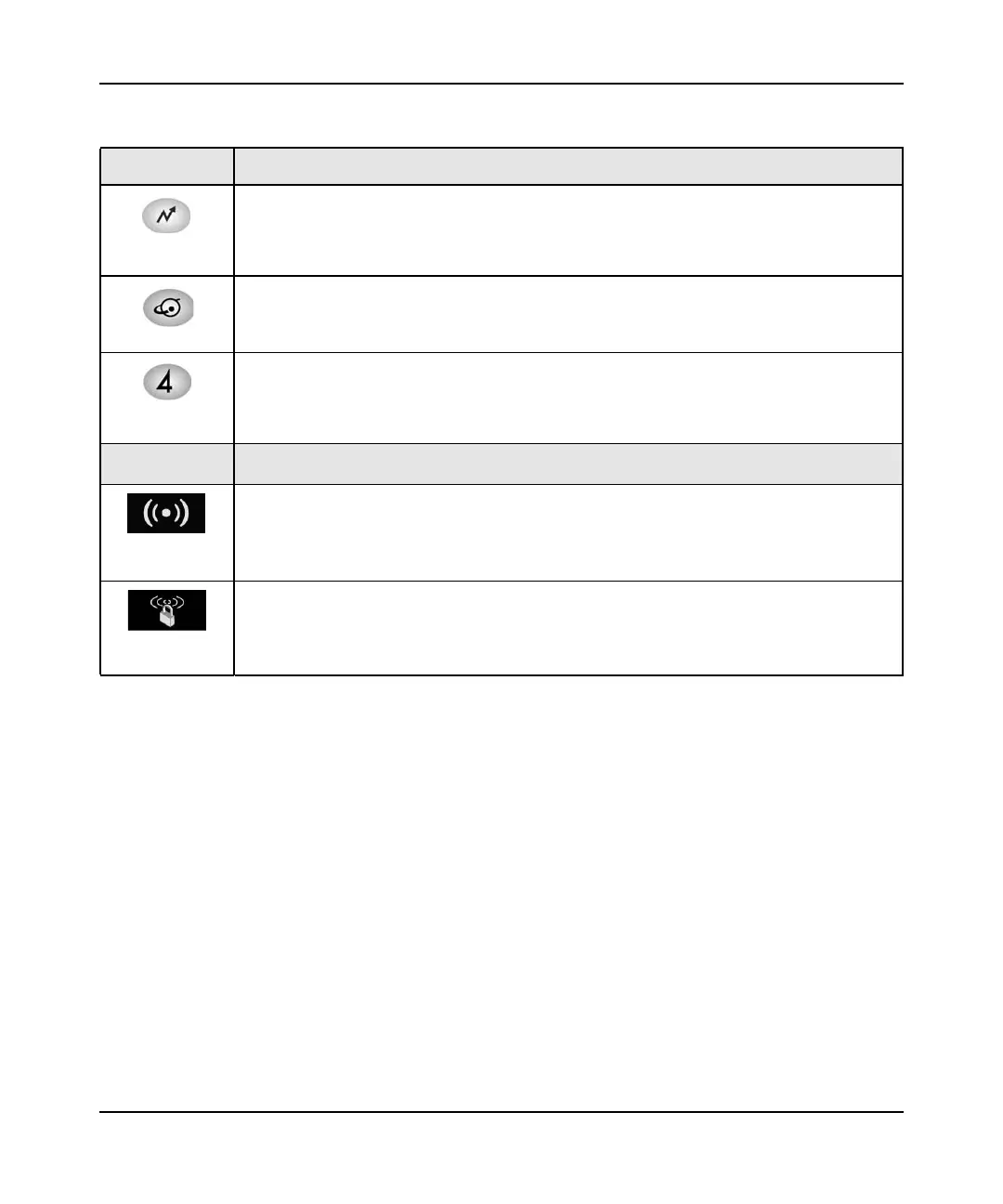

Button Description
Wireless
On/Off
Turn the wireless radio in the gateway on and off. The wireless radio is on by default. The
LED located below this button indicates if the wireless radio is on or off.
Push 'N'
Connect (WPS)
Pushing this button opens a 2-minute window for the gateway to connect with other WPS-
enabled devices. For more information, about using the WPS method to implement secu-
rity, see the Wireless Cable Gateway CG3000D/CG3100D User Manual
Table 1-1. LED and Front Panel Button Descriptions (continued)
LED Description
