N600 Wireless Dual Band Gigabit ADSL2+ Modem Router DGND3700v2

Back Panel

The back panel has the Power On/Off button and port connections shown in the figure:

4. Gigabit-Ethernet WAN port for connecting to external

6. Power On/Off button

2. USB port

5. AC power adapter input

1. ADSL line

3. Gigabit-Ethernet LAN ports

cable or fiber modem

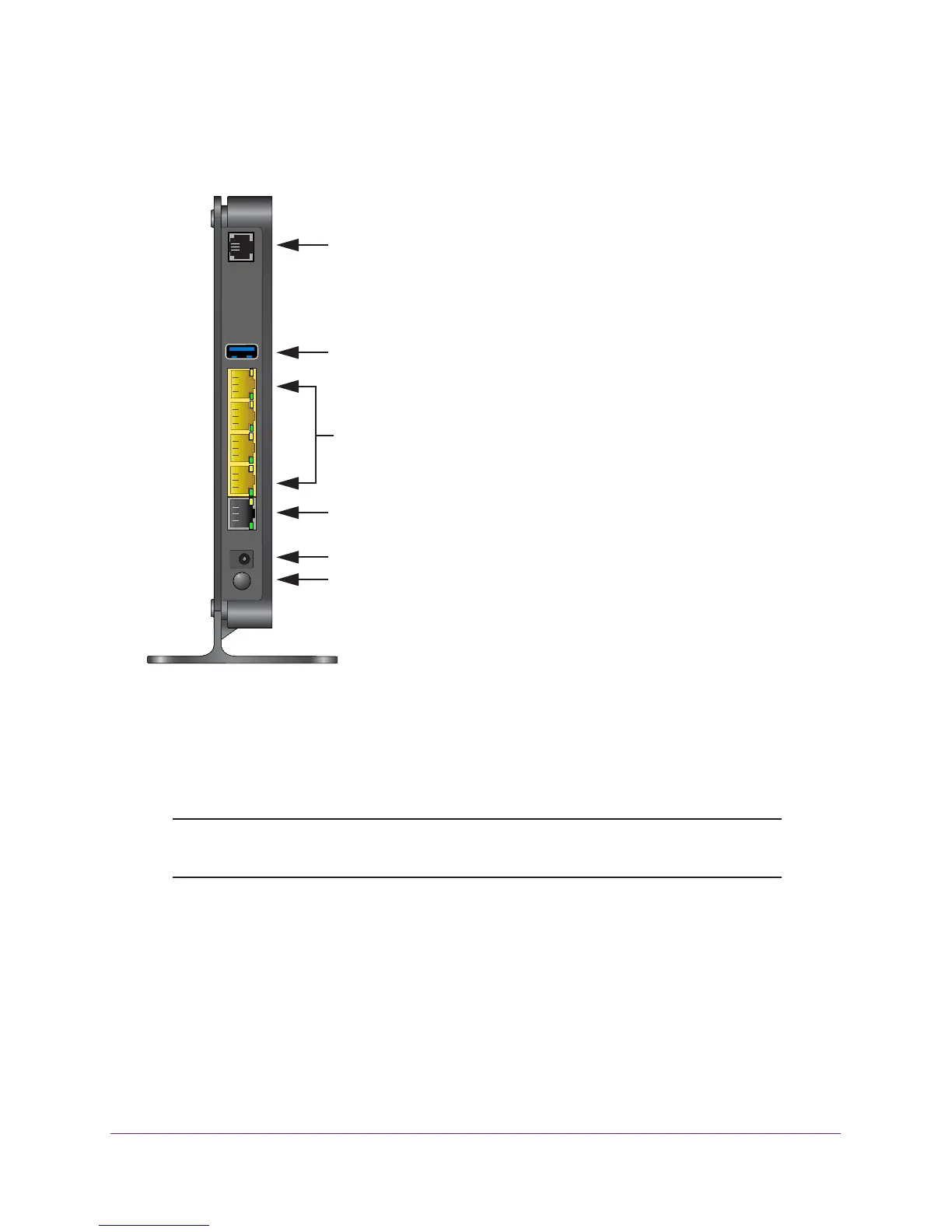

Figure 3. Back panel port connections

Viewed from top to bottom, the back panel contains the following elements:

1. RJ-1

1 asynchronous DSL (ADSL) port for connecting the wireless modem router to an

ADSL line

Note: An ADSL port is capable of sending data over an ADSL line at one

speed and receiving it at another speed.

2. USB port for connecting USB storage devices like flash drives or hard drives

3. Four Gigabit-Ethernet RJ-45 LAN ports for cabling the wireless modem router to the local

computers

4. One Gigabit-Ethernet W

AN port for connecting the wireless modem router to a fiber or

cable modem
