NETGEAR EAX15 User Manual

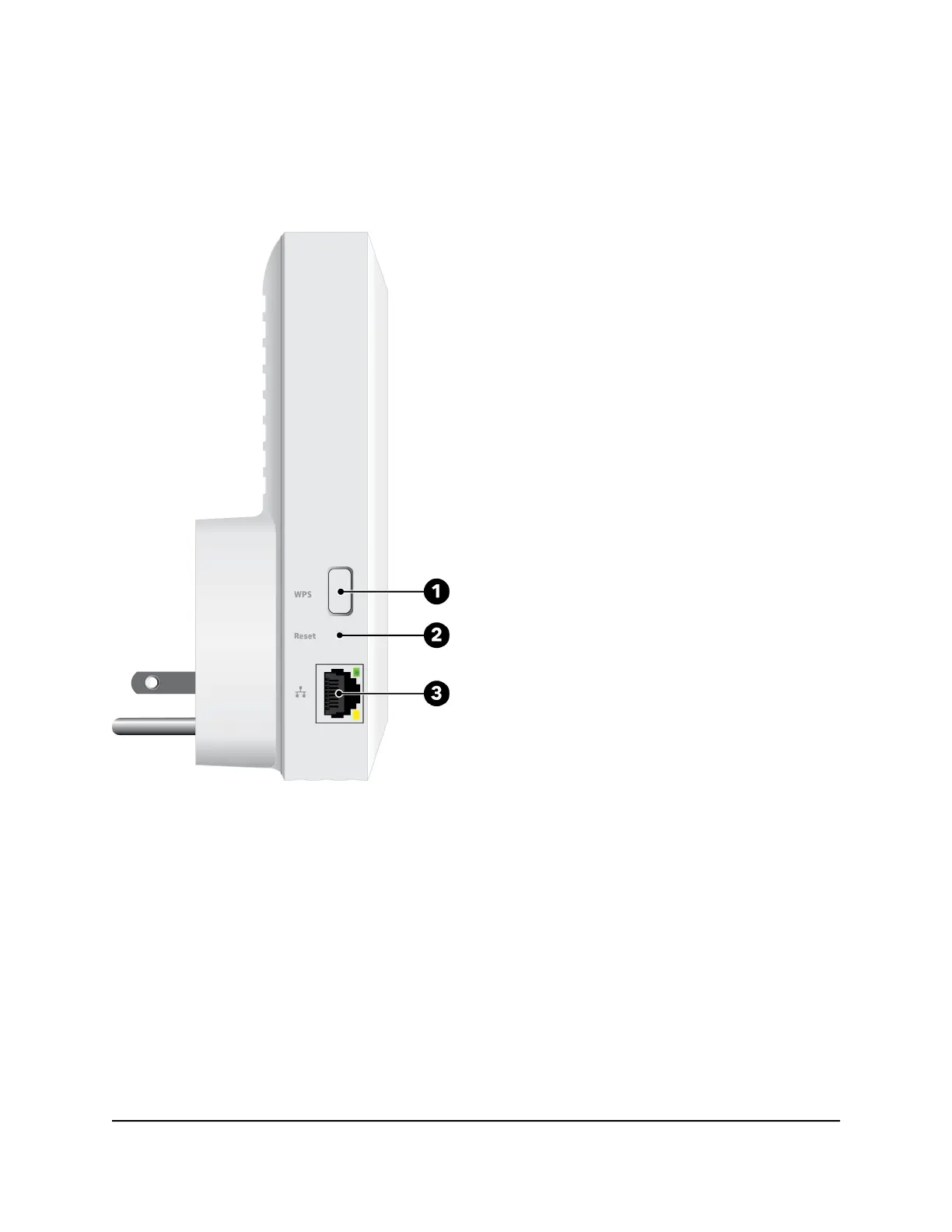

Side panel
The side panel of the extender provides a WPS button, Reset button, and Ethernet port.
Figure 3. Back panel
The side panel contains the following components:
1. WPS button. Pressing the WPS button allows the extender to connect to your existing
WiFi network through WPS. You can also connect WPS-enabled devices to the
extender using the WPS button.
2. Reset button. Pressing this button resets the extender. If the Reset button is pressed
for at least seven seconds, the Power LED blinks amber, and the extender returns
to its factory settings.
3. Ethernet port. Use an Ethernet cable to connect the Gigabit Ethernet RJ-45 LAN
port to a device that has a LAN Ethernet port.
User Manual9Overview
AX1800 4-Stream WiFi 6 Mesh Extender

NETGEAR EAX15 Specifications

General

2.4 GHz	Yes
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate (5 GHz)	1800 Mbit/s
Maximum data transfer rate (2.4 GHz)	600 Mbit/s
Power over Ethernet (PoE)	No
USB 2.0 ports quantity	-
Ethernet LAN (RJ-45) ports	1
Product color	White
Antenna type	Internal
Antennas quantity	2
Type	Network repeater
Maximum transfer distance	- m
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	68.4 mm
Width	149 mm
Height	52.3 mm
Weight	222 g
