NETGEAR EAX20 User Manual

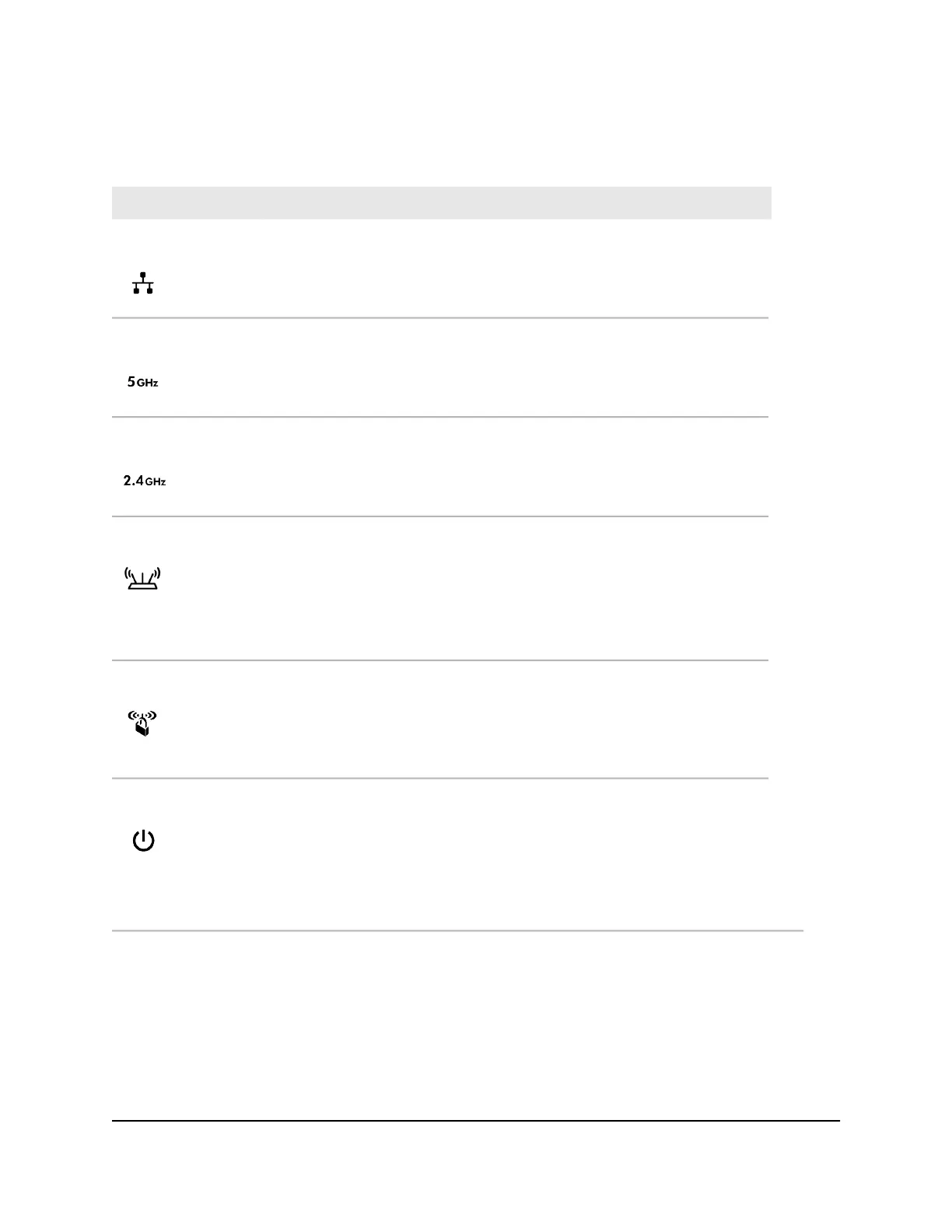

Table 1. LED descriptions
DescriptionLED
•
Solid white. An Ethernet device is connected to an Ethernet port.
•
Off. An Ethernet device is not connected to the extender.
Ethernet LED
•
Solid white. The extender’s 5 GHz WiFi radio is operating.
•
Off. The extender’s 5 GHz WiFi radio is off.
5 GHz LED
•
Solid white. The extender’s 2.4 GHz WiFi radio is operating.
•
Off. The extender’s 2.4 GHz WiFi radio is off.
2.4 GHz LED
This LED indicates the WiFi connection between the extender and the router.
•
Solid white. Best connection.
•
Solid amber. Good connection.
•
Solid red. Poor connection.
•
Off. No connection.
Router Link LED
•
Blinking white. A WPS connection is being established.
•
Solid white. The extender network is enabled with WiFi security (either
WPA, WPA2, or WPA3 WiFi security).
•
Off. The extender network is enabled without WiFi security.
WPS LED
•
Solid amber. The extender is booting.
•
Solid white. The extender is powered on.
•
Blinking amber. The extender is resetting to its factory default settings.
•
Blinking white. The firmware is corrupted.
•
Off. The extender is powered off.
Power LED
User Manual8Overview
AX1800 4-Stream WiFi Mesh Extender

NETGEAR EAX20 Specifications

General

Type	Network repeater
WPS push button	Yes
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum transfer distance	- m
Package type	Box
Package depth	290 mm
Package width	210 mm
Package height	110 mm
Package weight	990 g
Master (outer) case width	242 mm
Master (outer) case height	380 mm
Master (outer) case length	477 mm
Master (outer) case weight	5370 g
Quantity per master (outer) case	4 pc(s)
Modulation	1024-QAM
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Cabling technology	10/100/1000Base-T(X)
Security algorithms	128-bit AES, WPA-PSK
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n
Ethernet LAN (RJ-45) ports	4
Product color	Black

Weight and Dimensions

Depth	169.5 mm
Width	241.7 mm
Height	63.4 mm
Weight	504.5 g
