NETGEAR EX6120 User Manual

Extender Network Settings
25
AC1200 Dual Band WiFi Range Extender

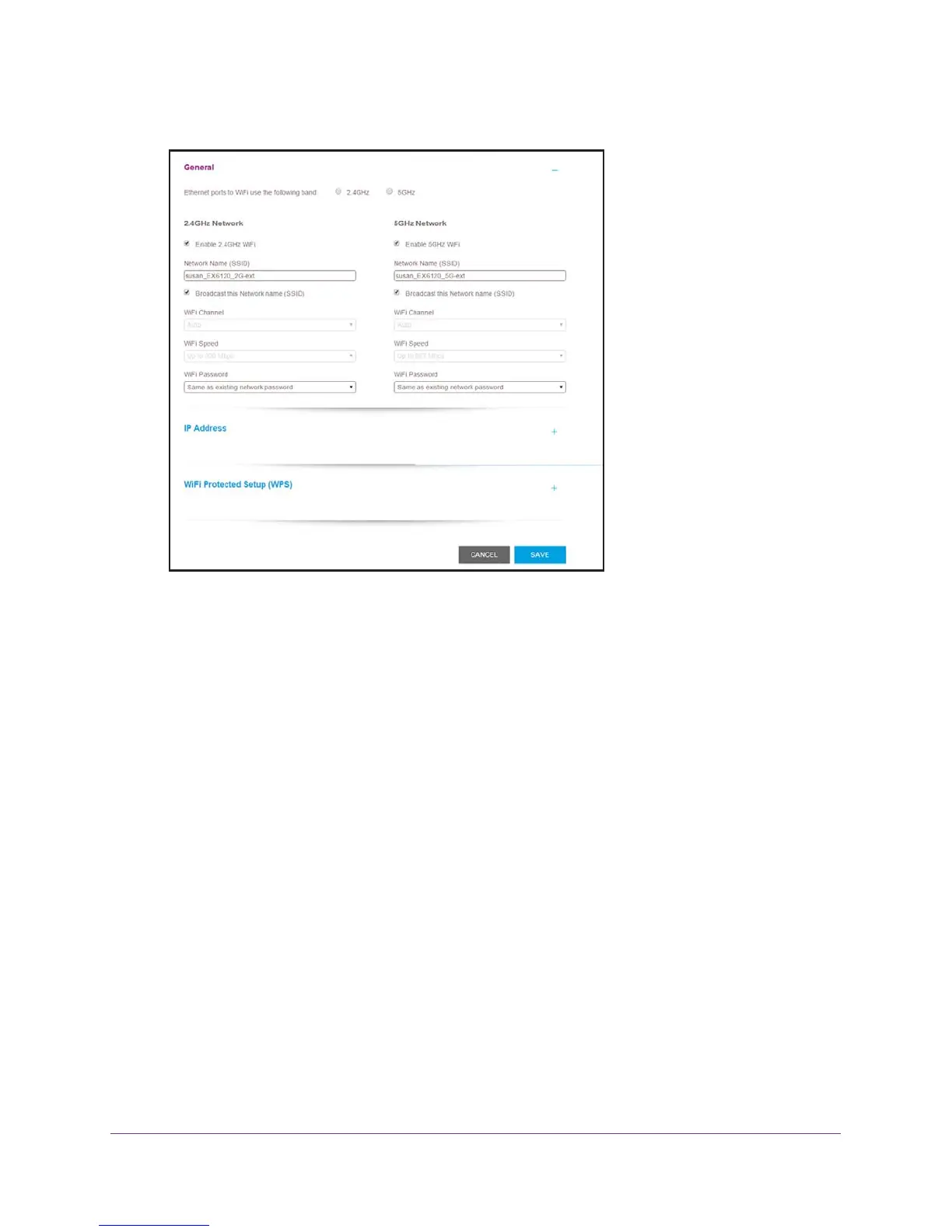

5. Select Settings > Wireless.
6. In each WiFi Speed menu, select a speed.
7. Click the SA
VE button.
Your settings are saved.
Use WPS to Add a Computer to the Extender’s WiFi
Network
WPS (WiFi Protected Setup) lets you connect a computer or WiFi device to the extender’s
network without entering the WiFi network passphrase or key. Instead, you use a WPS button
or enter a PIN to connect.
If you use the push button method, the WiFi device that you are trying to connect must
include a physical button or a software button. If you use the PIN method, you must know the
PIN of the WiFi device that you are trying to connect.
WPS supports WPA and WPA2 WiFi security. If your extender network is open (no WiFi
security is set), connecting with WPS automatically sets WP
A + WPA2 WiFi security on the
extender network and generates a random passphrase. You can view this passphrase on the
WiFi Settings page (for more information, see View WiFi Settings on page 21).
For information about using WPS to connect the extender to a WiFi network during setup,
see Use the Extender in Access Point Mode on page 14.

NETGEAR EX6120 Specifications

General

Type	Network transmitter
Browser supported	Microsoft Internet Explorer 8.0, Firefox 20, Safari 5.1, Google Chrome 25.0
Maximum transfer distance	- m
LED indicators	Yes
Antennas quantity	2
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100/1000Base-T(X)
Security algorithms	WEP, WPA, WPA2-PSK, WPS
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN (RJ-45) ports	1
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	38 mm
Width	74 mm
Height	122 mm
Weight	293 g
