NETGEAR EX6120 User Manual

Extender Network Settings
28
AC1200 Dual Band WiFi Range Extender
3. When prompted, enter your email address and password.
4. Click the Menu icon
.
The extender menu displays.

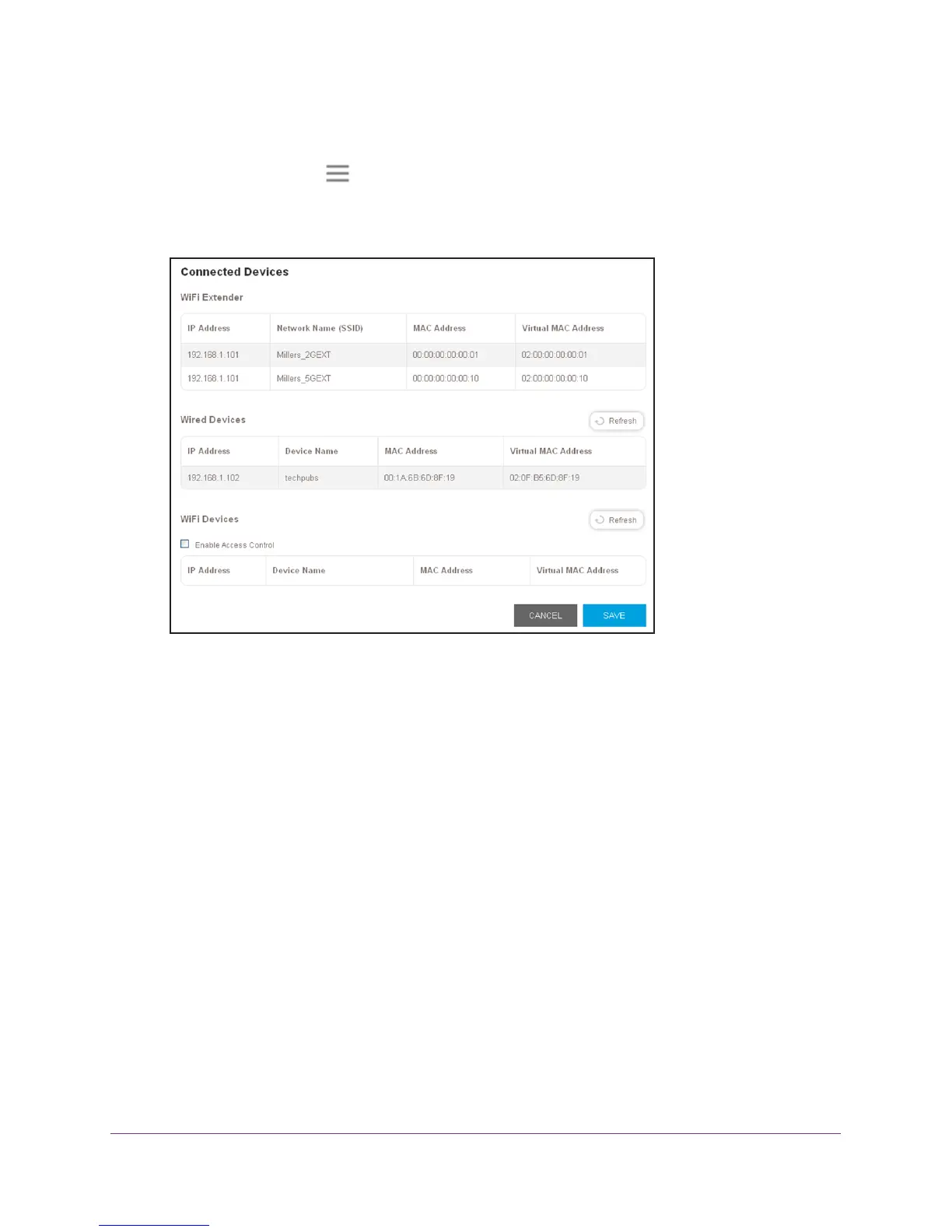

5. Select Settings > Connected Devices.
6. In the WiFi Devices section, select the Enable Access Control check box.
The WiFi devices table displays the names and MAC addresses of WiFi devices that are
connected to the extender.
7. Select the Deny check box for the device.
8. Click the SA
VE button.
Your settings are saved and that device cannot connect to the extender’s WiFi network.
Set Up an Access Schedule
You can control access to all users during specific periods of the day. You can set up an
access schedule that prevents Internet access through the extender network based on the
times that you set.
 To set up an access schedule:
1. On a computer or WiFi device that is connected to the extender network, launch a web
browser
.
2. In the address field of your browser
, enter www.mywifiext.net.
3. When prompted, enter your email address and password.

NETGEAR EX6120 Specifications

General

Type	Network transmitter
Browser supported	Microsoft Internet Explorer 8.0, Firefox 20, Safari 5.1, Google Chrome 25.0
Maximum transfer distance	- m
LED indicators	Yes
Antennas quantity	2
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100/1000Base-T(X)
Security algorithms	WEP, WPA, WPA2-PSK, WPS
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN (RJ-45) ports	1
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	38 mm
Width	74 mm
Height	122 mm
Weight	293 g
