Extender Network Settings
30
AC1200 Dual Band WiFi Range Extender

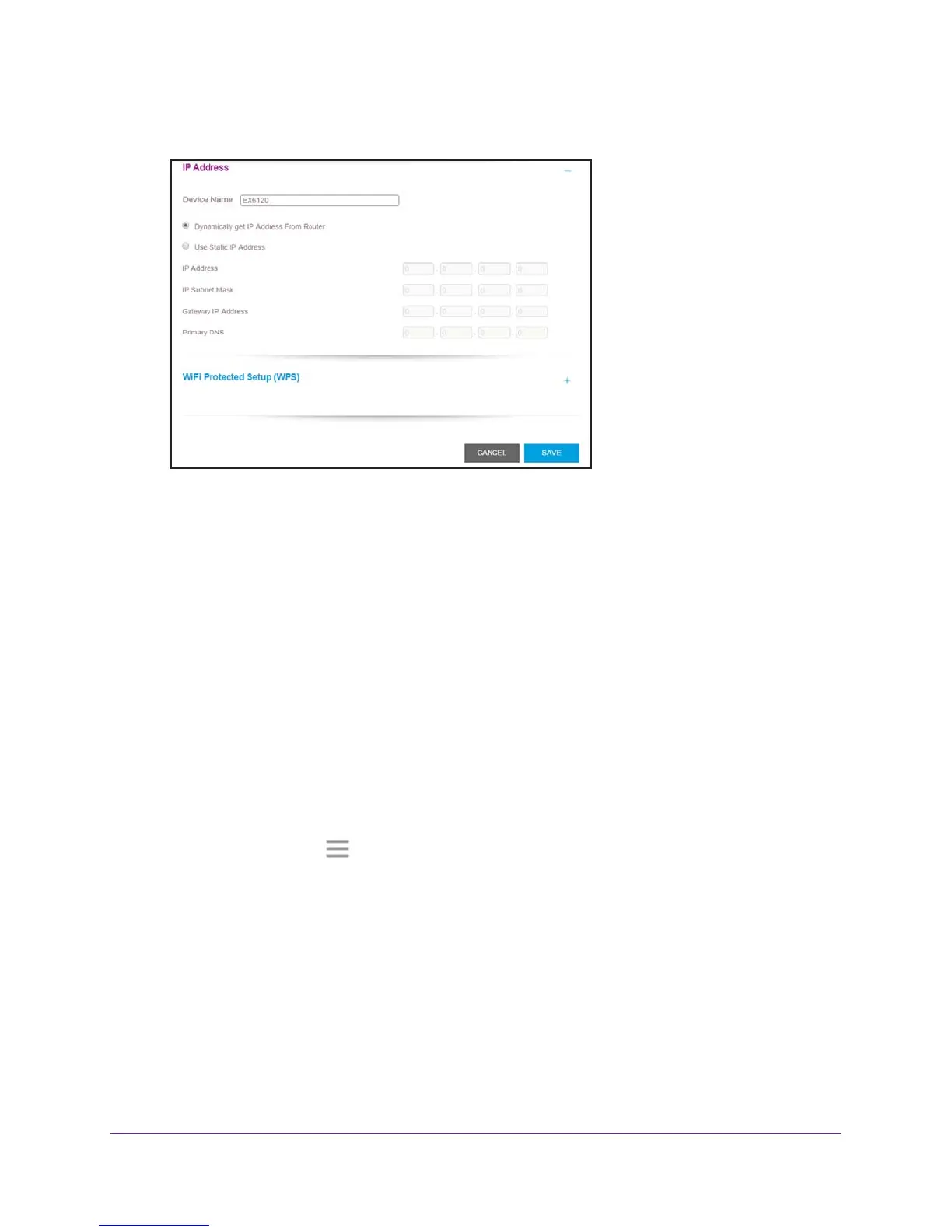

6. Scroll down and click the IP Address heading.
7. In the Device Name field, type a name.
8. Click the SA
VE button.
Your settings are saved.
Set Up the Extender to Use a Static IP Address
The extender comes set up to use a dynamic IP address, which is the correct setting for most
home networks.
 To set up the extender to use a static IP address:
1. On a computer or WiFi device that is connected to the extender network, launch a web
browser
.
2. In the address field of your browser
, enter www.mywifiext.net.
3. When prompted, enter your email address and password.
4. Click the Menu icon
.
The extender menu displays.
5. Select Settings > W
ireless Settings.
The WiFi Settings page displays.

Table of Contents

Other manuals for NETGEAR EX6120

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the NETGEAR EX6120 and is the answer not in the manual?

NETGEAR EX6120 Specifications

General IconGeneral
TypeNetwork transmitter
Browser supportedMicrosoft Internet Explorer 8.0, Firefox 20, Safari 5.1, Google Chrome 25.0
Maximum transfer distance- m
LED indicatorsYes
Antennas quantity2
Wi-Fi standards802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology10/100/1000Base-T(X)
Security algorithmsWEP, WPA, WPA2-PSK, WPS
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN (RJ-45) ports1
Harmonized System (HS) code85176990
Weight and Dimensions IconWeight and Dimensions
Depth38 mm
Width74 mm
Height122 mm
Weight293 g
