NETGEAR Nighthawk AC1900 R7000 User Manual

4
b. Wait for the Power LED on the front panel to light amber
and turn white. If no LEDs are lit, press the Power On/Off
button on the rear panel of the router.

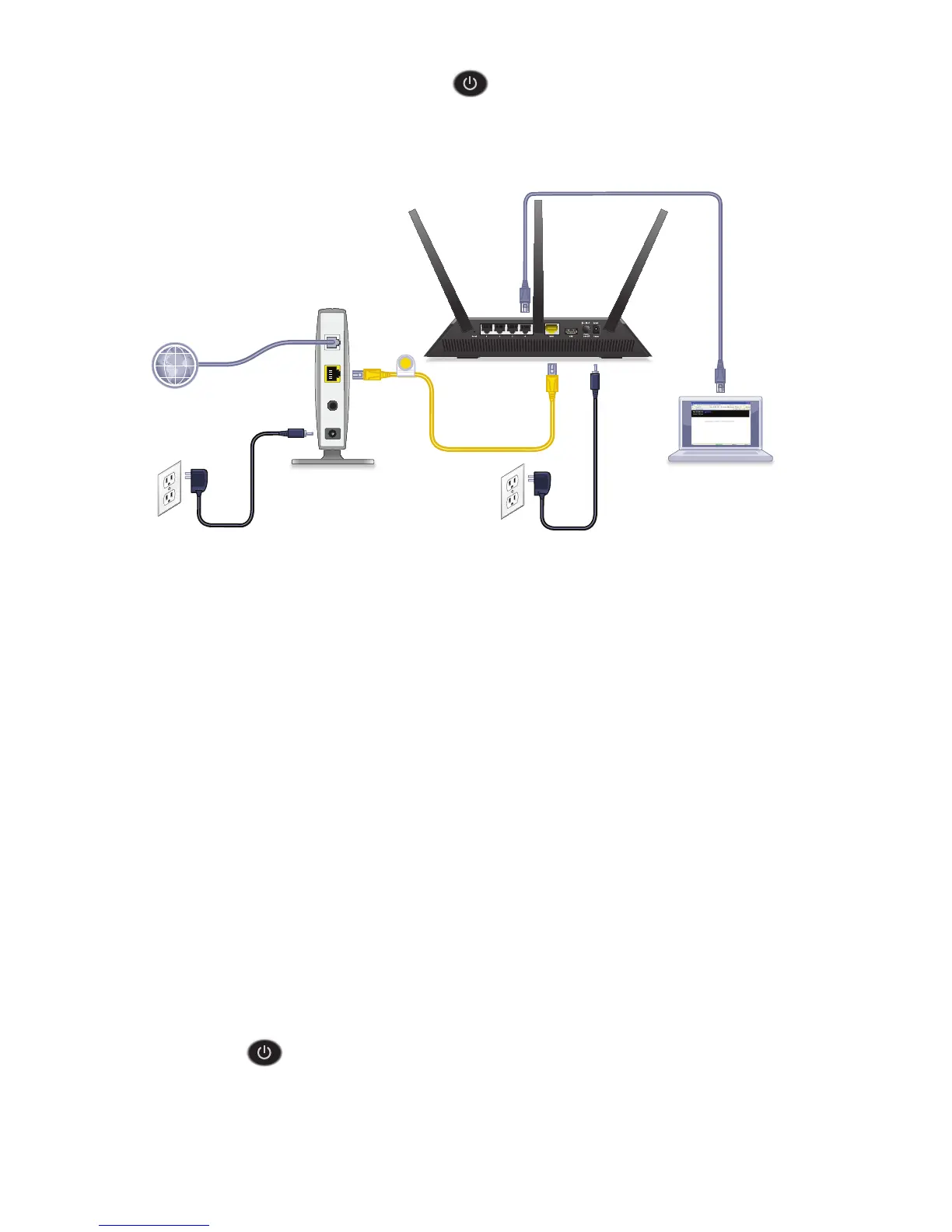

5. Connect a computer.
You can use an Ethernet cable or connect with WiFi:
• For a wired connection, use an Ethernet cable (not included)
to connect your computer to a black Ethernet LAN port on
your router.
• To connect with WiFi, use the WiFi settings on the router
label.
6. Launch a web browser.
The first time that you connect to the router, the genie screen
displays. Follow the genie steps to connect to the Internet.
If the genie screen does not display, try the following:
• Close and reopen the browser.
• Make sure that your computer is connected to one of the four
black LAN Ethernet ports on the router, or that you are
connected to your WiFi network.
• Make sure that the router has full power, and that its Power
LED is lit.

NETGEAR Nighthawk AC1900 R7000 Specifications

General

WiFi Performance	AC1900 (600 + 1300 Mbps)
WiFi Range	Very large homes
Beamforming	Yes
Antennas	3 external antennas
Dynamic QoS	Yes
VPN Support	Yes
Guest Network	Yes
Parental Controls	Yes
Dimensions	11.22 x 7.26 x 1.97 in (285 x 184.5 x 50 mm)
WiFi Technology	802.11ac
Processor	1GHz Dual Core
Ethernet Ports	5 (1 WAN & 4 LAN) Gigabit Ethernet ports
USB Ports	1 x USB 3.0, 1 x USB 2.0
Memory	128 MB Flash and 256 MB RAM
Security	Double Firewall Protection (SPI and NAT)
Weight	1.65 lb (750 g)
