NETGEAR Orbi User Manual

Specify Your Internet Settings
27
Orbi High-Performance AC3000 Tri-band WiFi System

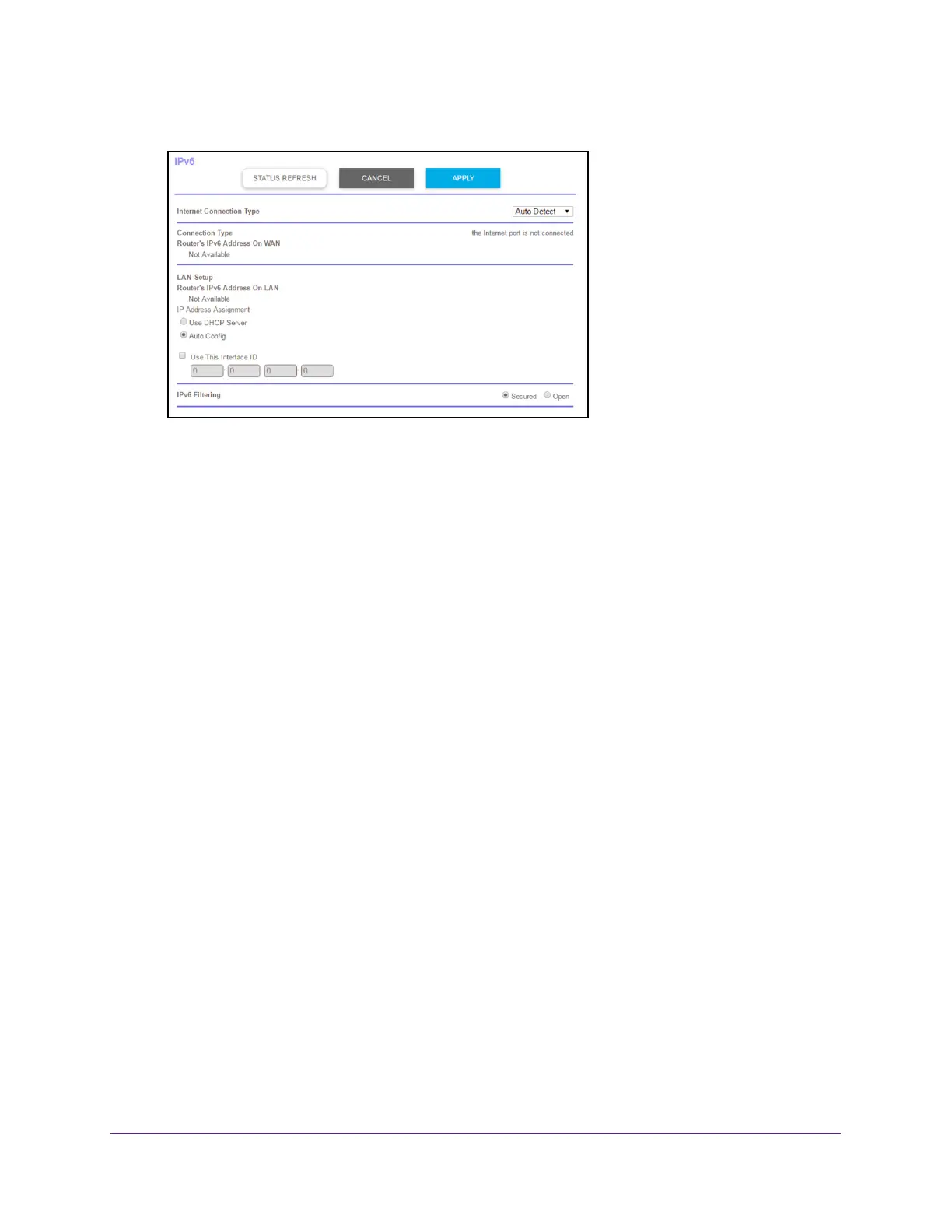

5. From the Internet Connection Type menu, select Auto Detect.
The router automatically detects the information in the following fields:
• Connection T
ype. This field indicates the connection type that is detected.
• Router
’s IPv6 Address on WAN. This field shows the IPv6 address that is acquired
for the router’s WAN (or Internet) interface. The number after the slash (/) is the length
of the prefix, which is also indicated by the underline (_) under the IPv6 address. If no
address is acquired, the field displays Not Available.
• Router
’s IPv6 Address on LAN. This field shows the IPv6 address that is acquired
for the router’s LAN interface. The number after the slash (/) is the length of the prefix,
which is also indicated by the underline (_) under the IPv6 address. If no address is
acquired, the field displays Not Available.
6. Select
an IP Address Assignment radio button:
• Use DHCP Server.
This method passes more information to LAN devices, but some
IPv6 systems might not support the DHCv6 client function.
• Auto Config.
This is the default setting.
This setting specifies how the router assigns IPv6 addresses to the devices on your home
network (the LAN).
7. (Optional) Select the Use This Interface ID check box and specify the interface ID to be
used for the IPv6 address of the router’
s LAN interface.
If you do not specify an ID here, the router generates one automatically from its MAC
address.
8. Click the Apply button.
Your settings are saved.

NETGEAR Orbi Specifications

General

Parental Controls	Yes
Guest Network	Yes
Beamforming	Yes
Coverage	Up to 5, 000 sq. ft.
Ethernet Ports	4 Gigabit Ethernet ports
Memory	512MB NAND flash
Security	WPA2
Compatibility	Works with
