NETGEAR R6080 User Manual

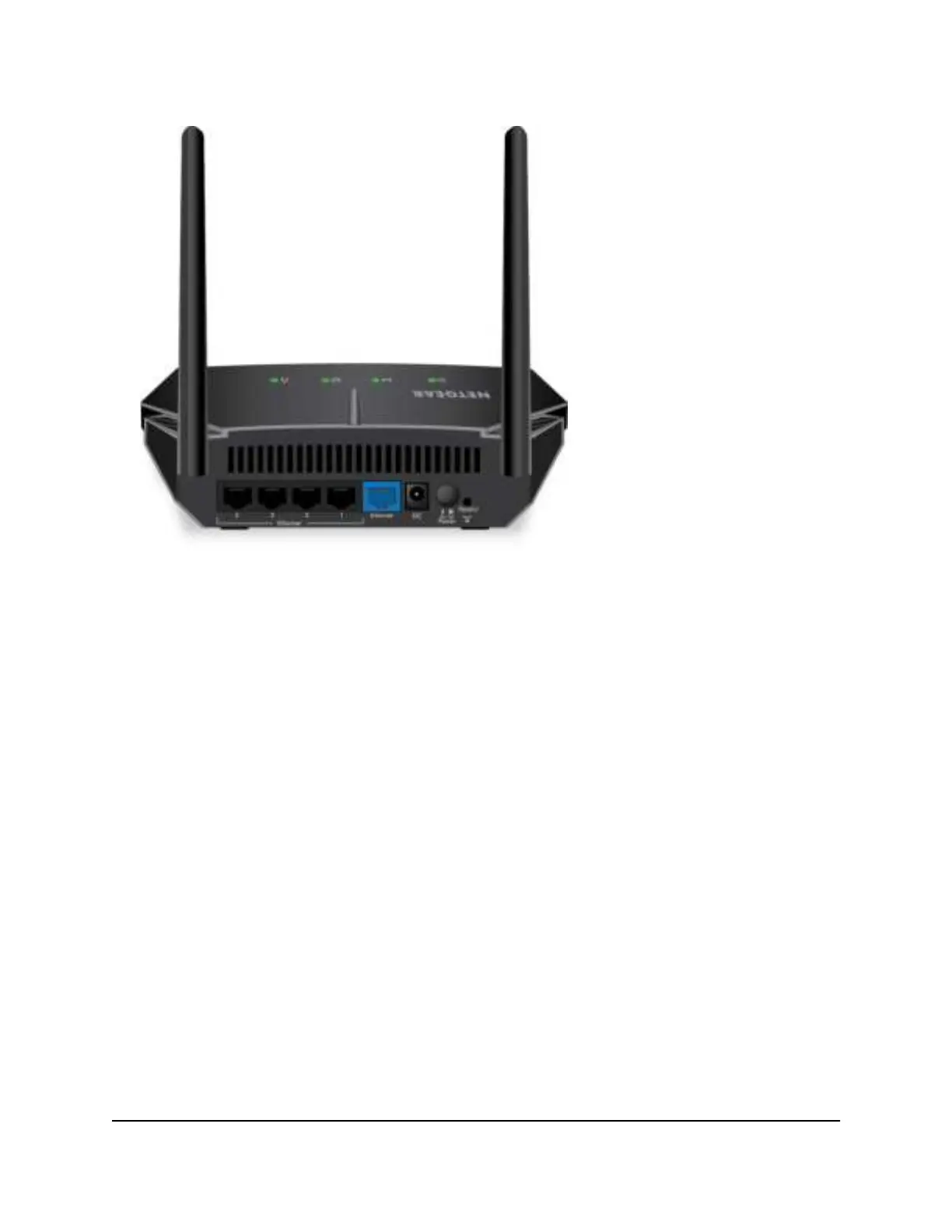

Figure 2. Router back panel
In addition to the two antennas, the back panel contains the following components:
•
Reset/WPS button. This button can be used to reboot and reset the router and
connect WPS-enabled devices to the router depending on how long the button is
pressed:
-
Reboot the router. Press the button for less than 5 seconds to reboot the router.
-
Connect WPS-enabled devices. Press the button for about 5 to 10 seconds until
the WiFi LED blinks amber.
-
Reset the router to its factory default settings. Press the button for more than
10 seconds until all the LEDs blink green.
•
Ethernet LAN ports. Use the four Fast Ethernet RJ-45 LAN ports to connect the
router to LAN devices.
•
Internet WAN port. Use the blue Fast Ethernet RJ-45 WAN port to connect the
router to a modem.
•
Power On/Off button. Press the Power On/Off button to provide power to the
router.
•
DC power connector. Connect the power adapter that came in the product package
to the DC power connector.
User Manual12Hardware Overview of the
Router
AC1000 WiFi Router Model R6080

NETGEAR R6080 Specifications

General

Ethernet WAN	Yes
SIM card slot	-
WAN connection type	RJ-45
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	700 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	4
Product type	Tabletop router
Product color	Black
Antennas quantity	2
Power source type	DC
Cables included	LAN (RJ-45)

Weight and Dimensions

Depth	136.5 mm
Width	185 mm
Height	46 mm
Weight	250 g
