NETGEAR R6080 User Manual

packets that are sent between the IPTV device and the router’s Internet port from being
processed through the router’s Network Address Translation (NAT) service.
You can add VLAN tag groups to a bridge and assign VLAN IDs and priority values to
each VLAN tag group.
To add a VLAN tag group and enable the bridge:
1.
Launch a web browser from a computer or mobile device that is connected to the
network.
2.
Enter http://www.routerlogin.net.
A login window opens.
3. Enter the router user name and password.
The user name is admin. The default password is password. The user name and
password are case-sensitive.
The BASIC Home page displays.
4.

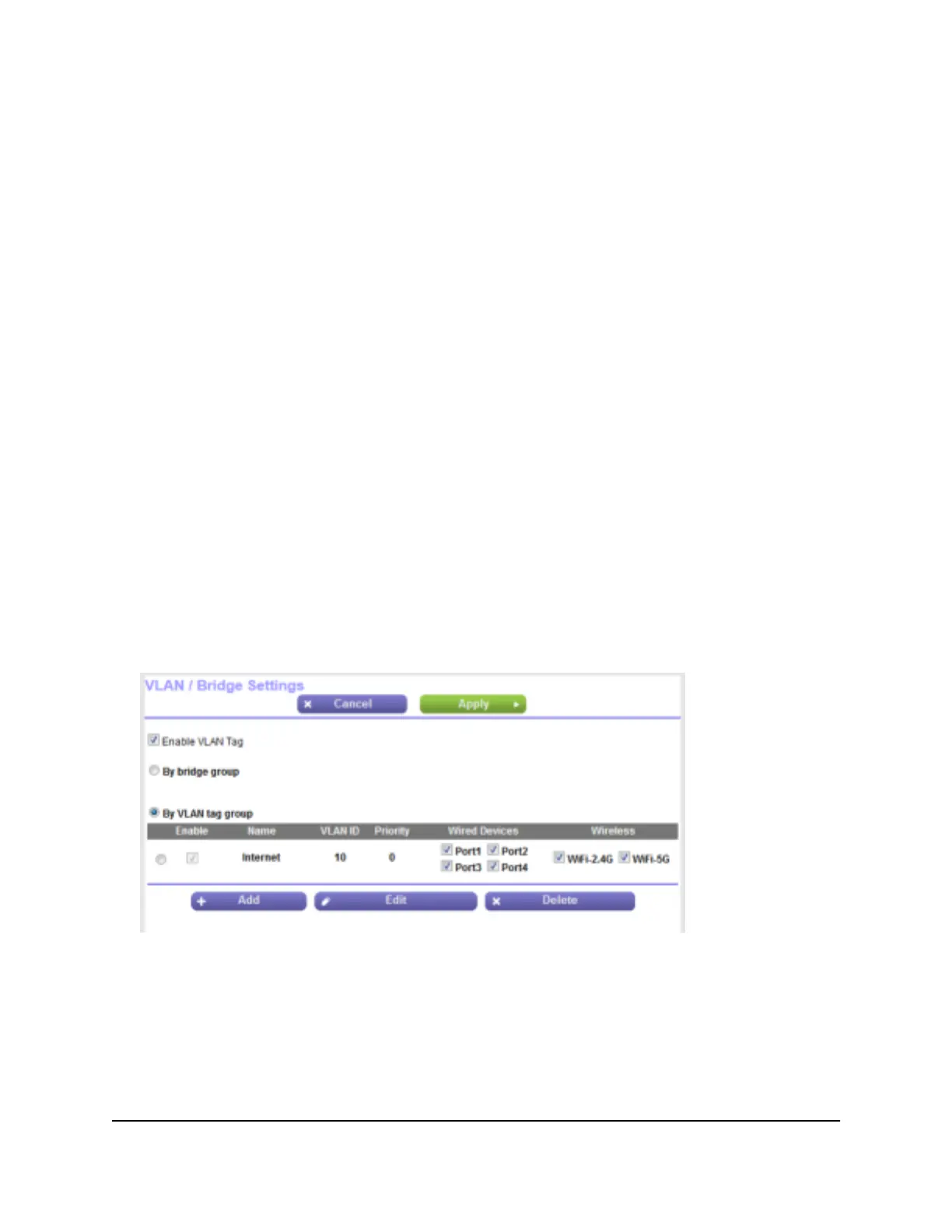

Select ADVANCED > Advanced Setup > VLAN / Bridge Settings.
The VLAN / Bridge Settings page displays.
5. Select the Enable VLAN Tag check box.
The page expands.
6. Select the By VLAN tag group radio button.
The router includes a default VLAN tag group with the name Internet.
7. Click the Add button.
The page adjusts.
8.
Specify the settings as described in the following table.
User Manual88Manage the WAN and LAN
Network Settings
AC1000 WiFi Router Model R6080

NETGEAR R6080 Specifications

General

Ethernet WAN	Yes
SIM card slot	-
WAN connection type	RJ-45
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	700 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	4
Product type	Tabletop router
Product color	Black
Antennas quantity	2
Power source type	DC
Cables included	LAN (RJ-45)

Weight and Dimensions

Depth	136.5 mm
Width	185 mm
Height	46 mm
Weight	250 g
