Internet port. One Gigabit Ethernet RJ-45 WAN port to connect the router to an
Internet modem such as a cable modem or DSL modem.
•
USB port. Use the USB 3.0 port to connect the router to a USB storage device.
•
Reset button. Pressing the Reset button resets the router. If the Reset button is
pressed for at least 10 seconds and the Power LED blinks amber and the router
returns to its factory settings.
•
DC power connector. Connect the power adapter that came with your router to
the DC power connector.
•
Power On/Off button. Press the Power On/Off button to provide power to the
router.
Router Label
The router label on the bottom panel lists the login information, WiFi network name
(SSID) and password (network key), serial number, and MAC address of the router.
NOTE:
1. REFER TO NETGEAR SPEC. DOC-00093 FOR COLOR
TOLERANCES.
2. INK COLOR IS SHOWN TO THE RIGHT.
3. DIE LINES ARE MAGENTA COLOR AND DO NOT PRINT.
4. MAC & SERIAL NUMBERS TO BE PRINTED BY THE ODM.
5. See NTGR DOC-00112 for SN standard.
6. NTGR SN and MAC address barcode to be encoded AIM
USS Code39 and include printed characters below
barcodes.
7. INSURE COUNTRY OF ORIGIN IS CORRECT.
A. IF COUNTRY OF ORIGIN IS PRE-PRINTED, UNHIDE
THE APPROPRIATE COUNTRY OF ORIGIN LAYER AND
INCLUDE COUNTRY OF ORIGIN ON LABEL.
B. IF COUNTRY OF ORIGIN IS POST-PRINTED USING A
THERMAL PRINTER (OR EQUIVALENT), OMIT TEXT
FROM ARTWORK (USE LAYERS).

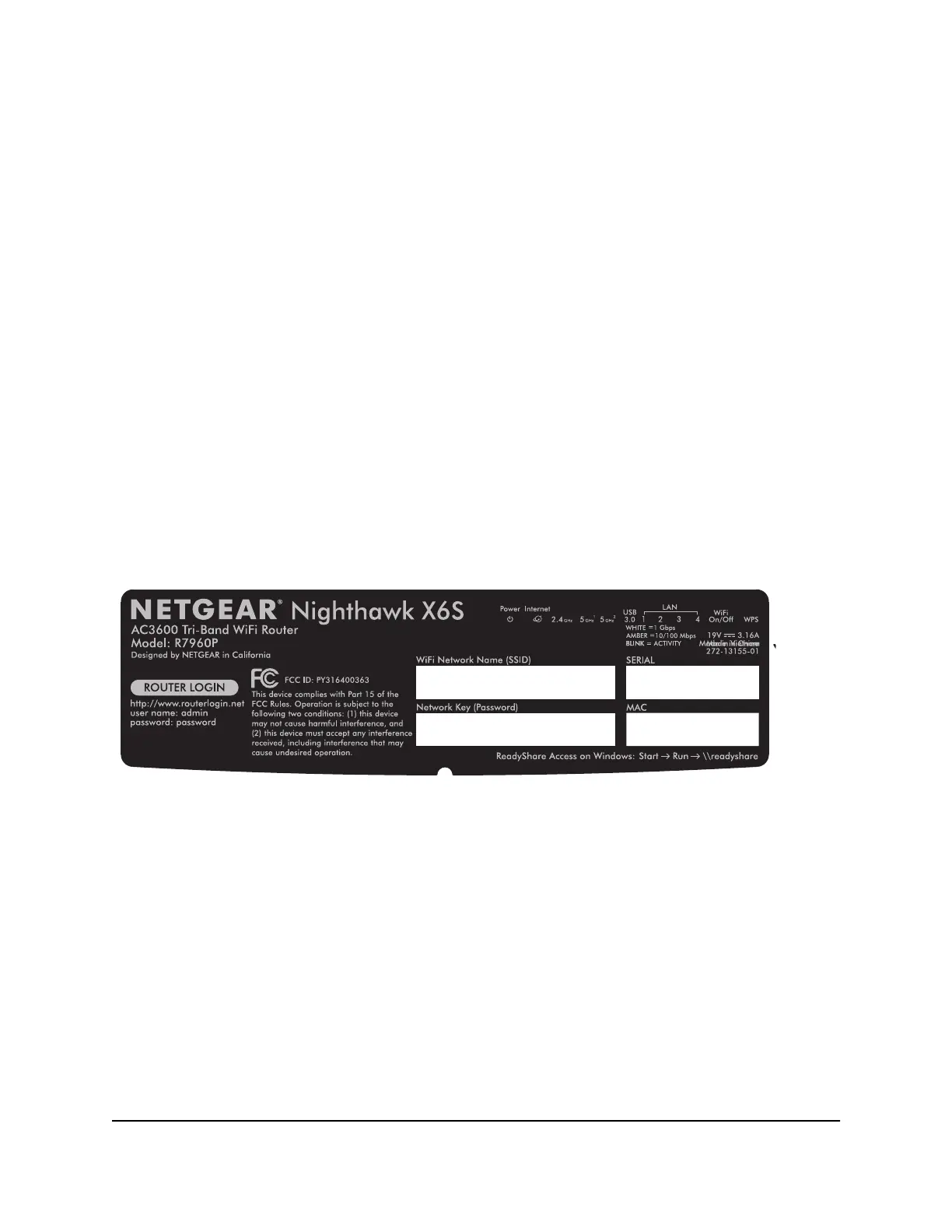

Figure 3. Router label
Position the Router
The router lets you access your network anywhere within the operating range of your
WiFi network. However, the operating distance or range of your WiFi connection can
vary significantly depending on the physical placement of the router. For example, the
thickness and number of walls the WiFi signal passes through can limit the range.
Additionally, other WiFi access points in and around your home might affect your router’s
signal. WiFi access points are routers, repeaters, WiFi range extenders, and any other
device that emits a WiFi signal for network access.
User Manual13Hardware Setup
Nighthawk X6S AC3600 Tri-Band WiFi Router Model R7960P
