Orbi router overview
The following sections are an overview of the Orbi router hardware features and LED
behavior.
Orbi router hardware features
The following figures shows the Orbi router hardware features.

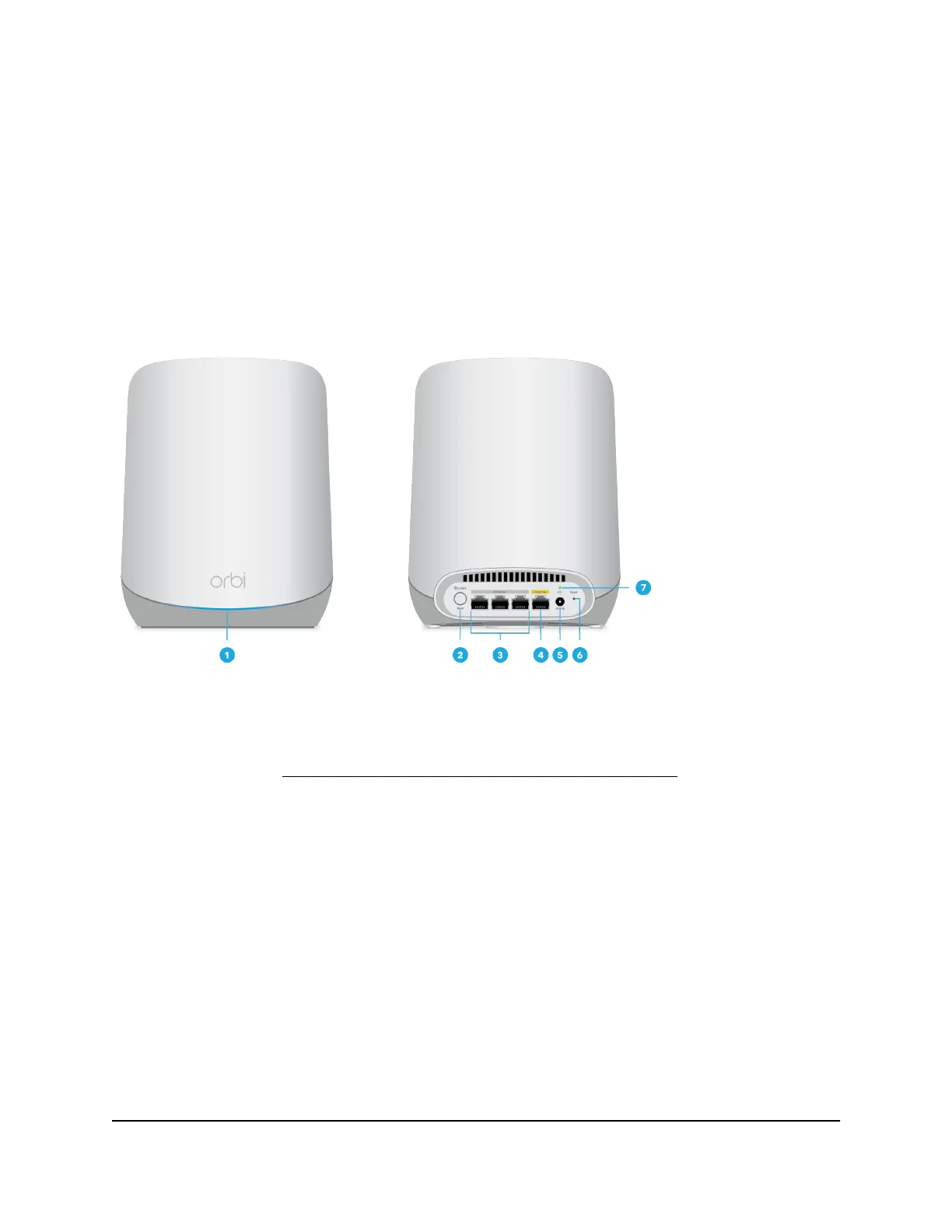

Figure 1. Orbi router front and back views
1. Router LED: Use the LED on the front of the router to determine its status. For more
information, see Orbi router front LED and Power LED behavior on page 9.
2. Sync button: Use the Sync button to connect a satellite to the router.
3. Ethernet ports 1–3: You can connect a LAN device to each of the three Gigabit
Ethernet RJ-45 LAN ports.
4. Internet port. Connect your modem to this port.
5. Power connector: Connect the power adapter that came with your router to this
port.
User Manual8Overview
Orbi Tri-band Mesh WiFi 6 System
