Model RT328 and Model RH348 ISDN Routers Installation Giude
Rear Panel

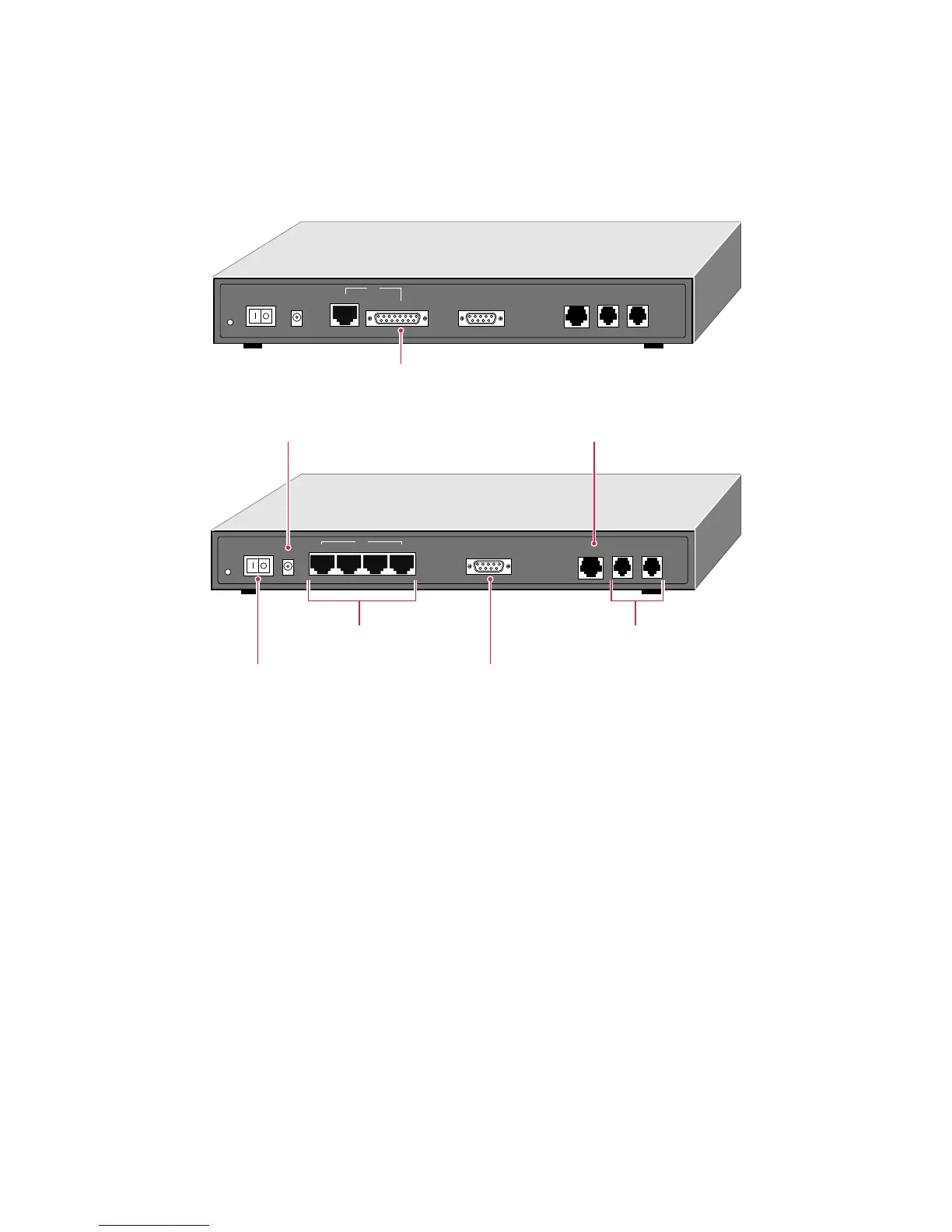

Refer to this diagram to identify all of the ports on the router when you attempt to make any
connections. The Model RT328 router has an AUI port and one UTP LAN port. The Model
RH348 router has four UTP LAN ports. Otherwise, the rear panels are identical.
AUI
LAN
POWER
16VAC
UTP
MGR
ISDN-U PHONE 1 PHONE 2
POWER
16VAC
4321
MANAGER
ISDN PHONE 1 PHONE 2
LAN
Rear Panel of the Model RT328 Router
Rear Panel of the Model RH348 Router
Power switch
AC adapter outlet
RS-232
Manager port
AUI port
ISDN port
Phone
ports
UTP LAN
ports
