NETGEAR S350 Series Hardware Installation Guide

Hardware overview of model GS308T
Model GS308T provides eight 10/100/1000BASE-T RJ-45 ports.
Model GS308T: Front panel with ports and LEDs

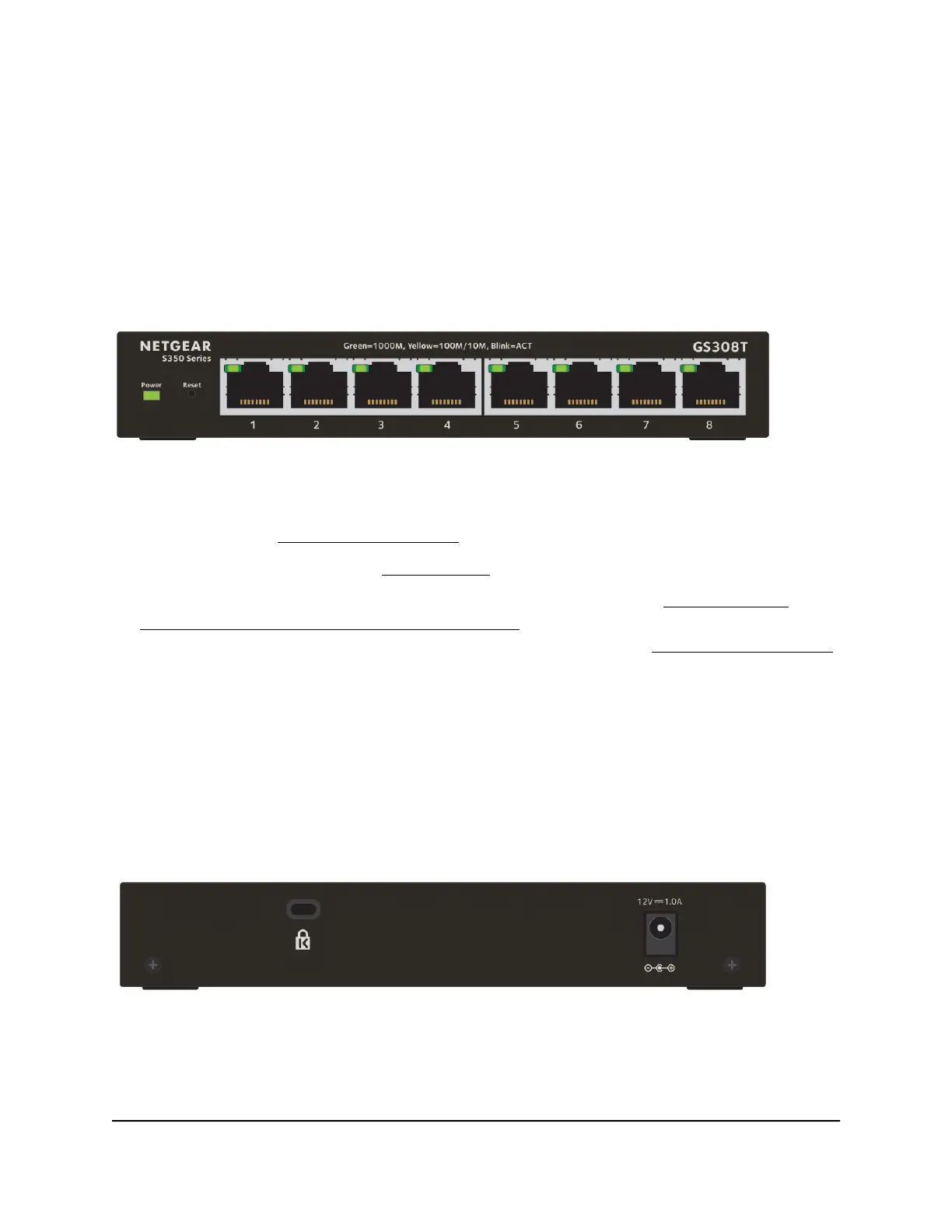

The following figure shows the front panel of model GS308T.
Figure 1. Model GS308T front panel
From left to right, the front panel of model GS308T provides the following components:
•
Power LED (see Model GS308T: LEDs on page 13).
•
Recessed Reset button (see Reset button on page 16).
•
Eight independent 10/100/1000BASE-T RJ-45 ports (1–8, see RJ-45 ports for
10/100/1000M BASE-T Ethernet connectivity on page 16), each with a left LED that
functions as the combined link, speed, and activity LED (see Model GS308T: LEDs
on page 13).
Model GS308T: Back panel
The back panel of model GS308T contains a Kensington lock slot for an optional security
cable and a 12V, 1.0A DC power connector for the DC power adapter that came in the
switch package.
The following figure shows the back panel of model GS308T.
Figure 2. Model GS308T back panel
Hardware Installation Guide12Hardware Overview
S350 Series 8-Port Gigabit Ethernet Smart Managed Pro Switch
