NETGEAR Tri-band Mesh WiFi 6 Router

Router hardware and LED overview
The following sections are an overview of the router hardware features and LED behavior.
Router hardware features
The following figure shows the router hardware features.

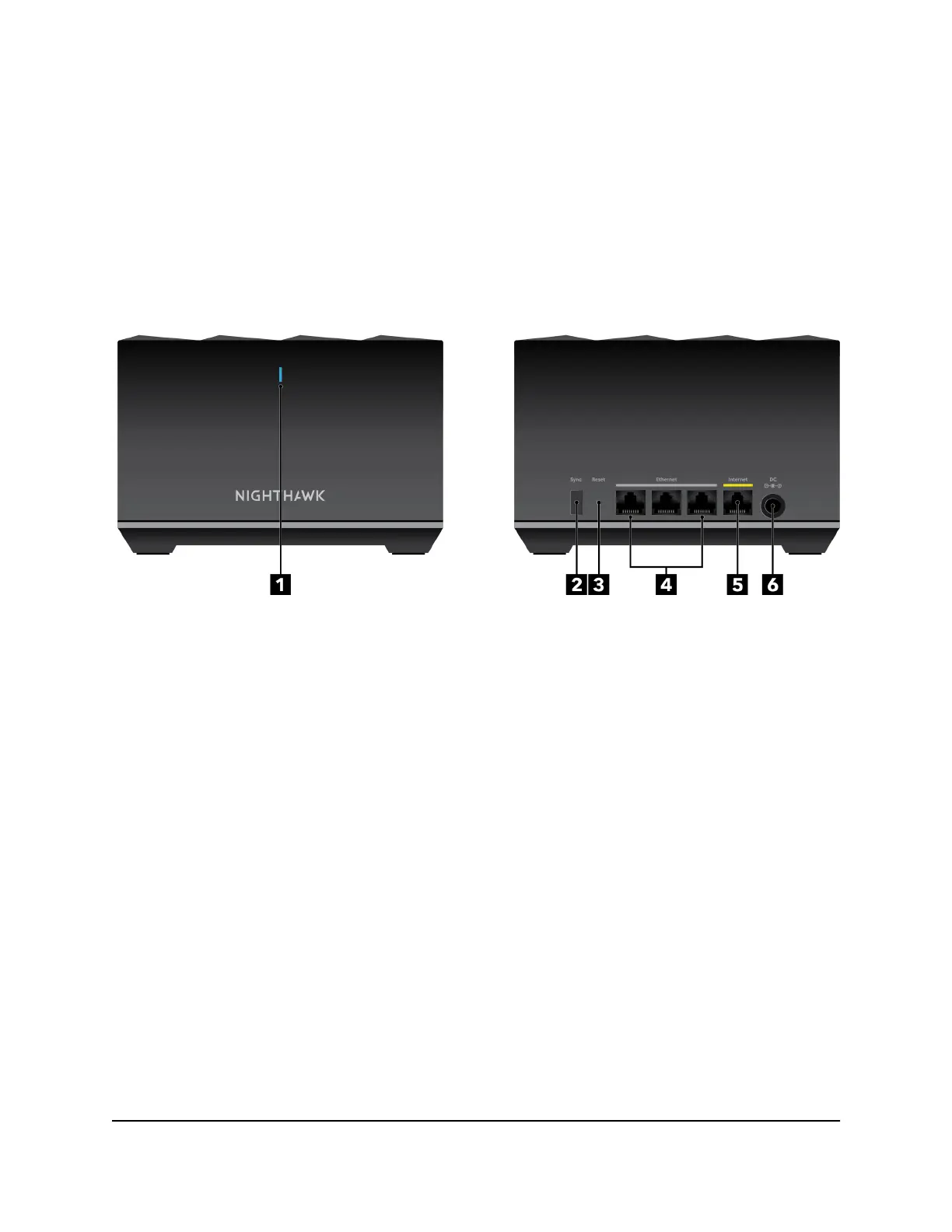

Figure 1. Router front and back views
1. Router LED
2. Sync button
3. Reset button
4. Ethernet ports
5. Internet port
6. Power connector
User Manual9Overview
Nighthawk Tri-band Mesh WiFi 6
