Reference Manual for the 54 Mbps Wireless Router WGR614 v5
Network, Routing, Firewall, and Basics B-13
July 2004 202-10036-01
Inside Twisted Pair Cables
For two devices to communicate, the transmitter of each device must be connected to the receiver
of the other device. The crossover function is usually implemented internally as part of the
circuitry in the device. Computers and workstation adapter cards are usually media-dependent
interface ports, called MDI or uplink ports. Most repeaters and switch ports are configured as
media-dependent interfaces with built-in crossover ports, called MDI-X or normal ports. Auto
Uplink technology automatically senses which connection, MDI or MDI-X, is needed and makes
the right connection.

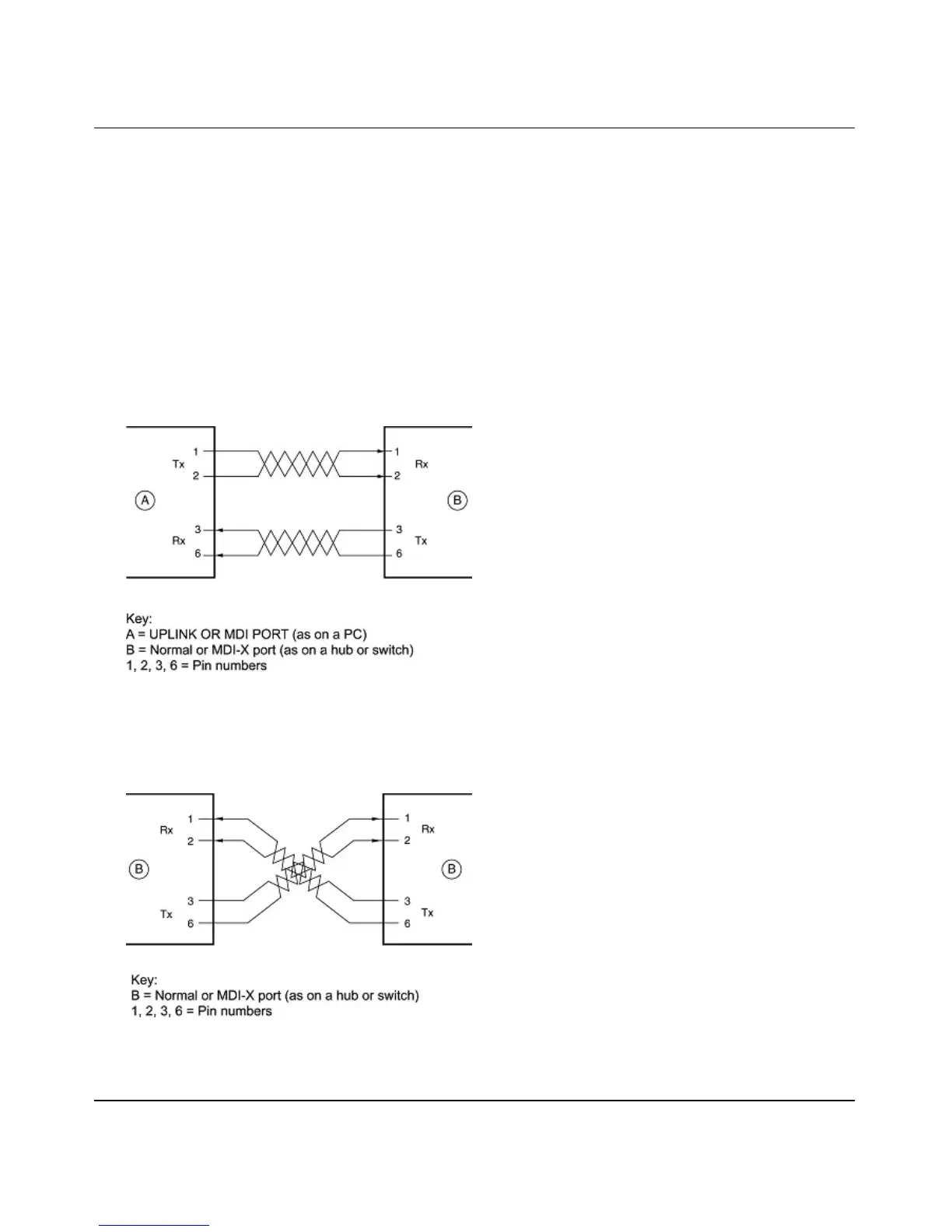

Figure B-4 illustrates straight-through twisted pair cable.
Figure B-4: Straight-Through Twisted-Pair Cable
Figure B-5 illustrates crossover twisted pair cable.
Figure B-5: Crossover Twisted-Pair Cable

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the NETGEAR WGR614 v5 and is the answer not in the manual?

NETGEAR WGR614 v5 Specifications

General IconGeneral
Wireless Standard802.11g
Frequency Band2.4 GHz
LAN Ports4 x 10/100 Mbps
WAN Ports1 x 10/100 Mbps
SecurityWEP, WPA, WPA2
Wireless Data RatesUp to 54 Mbps
FirewallNAT, SPI
Power Supply12V DC, 1A
Weight0.3 kg
Dimensions175 x 118 x 28 mm
