NETGEAR WGR614 v5 User Manual

Reference Manual for the 54 Mbps Wireless Router WGR614 v5
Connecting the Router to the Internet 3-13
July 2004 202-10036-01
How to Manually Configure Your Internet Connection
You can manually configure your router using the menu below, or you can allow the Setup Wizard
to determine your configuration as described in the previous section.

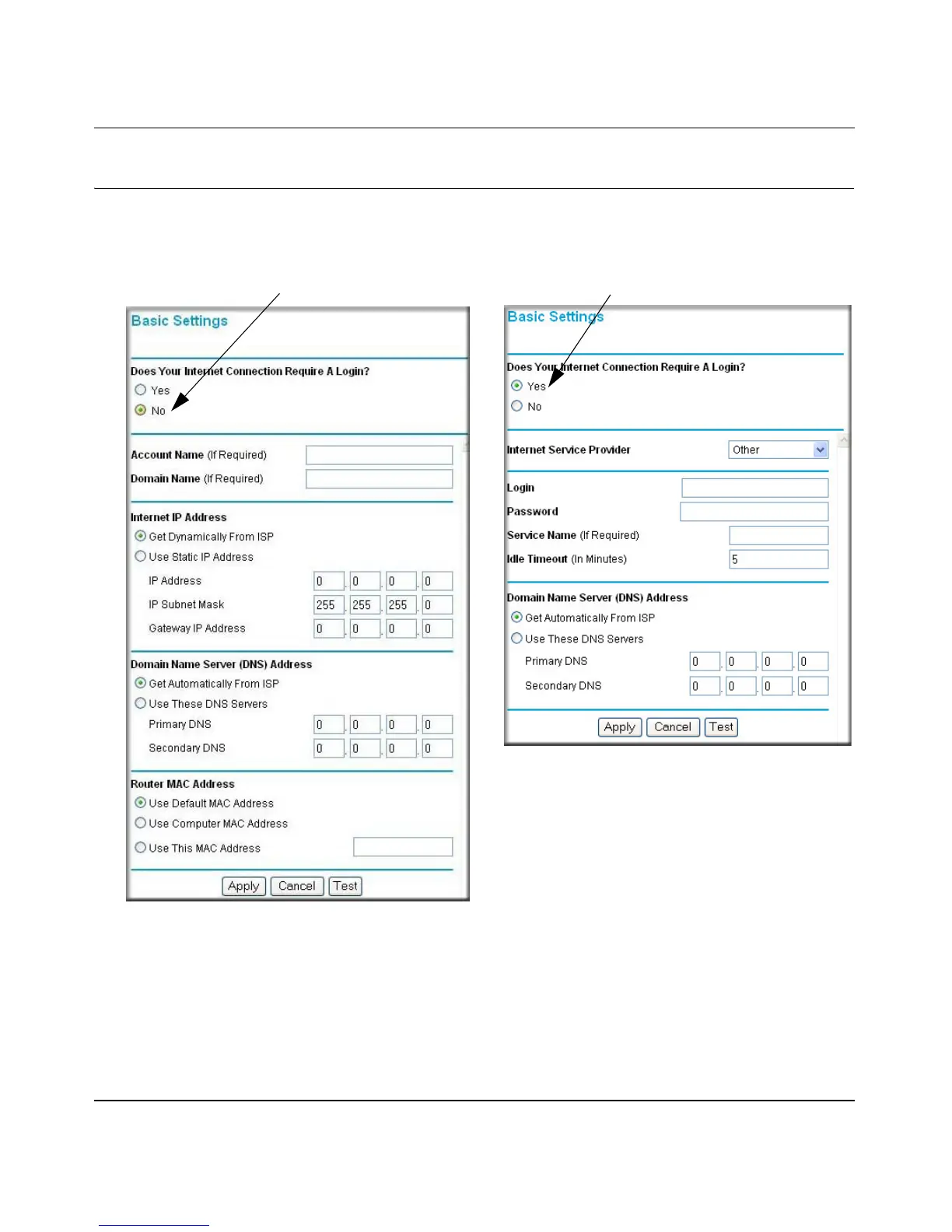

Figure 3-11: Browser-based configuration Basic Settings menus
You can manually configure the router using the Basic Settings menu shown in Figure 3-11 using
these steps:
1. Connect to the wireless router by typing http://www.routerlogin.net in the address field of
your browser, then click Enter.
ISP Does Not Require Login
ISP Does Require Login

NETGEAR WGR614 v5 Specifications

General

Wireless Standard	802.11g
Frequency Band	2.4 GHz
LAN Ports	4 x 10/100 Mbps
WAN Ports	1 x 10/100 Mbps
Security	WEP, WPA, WPA2
Wireless Data Rates	Up to 54 Mbps
Firewall	NAT, SPI
Power Supply	12V DC, 1A
Weight	0.3 kg
Dimensions	175 x 118 x 28 mm
