NETGEAR WGR614 v5 User Manual

Reference Manual for the 54 Mbps Wireless Router WGR614 v5
Connecting the Router to the Internet 3-15
July 2004 202-10036-01
Note: After you finish setting up your router, you will no longer need to launch the ISP’s login
program on your computer in order to access the Internet. When you start an Internet
application, your router will automatically log you in.
a. Select your Internet service provider from the drop-down list.

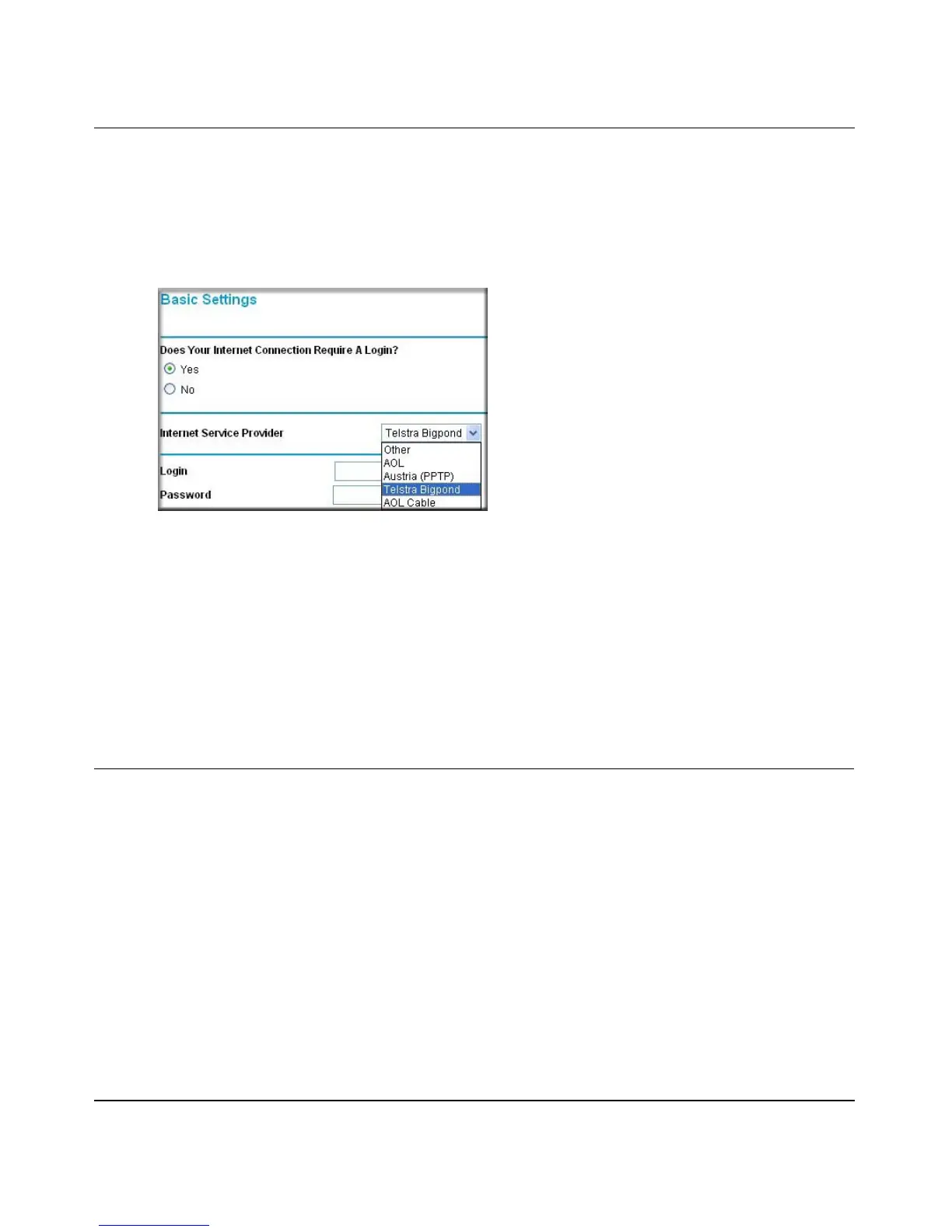

Figure 3-12: Basic Settings ISP list
Note: Not all ISPs are listed here. The ones on this list have special requirements.
b. The screen will change according to the ISP settings requirements of the ISP you select.
c. Fill in the parameters for your Internet service provider.
d. Click Apply to save your settings. Click the Test button to verify you have Internet access.
Using the Smart Setup Wizard
You can use the Smart Setup Wizard to assist with manual configuration or to verify the Internet
connection. The Smart Setup Wizard is not the same as the Smart Wizard configuration assistant
(as illustrated in Figure 3-5) that only appears when the router is in its factory default state. After
you configure the wireless router, the Smart Wizard configuration assistant will not appear again.
To use the Smart Setup Wizard to assist with manual configuration or to verify the Internet
connection settings, follow this procedure.
1. Connect to the wireless router by typing http://www.routerlogin.net in the address field of
your browser, then click Enter.

NETGEAR WGR614 v5 Specifications

General

Wireless Standard	802.11g
Frequency Band	2.4 GHz
LAN Ports	4 x 10/100 Mbps
WAN Ports	1 x 10/100 Mbps
Security	WEP, WPA, WPA2
Wireless Data Rates	Up to 54 Mbps
Firewall	NAT, SPI
Power Supply	12V DC, 1A
Weight	0.3 kg
Dimensions	175 x 118 x 28 mm
