NETGEAR WGR614 v5 User Manual

Maintenance 6-1
July 2004 202-10036-01
Chapter 6
Maintenance
This chapter describes how to use the maintenance features of your 54 Mbps Wireless Router
WGR614 v5. These features can be found by clicking on the Maintenance heading in the Main
Menu of the browser interface.
Viewing Wireless Router Status Information
The Router Status menu provides status and usage information. From the Main Menu of the
browser interface, click on Maintenance, then select Router Status to view the System Status
screen, shown below.

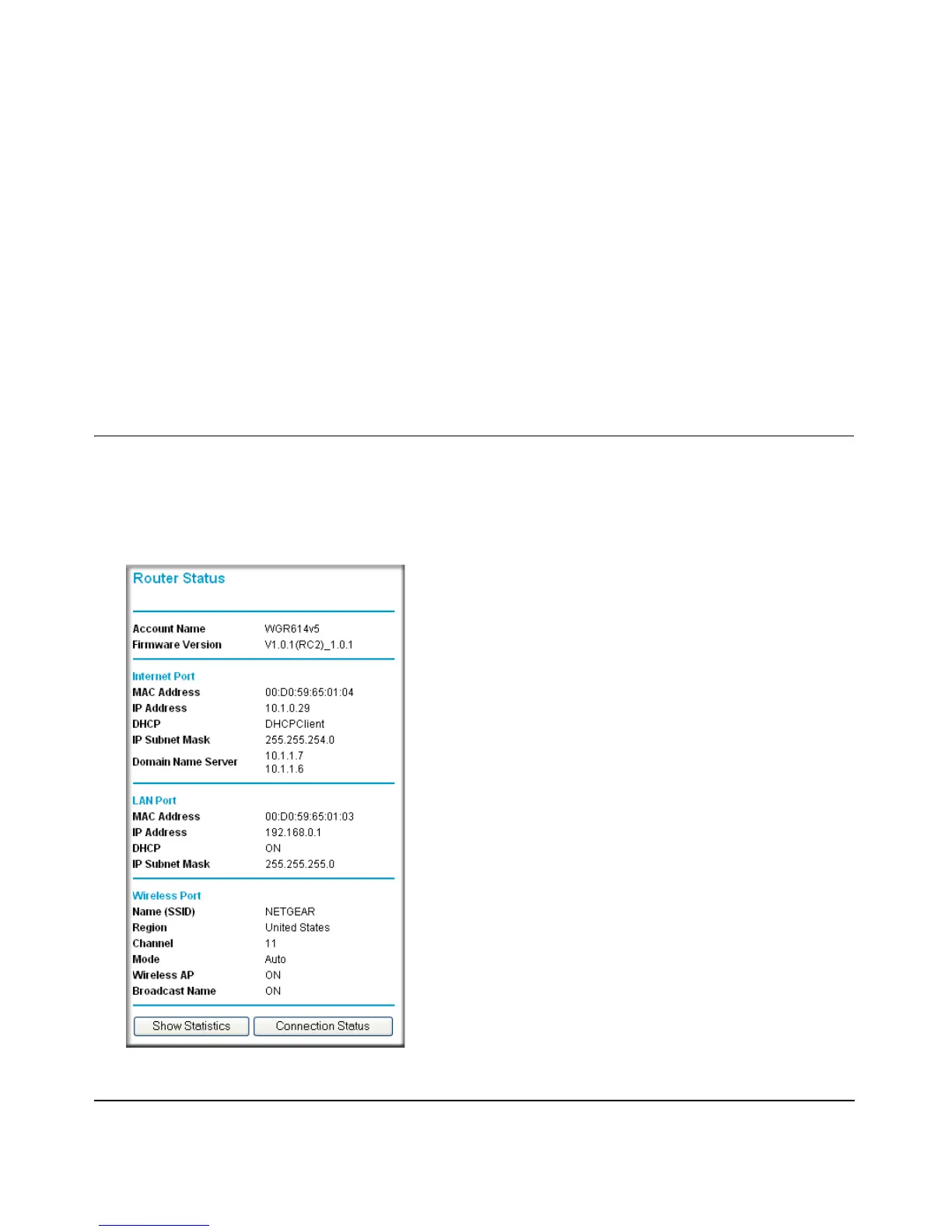

Figure 6-1: Router Status screen

NETGEAR WGR614 v5 Specifications

General

Wireless Standard	802.11g
Frequency Band	2.4 GHz
LAN Ports	4 x 10/100 Mbps
WAN Ports	1 x 10/100 Mbps
Security	WEP, WPA, WPA2
Wireless Data Rates	Up to 54 Mbps
Firewall	NAT, SPI
Power Supply	12V DC, 1A
Weight	0.3 kg
Dimensions	175 x 118 x 28 mm
