Reference Manual for the 54 Mbps Wireless Router WGR614 v5
3-2 Connecting the Router to the Internet
July 2004 202-10036-01
c.
Locate the Ethernet cable (cable 1 in the diagram) that connects your PC to the modem.

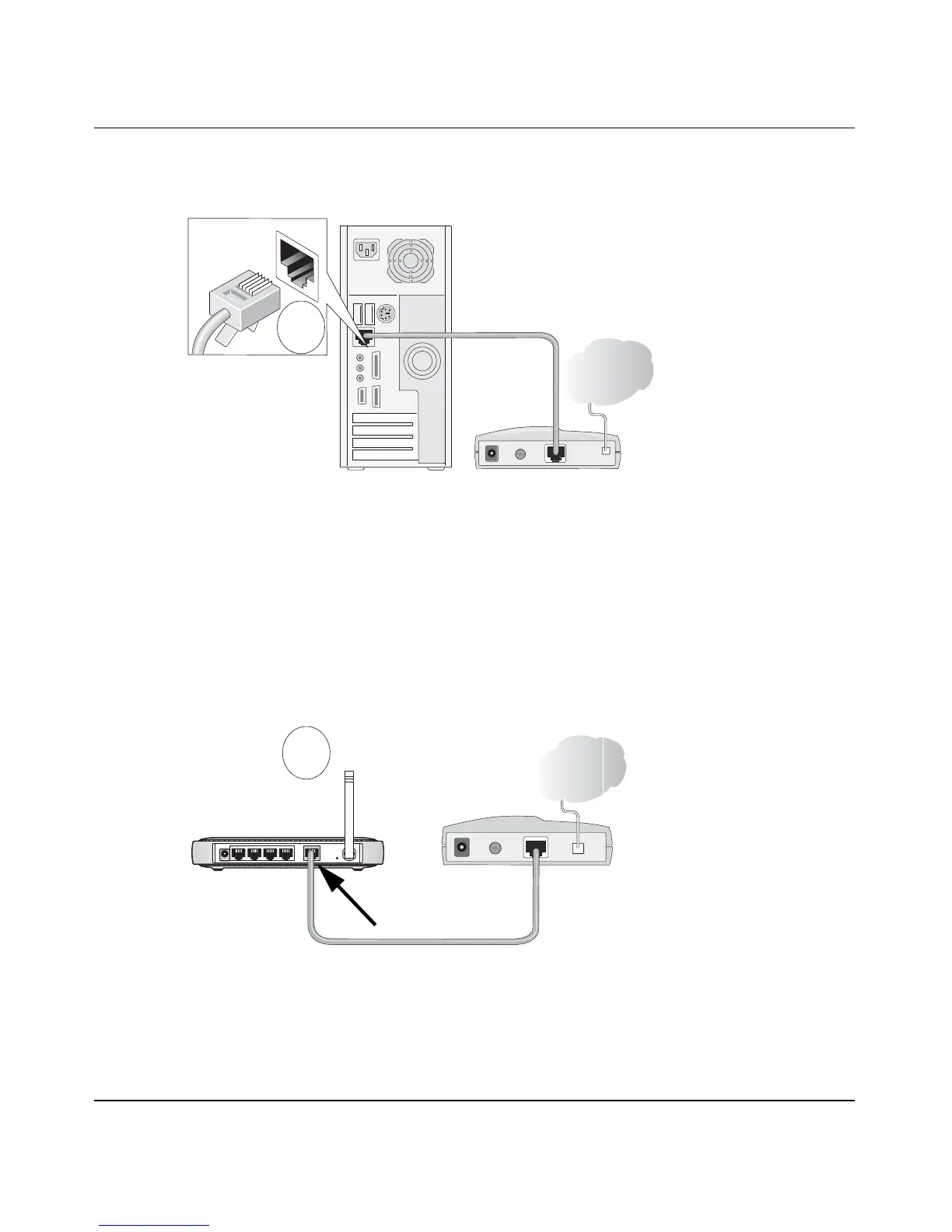

Figure 3-1: Disconnect the Ethernet cable from the computer
d.
Disconnect the cable at the computer end only, point A in the diagram above.
e. Look at the label on the bottom of the wireless router. Locate the Internet port. Securely
insert the Ethernet cable from your modem (cable 1 in the diagram below) into the Internet
port of the wireless router as shown in point B of the diagram below.
Figure 3-2: Connect the wireless router to the modem
PRGHP
&DEOH
,QWHUQHW
FRPSXWHU
A
PRGHP
&DEOH
,QWHUQHW
,QWHUQHW
SRUW
URXWHU
B
