Router Setup Manual
1-2 Connecting the Router to the Internet
v1.0, 2006-01-17
The Front of the Router

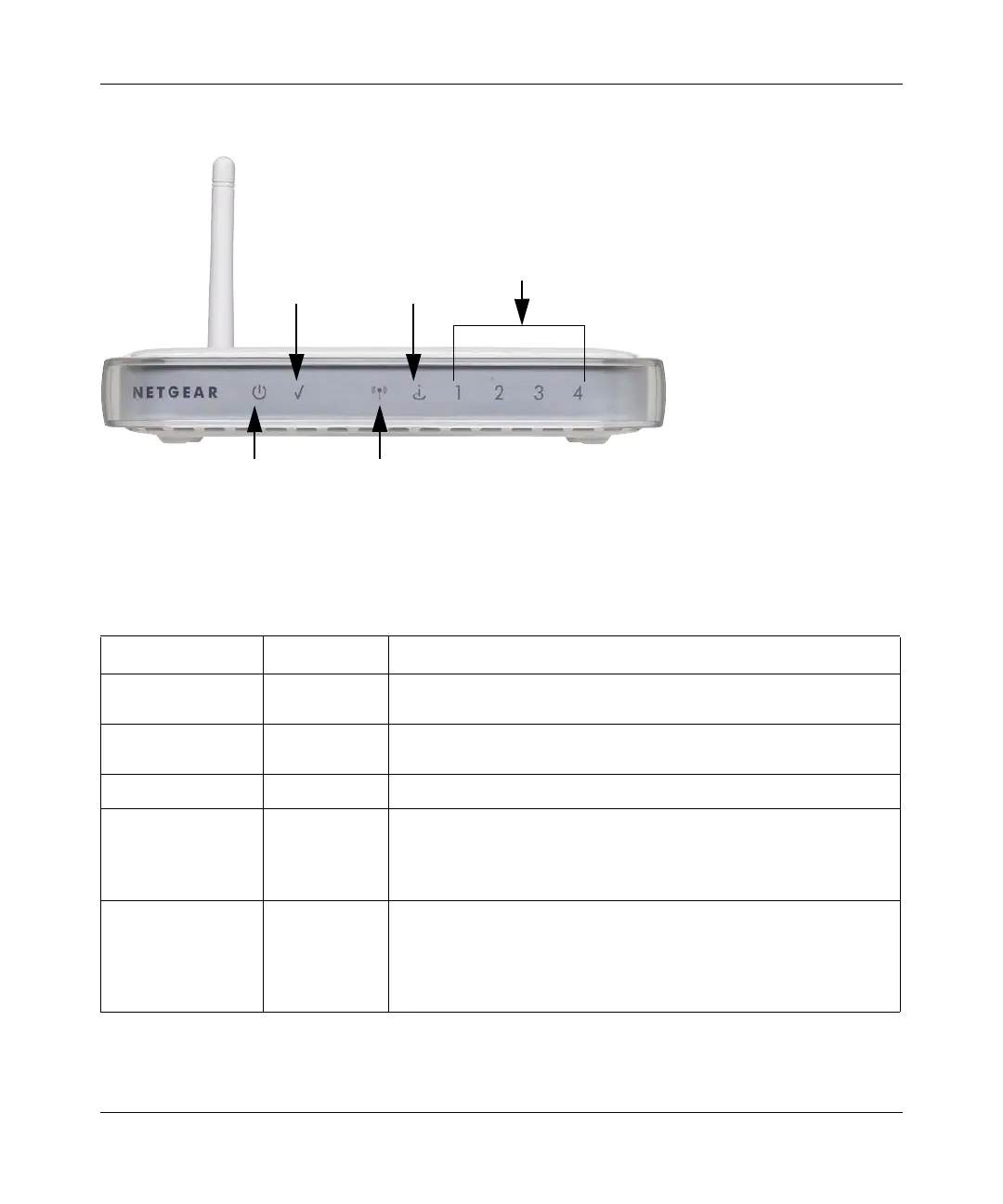

You can use the status lights on the front of the router to verify various conditions.
Figure 1-1
Table 1-1.
Status Light
Activity Description
1. Power
On
Off
Power is supplied to the router.
Power is not supplied to the router.
2. Test
On
Off
The system is initializing or in the middle of a firmware upgrade.
The system is ready and running.
3. Wireless
On Indicates that the Wireless port is initialized.
4. Internet
On -- Amber
On -- Green
Blink -- Green
The Ethernet cable is connected but the router has not gotten an
Internet address.
The router has an Internet address.
Data is being communicated with the Internet.
5. LAN (Local Area
Network) Lights
1-4
On (Green)
Blink (Green)
On (Amber)
Blink (Amber)
Off
The local port is connected to a 100 Mbps device.
Data is being transmitted at 100 Mbps.
The local port has detected a link with a 10 Mbps device.
Data is being transmitted at 10 Mbps.
No link is detected on this port.
5
1
2
3
4
