NETGEAR WN3500RP User Manual

Getting Started
10
Universal Dual Band WiFi Extender – Desktop/Wallplug
Insert the AC Plug
You can use the AC plug to plug the extender directly into an outlet, or you can attach the
stand and plug in the power adapter cord (see Attach the Stand and Power Adapter Cord on
page 11).
1
2
3

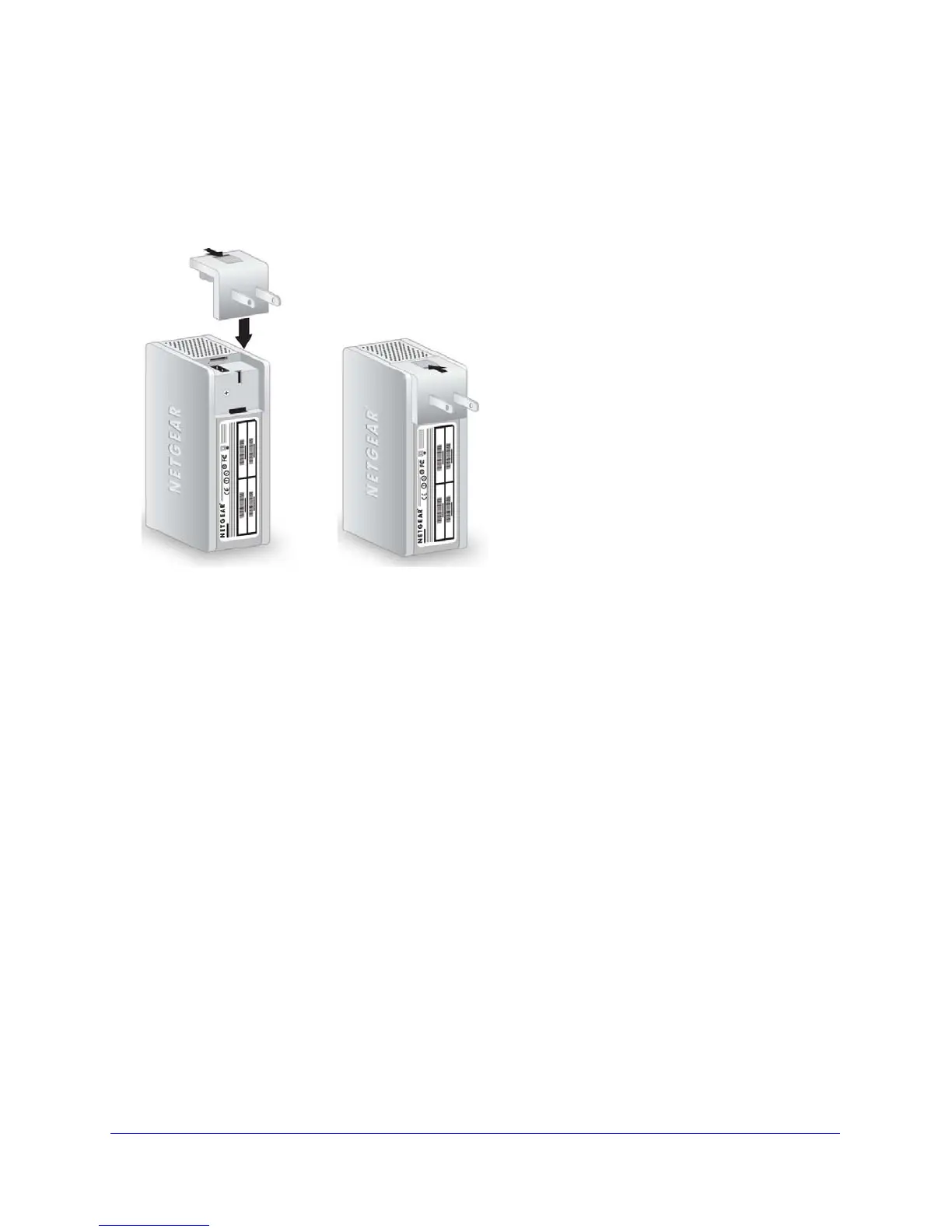

Figure 5. If you want to plug the extender directly into an outlet, insert the AC plug.

To insert the AC plug:
1 Slid
e the tab on the top of the AC plug into the open position.
2 Align the AC plug with
the extender as shown.
3 Press firmly so
that the AC plug is securely attached to the extender.
You can now plug the extender into an electrical outlet.

NETGEAR WN3500RP Specifications

General

Type	Network transmitter & receiver
Browser supported	Internet Explorer 5.0, Firefox 2.0, Safari 1.4
Maximum transfer distance	- m
Mac operating systems supported	Yes
Windows operating systems supported	Windows 2000, Windows 2000 Professional, Windows 7 Home Basic, Windows 7 Home Premium, Windows 7 Professional, Windows 7 Starter, Windows 7 Ultimate, Windows 8, Windows 8 Enterprise, Windows 8 Pro, Windows Vista Business, Windows Vista Enterprise, Windows Vista Home Basic, Windows Vista Home Premium, Windows Vista Ultimate, Windows XP Home, Windows XP Professional
Dimensions (WxDxH)	79 x 42 x 120 mm
Bandwidth	2.4 GHz
Cabling technology	10/100Base-T(X)
Security algorithms	WEP, WPA, WPA2, WPS
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-Fi data rate (max)	300 Mbit/s
Headphone connectivity	3.5 mm
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	1
Product color	White
LED indicators	Power, Status, WLAN
Sustainability certificates	RoHS
Cables included	AC

Weight and Dimensions

Depth	42 mm
Width	79 mm
Height	120 mm
