NETGEAR WN3500RP User Manual

Extender Network Settings
25
Universal Dual Band WiFi Extender – Desktop/Wallplug
- Gateway IP Address. The IP address for the gateway.
- Primary DNS. The p
rimary Domain Name Server (DNS).
- Second
ary DNS. The secondary Domain Name Server (DNS).
Maintenance Settings
You can use the maintenance settings to view the extender status, view attached devices,
back up and restore configuration settings, set the password, and update the firmware.

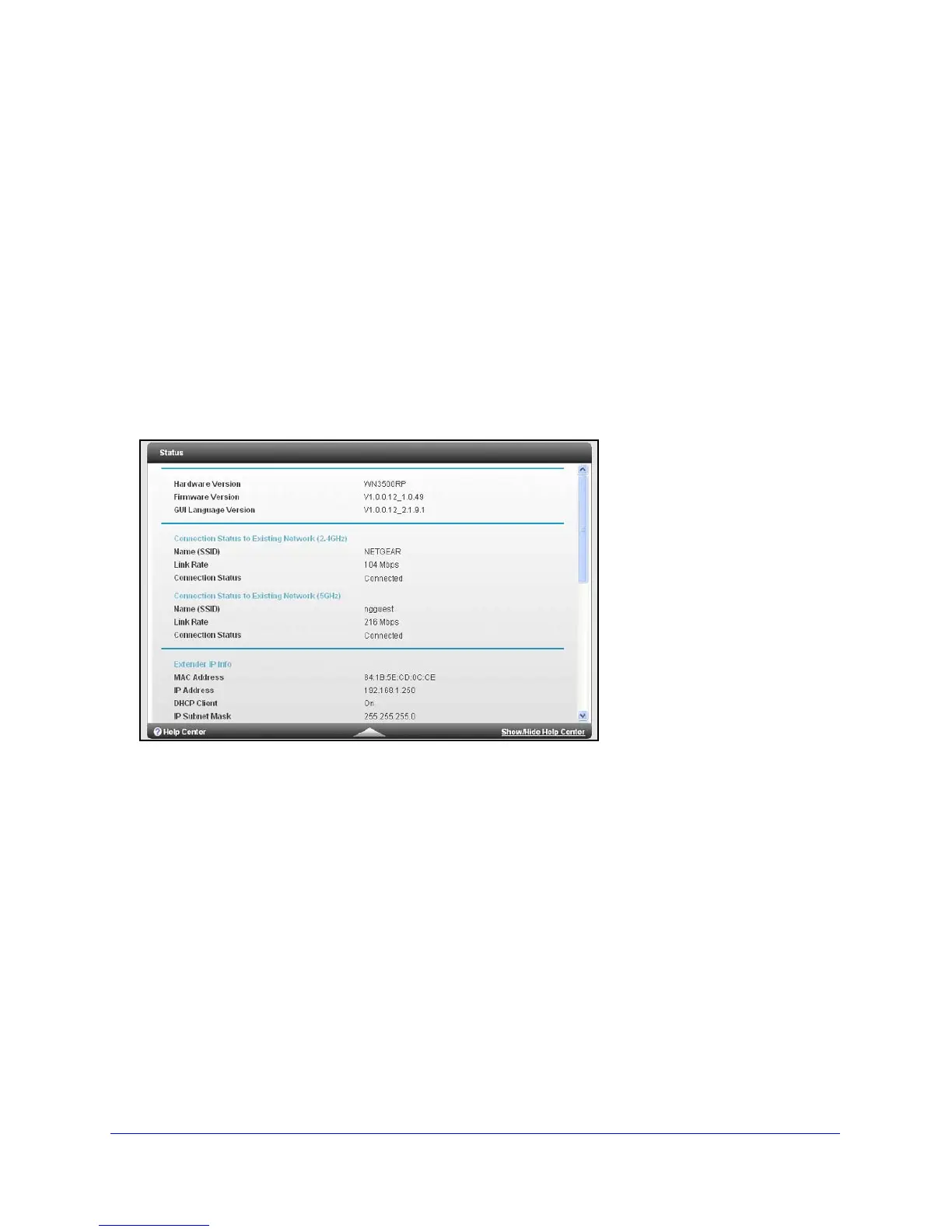

Status Screen
When you connect to http://www.mywifiext.net, after the automatic firmware check, the Status
screen displays. You can also select Status from the menu to display this screen:
This screen shows the current settings and the status of your extender.
You can click Show S
tatistics to see device performance statistics such as the number of
packets sent and number of packets received for each port. See Show Statistics on p
age 26.
The following fields are displayed in the Status screen:
• Hardware V
ersion. The hardware version of the extender.
• Firmware V
ersion. The current firmware version of the extender. If you upgrade the
firmware, this field changes.
• GUI La
nguage Version. The language version running on the extender. If you upgrade
the firmware, this field changes.
Connection Status to Existing Network
• Name (SSID). Your extender is set up to connect to this SSID, also called the wireless
name.
• Connec
tion Status. The status of your wireless connection (connected or disconnected).

NETGEAR WN3500RP Specifications

General

Type	Network transmitter & receiver
Browser supported	Internet Explorer 5.0, Firefox 2.0, Safari 1.4
Maximum transfer distance	- m
Mac operating systems supported	Yes
Windows operating systems supported	Windows 2000, Windows 2000 Professional, Windows 7 Home Basic, Windows 7 Home Premium, Windows 7 Professional, Windows 7 Starter, Windows 7 Ultimate, Windows 8, Windows 8 Enterprise, Windows 8 Pro, Windows Vista Business, Windows Vista Enterprise, Windows Vista Home Basic, Windows Vista Home Premium, Windows Vista Ultimate, Windows XP Home, Windows XP Professional
Dimensions (WxDxH)	79 x 42 x 120 mm
Bandwidth	2.4 GHz
Cabling technology	10/100Base-T(X)
Security algorithms	WEP, WPA, WPA2, WPS
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-Fi data rate (max)	300 Mbit/s
Headphone connectivity	3.5 mm
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	1
Product color	White
LED indicators	Power, Status, WLAN
Sustainability certificates	RoHS
Cables included	AC

Weight and Dimensions

Depth	42 mm
Width	79 mm
Height	120 mm
