9 DISMANTLING AND ASSEMBLY
OF THE PUMP HOUSING
PAGE
9.2
issued: 21.03.2017 Revision: 3
text no.
09047-3/3
copy to:

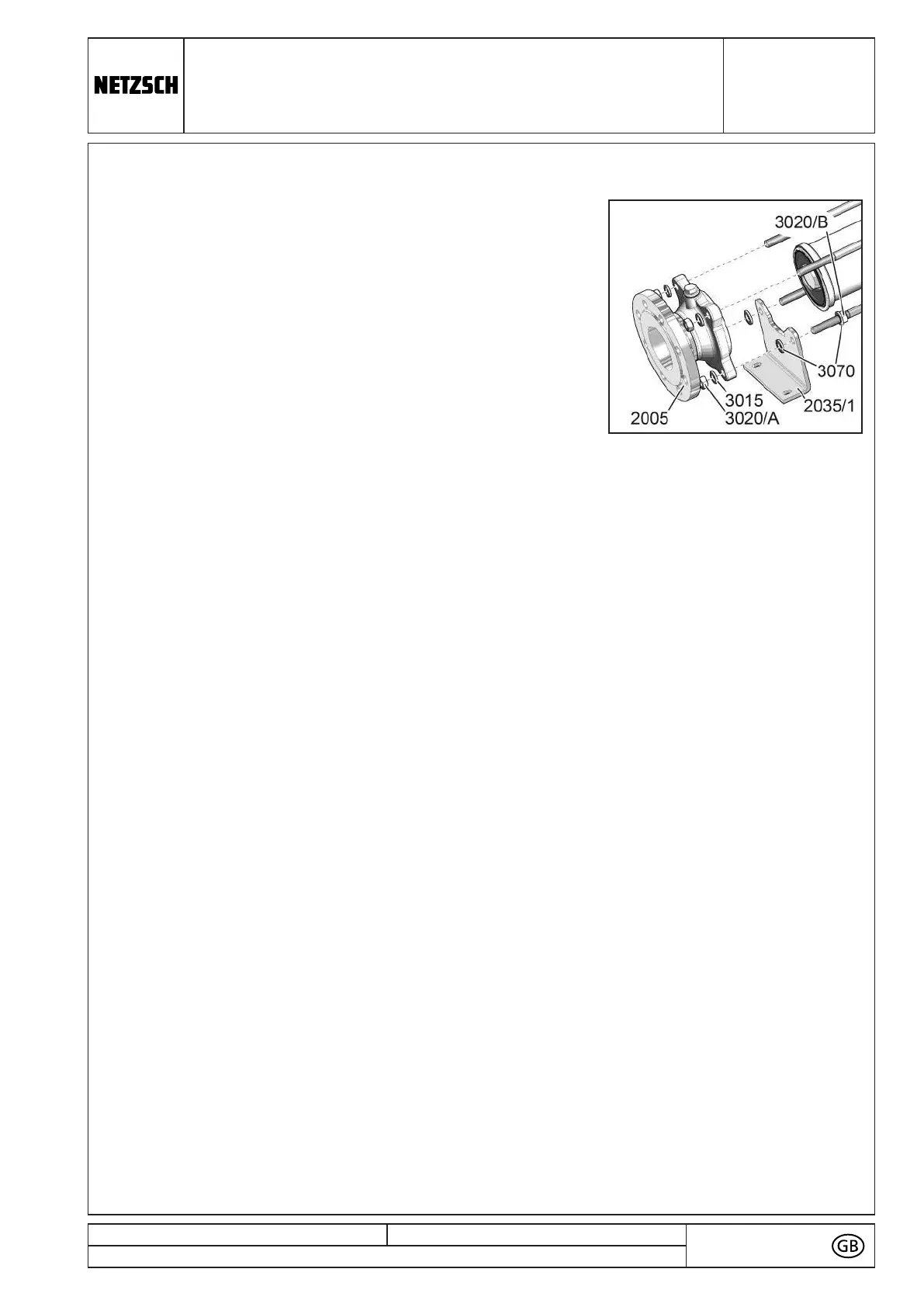

Fastening the end connection (2005):
■ Screw the hex nuts (3020/B) down into the thru bolts
(3010) as far as possible.
■ Slip on the first washers (3070), the support foot
(2035/1), the second washers (3070), the end
connection (2005) and tighten with the spring
washers (3015) and the hex nuts (3020/A).
■ Fasten the support foot (2035) from behind with the
two hex nuts (3020/B).
