9 DISMANTLING AND ASSEMBLY
OF THE PUMP HOUSING
PAGE
9.0
issued: 21.03.2017 Revision: 3
text no.
09047-1/3
copy to:
9 Dismantling and assembly of the pump housing
9.1 Disassembly and assembly of end connection, stator and
pump housing
The pump and the connected pipe work must be emptied and cooled down!
■ Disconnect the pipework on the suction side and pressure side of the pump.

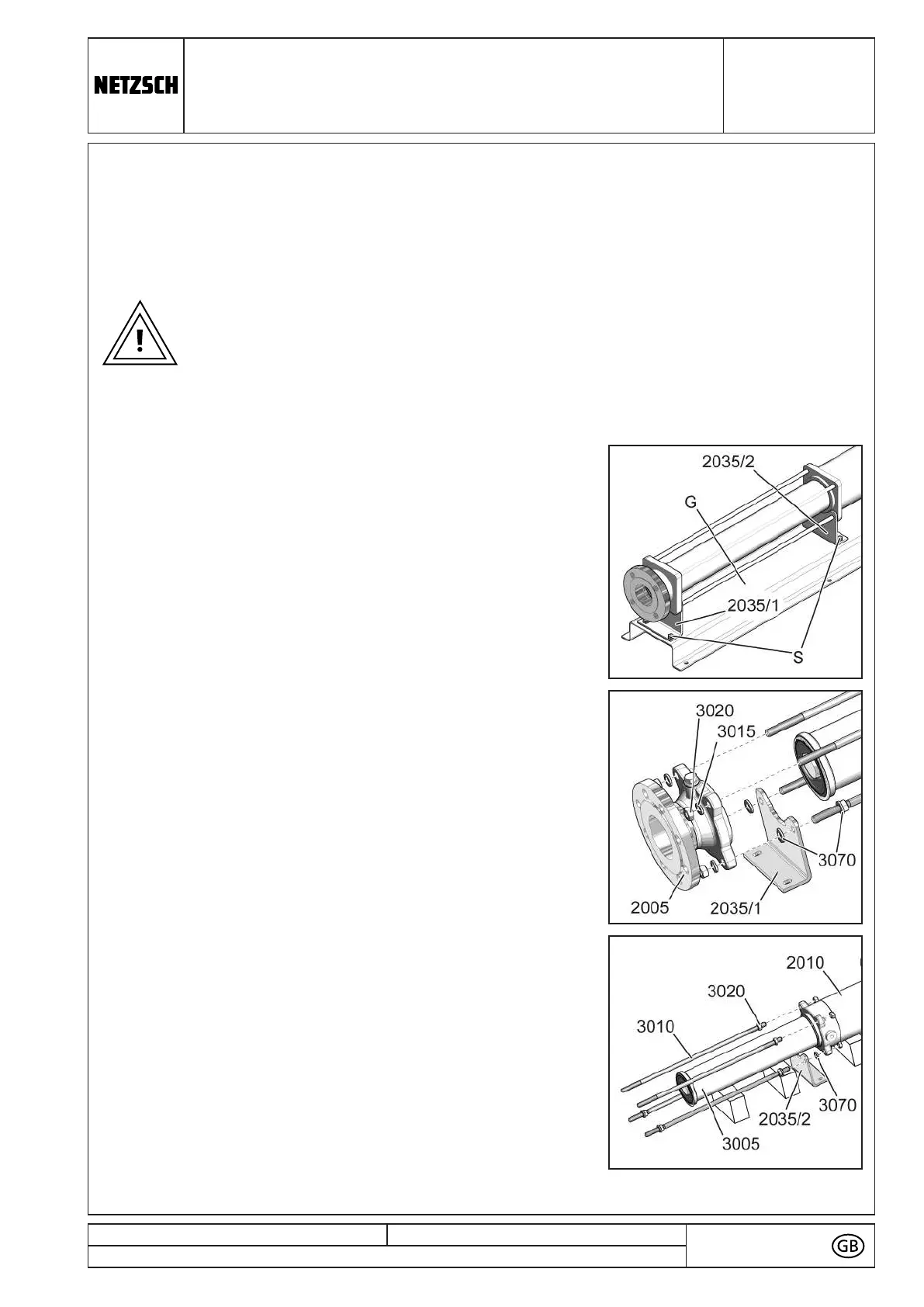

9.1.1 Dismantling
■ Remove the securing screws (S) from support feet
(2035) to baseplate (G).
■ Unscrew the hex nuts A (3020/A) and remove with
spring washers (3015).
■ Withdraw the end connection (2005) and first
support foot (2035/1) with washers (3070).
■ Support pump housing (2010) and stator (3005) with
wooden blocks.
■ Loosen the hex nuts (3020), where fitted, and
remove the thru bolts (3010).
■ Where fitted, remove the second support foot
(2035/2) and the washers (3070).
