11 DISMANTLING AND ASSEMBLY

OF THE CONNECTING SHAFT

PAGE

11.0

issued: 30.11.2016 Revision: 7

text no.

11066-1/1

copy to:

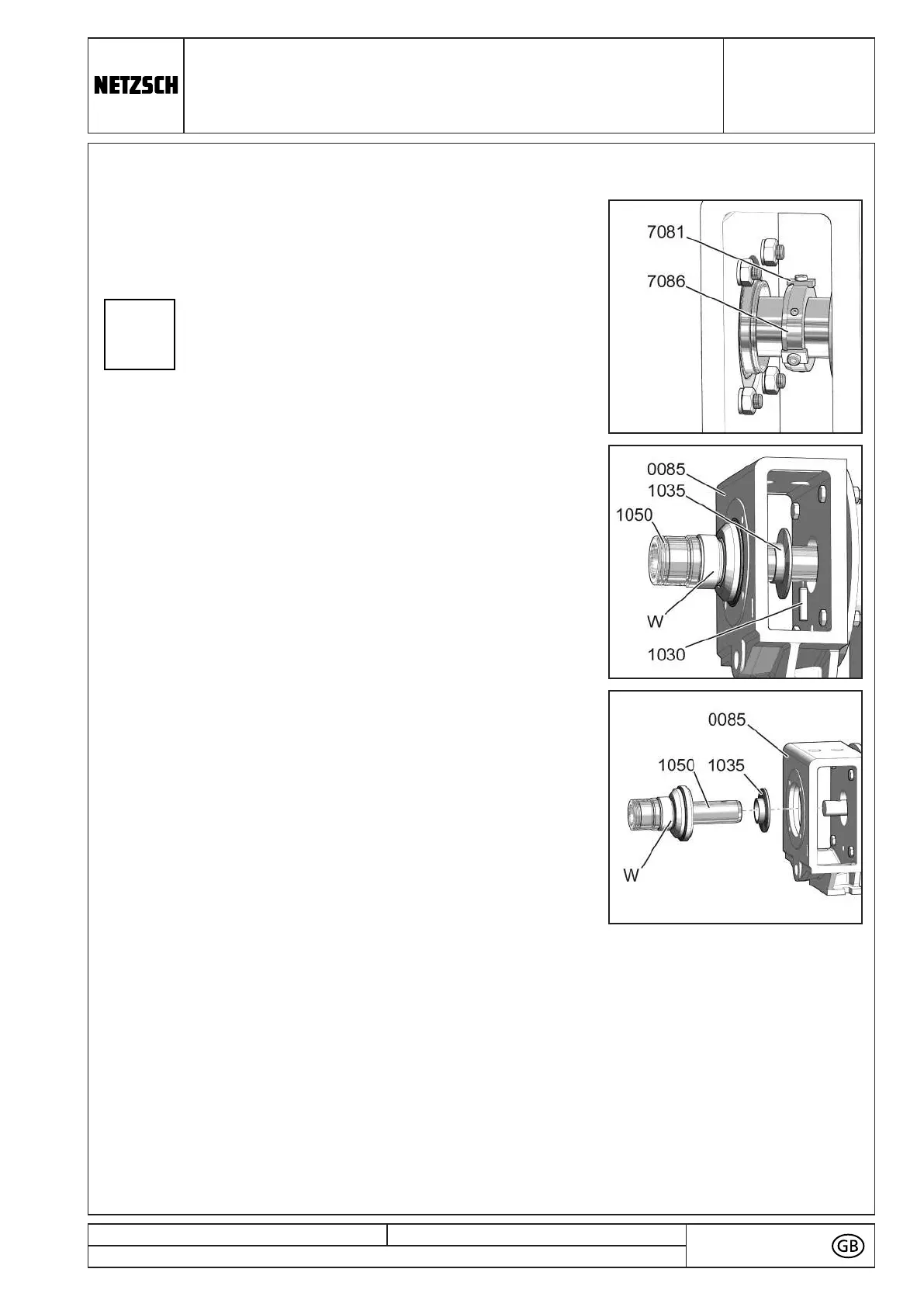

11 Disassembly and assembly of

the connecting shaft along

with the shaft sealing

For shaft sealings with set ring (7086) and

cramps (7081), the disassembly is carried

out in accordance with Section 11.3.

11.1 Disassembly

■ Push the circlip (1035) towards the shaft sealing

(W).

■ Remove the pin (1030).

■ Remove the shaft sealing (W) along with the

connecting shaft (1050) and the circlip (1035) from

the lantern (0085) and the shaft of the drive.

Larger joints (≥ NM063) offer the possibility for

forcing off the connecting shaft (1050) from the shaft

of the drive (→ Page 11.A).

■ Remove the circlip (1035) from the connecting shaft

(1050).

Dismantling the shaft sealing (→ Section 12.1).
