11 DISMANTLING AND ASSEMBLY
OF THE CONNECTING SHAFT
PAGE
11.0R
text no.
R 11066-1/1
issued: 30.11.2016 Revision: 7
copy to:
11.2 Assembly
Installing the shaft sealing (→ Section 12.2).
■ Grease the borehole of the connecting shaft (1050)
(e.g. with TCE-Metallic 600) to prevent fretting
corrosion).

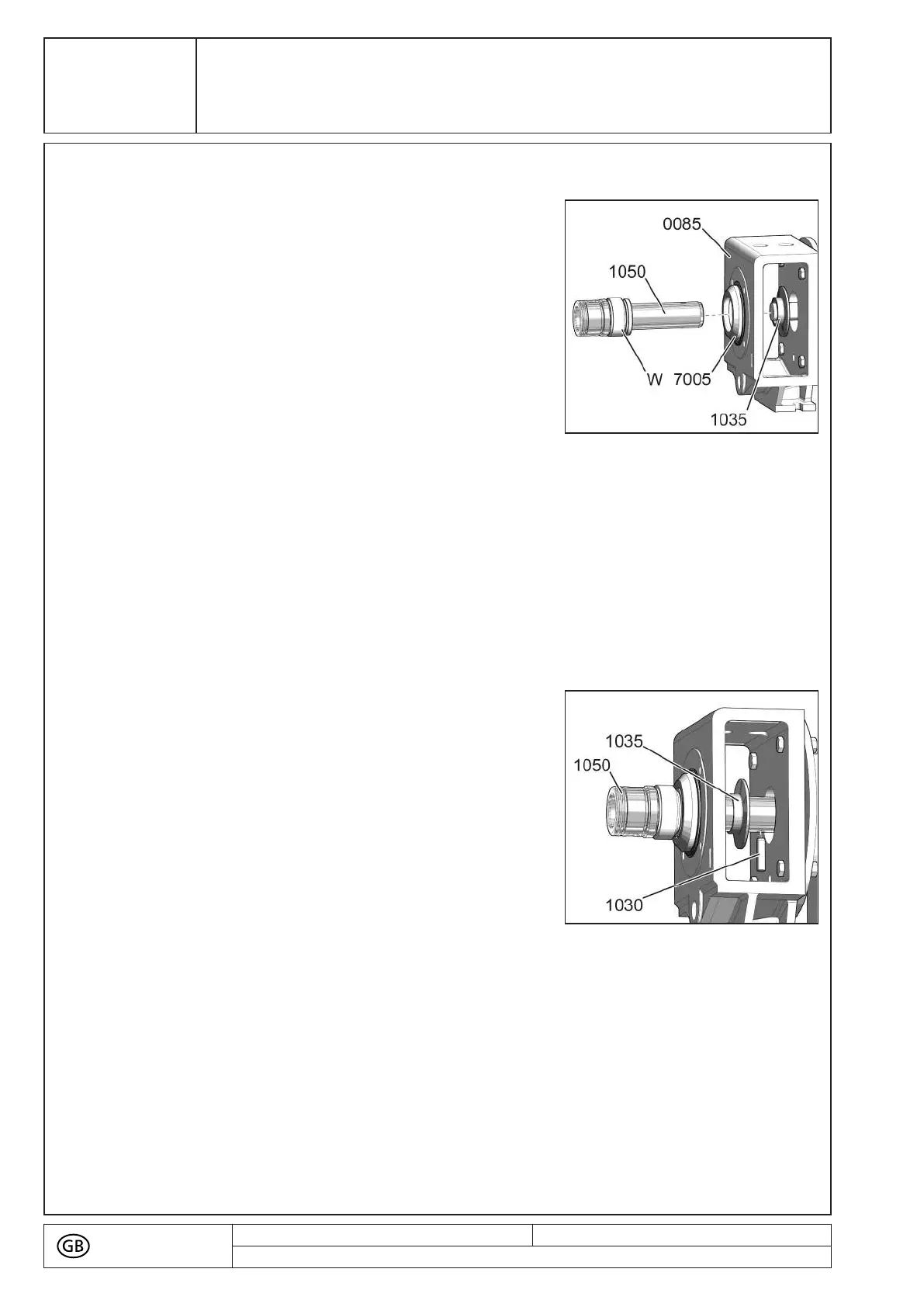

■ Fit the connecting shaft (1050) along with the shaft
sealing (W) into the lantern (0085) and push the
connecting shaft (1050) onto the motor shaft in the
process.
■ Push the circlip (1035) in that process inside of the
lantern (0085) onto the connecting shaft (1050) -
please observe the installation orientation (see
drawing).
■ Fit the connecting shaft (1050) onto the shaft of the
drive.
■ Join the connecting shaft (1050) to the the shaft of
the drive using the pin (1030).
■ Push the circlip (1035) over the pin (1030).
