USER MANUAL
Cut Recovery

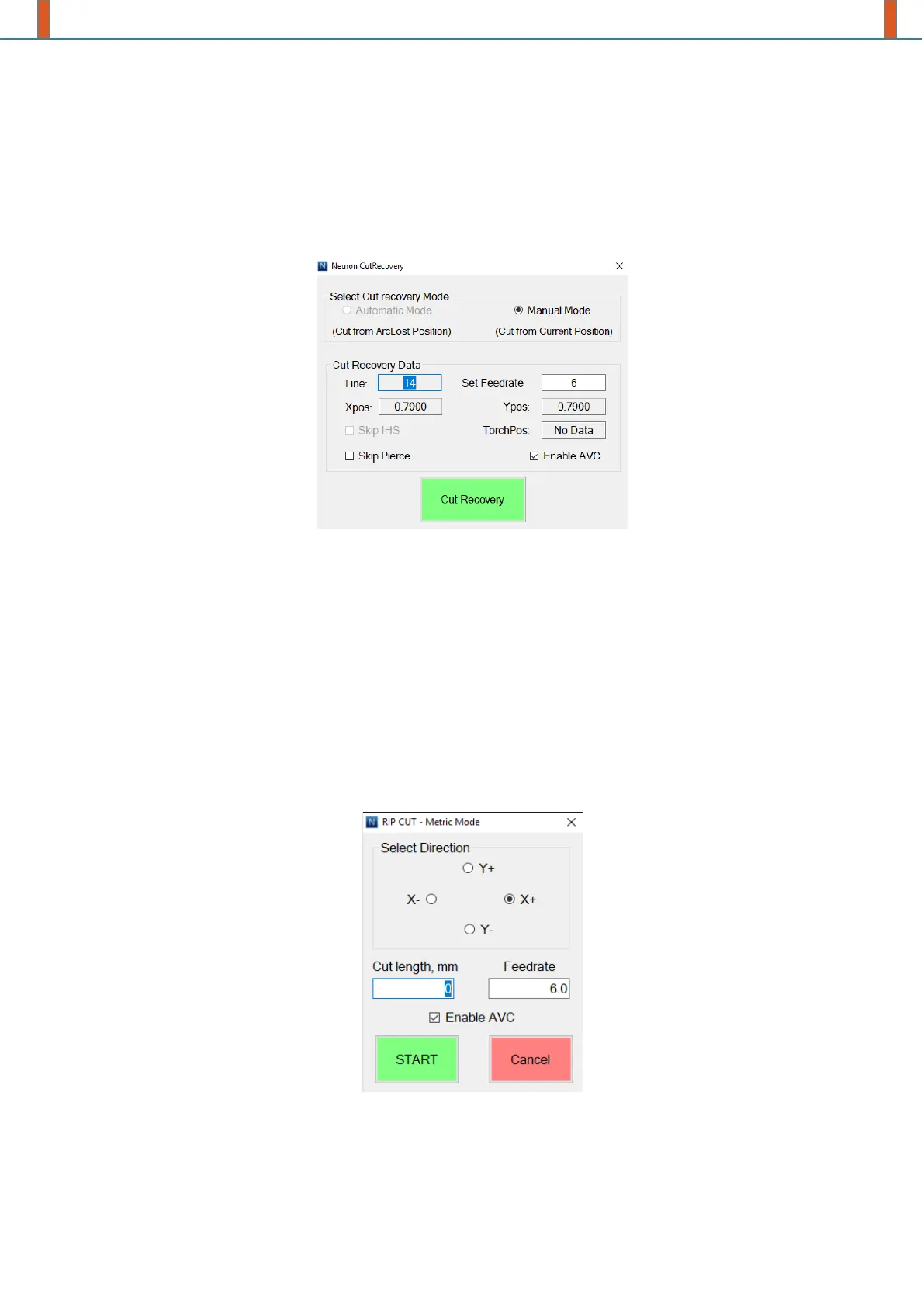

Cut recovery future allow to start cutting from Arc Lost position or from current position on the
cutting path.
When plasma unit is lost plasma arc, it’s turns off “ArcOK” signal and controller stop program.
UCCNC stop motion with deceleration. In same time controller store arc lost position for next
using. For continue cutting click on the “Cut Recovery” button. Dialog window will be open.
If plugin has a captured arc lost position, “Automatic mode” will be available.
Now operator can restart from arc lost position (“Automatic Mode”) or from current position
(“Manual Mode”). These two positions are on the cutting path and very close to each other. First –
arc lost position and then the current position (machine was stopped with deceleration).
“Cut recovery Data” group box consists information about selected position.
Set “Skip Pierce” check box if need to skip pierce.
Set “Enable AVC” check box if need to turn on Automatic voltage control.
Click on the “Cut Recovery” button for start cutting. Your machine will make the IHS procedure
and then begin cutting from the selected location.
Rip Cut
Rip Cut future can be use for straight cut. Click on the “Rip Cut” button. Rip cut dialog will
open:
Select desired direction, feedrate and length of the cut.
Set “Enable AVC” check box if need to turn on Automatic voltage control.
Click on the “START” button for start cutting. Your machine will make the IHS procedure and
then begin cutting from the current location.
