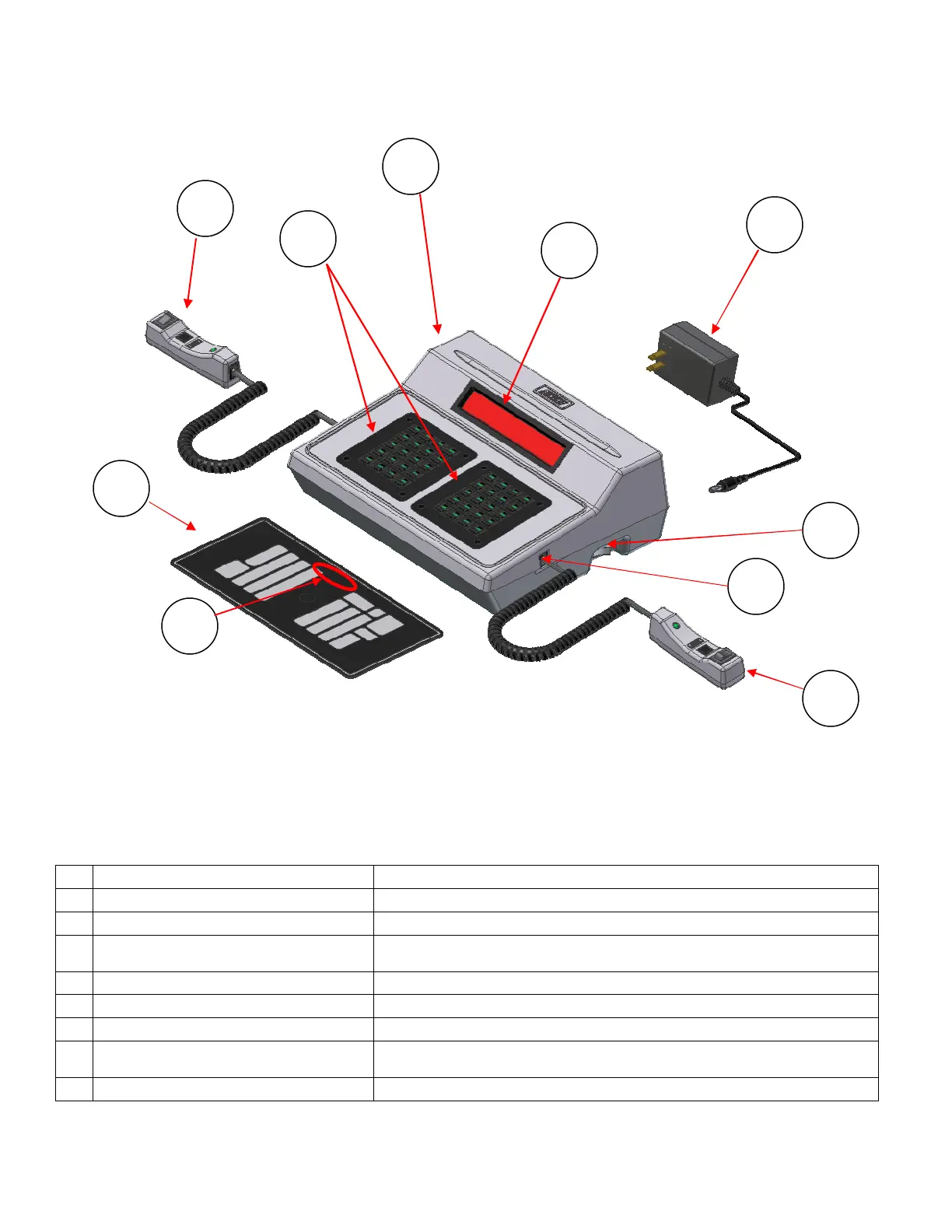

Figure 1 – MPC Control (front view)
A. MPC Control Can operate scoreboards for a wide range of sports and features.
B. Power Supply 9 V DC (included with the control)
C. Overlay Fits on top of control to label the keys (included with system)
D. Hand Held Switch
A TCS-5 time control switch is included with each control.
Other switches are included with the accessories they operate.
E. 3 character Model Code location This code sets up the control for your scoreboard model and sport
F. Keypads Left and Right (20 keys each)
G. 16 character display Bright LED for better visibility
H. Power On / Off switch
Removes power from the control only (does NOT turn power off to
scoreboard)
I. Jack for hand held switch One on each side of control (use either jack for any Hand Held switch)
I
H
F
G
A
B
E
C
D
D
