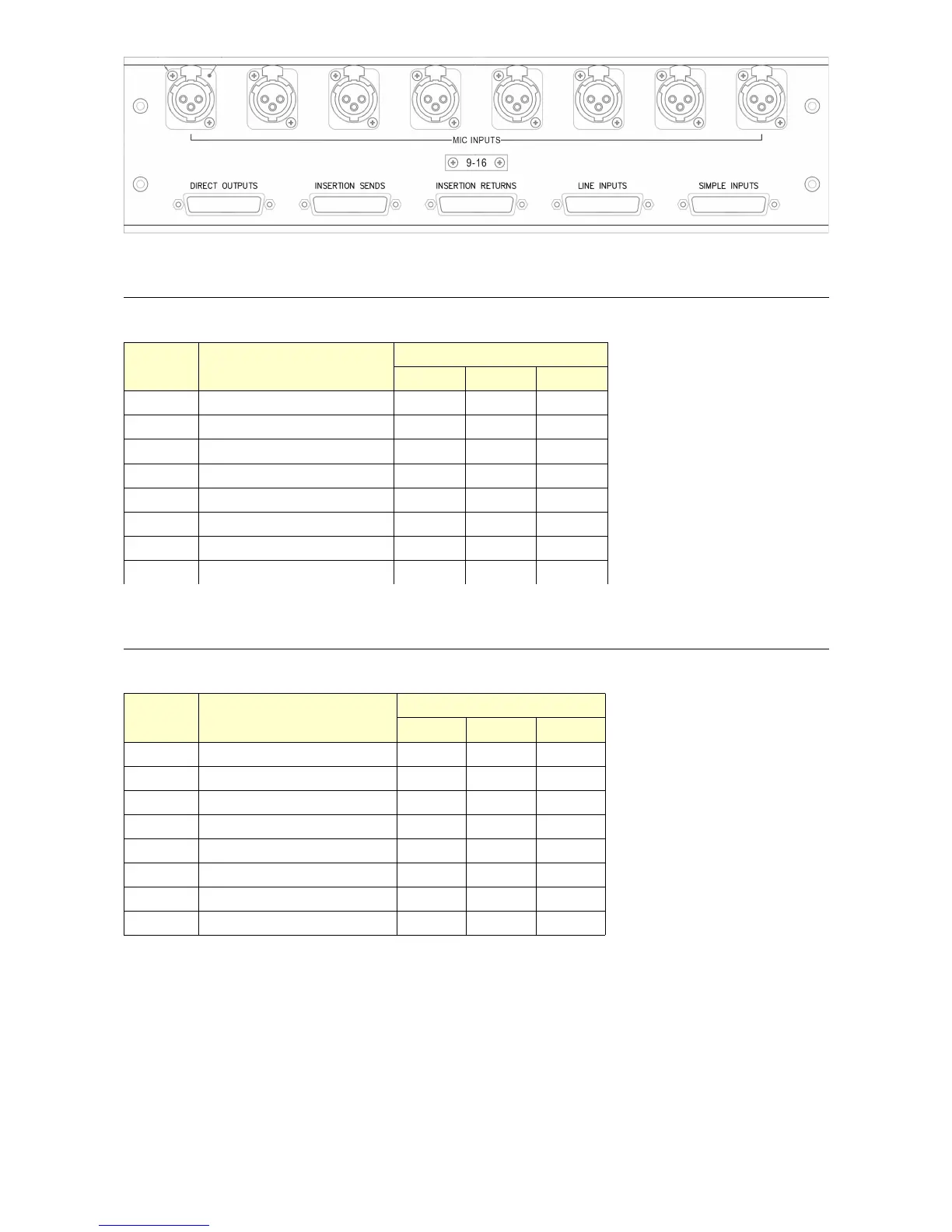

Neve BCM10/2 MK2 - Channel Insert Connections (Channels 9-16)

Channel Insert Send
(25-way D-type SKT)
Signal Name
Pin
Hi Lo Screen
9 Channel Insert Send 9 24 12 25
10 Channel Insert Send 10 10 23 11
11 Channel Insert Send 11 21 9 22
12 Channel Insert Send 12 7 20 8
13 Channel Insert Send 13 18 6 19
14 Channel Insert Send 14 4 17 5
15 Channel Insert Send 15 15 3 16
16 Channel Insert Send 16 1 14 2
Channel Insert Return
(25-way D-type SKT)
Signal Name
Pin
Hi Lo Screen
9 Channel Insert Return 9 24 12 25
10 Channel Insert Return 10 10 23 11
11 Channel Insert Return 11 21 9 22
12 Channel Insert Return 12 7 20 8
13 Channel Insert Return 13 18 6 19
14 Channel Insert Return 14 4 17 5
15 Channel Insert Return 15 15 3 16
16 Channel Insert Return 16 1 14 2
- 18 -
