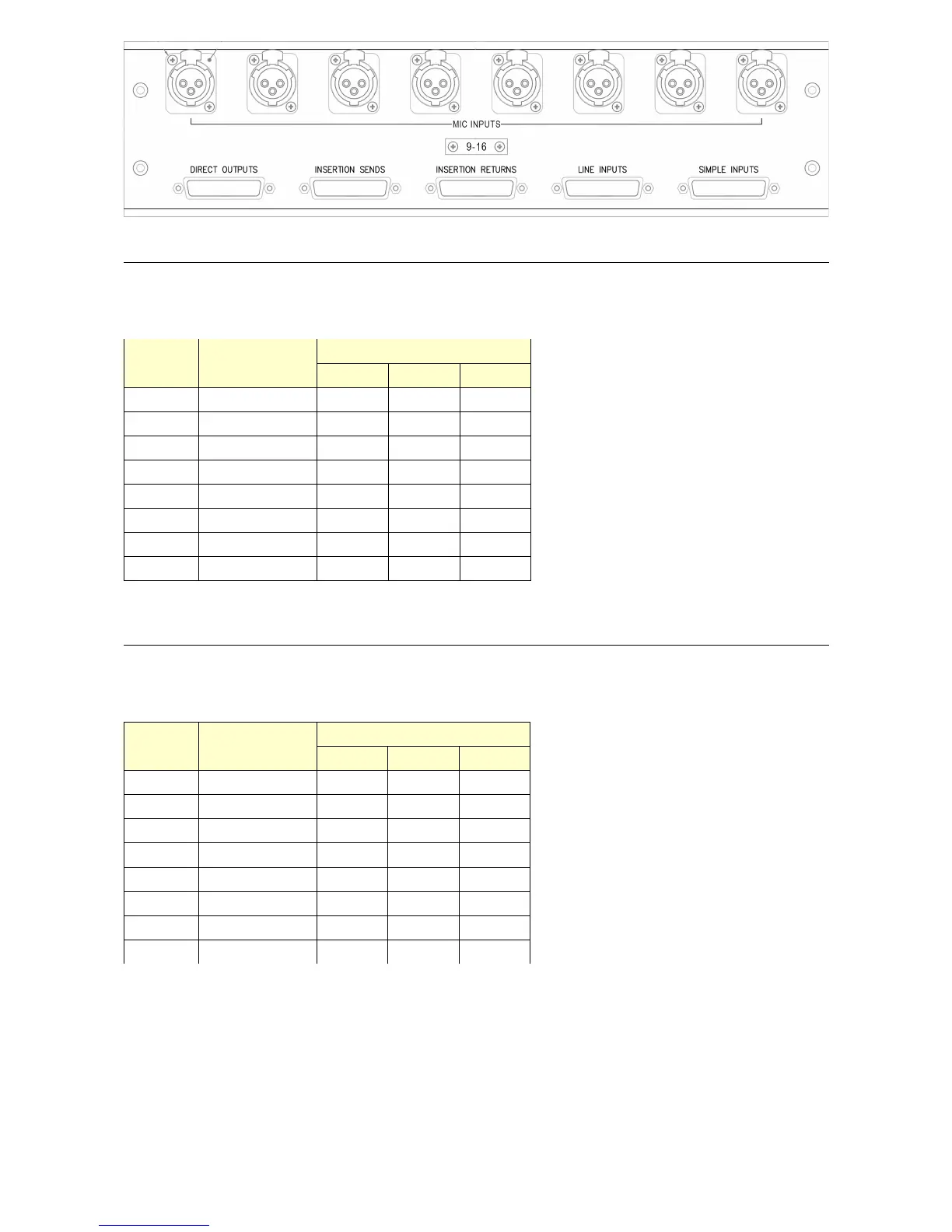

Neve BCM10/2 MK2 - Page 19

DAW Send (Direct O/P)
(Sends the outputs from the channels to the DAW to be recorded)
(25-way D-type SKT)
Signal Name
Pin
Hi Lo Screen
9 DAW Send 9 24 12 25
10 DAW Send 10 10 23 11
11 DAW Send 11 21 9 22
12 DAW Send 12 7 20 8
13 DAW Send 13 18 6 19
14 DAW Send 14 4 17 5
15 DAW Send 15 15 3 16
16 DAW Send 16 1 14 2
Simple I/Ps
(Channel DAW return to monitor DAW recording/play backs or DAW mixing.)
(25-way D-type SKT)
Signal Name
Pin
Hi Lo Screen
9 Simple I/P 9 24 12 25
10 Simple I/P 10 10 23 11
11 Simple I/P 11 21 9 22
12 Simple I/P 12 7 20 8
13 Simple I/P 13 18 6 19
14 Simple I/P 14 4 17 5
15 Simple I/P 15 15 3 16
16 Simple I/P 16 1 14 2
- 19 -
