Neve BCM10/2 MK2 - Page 22

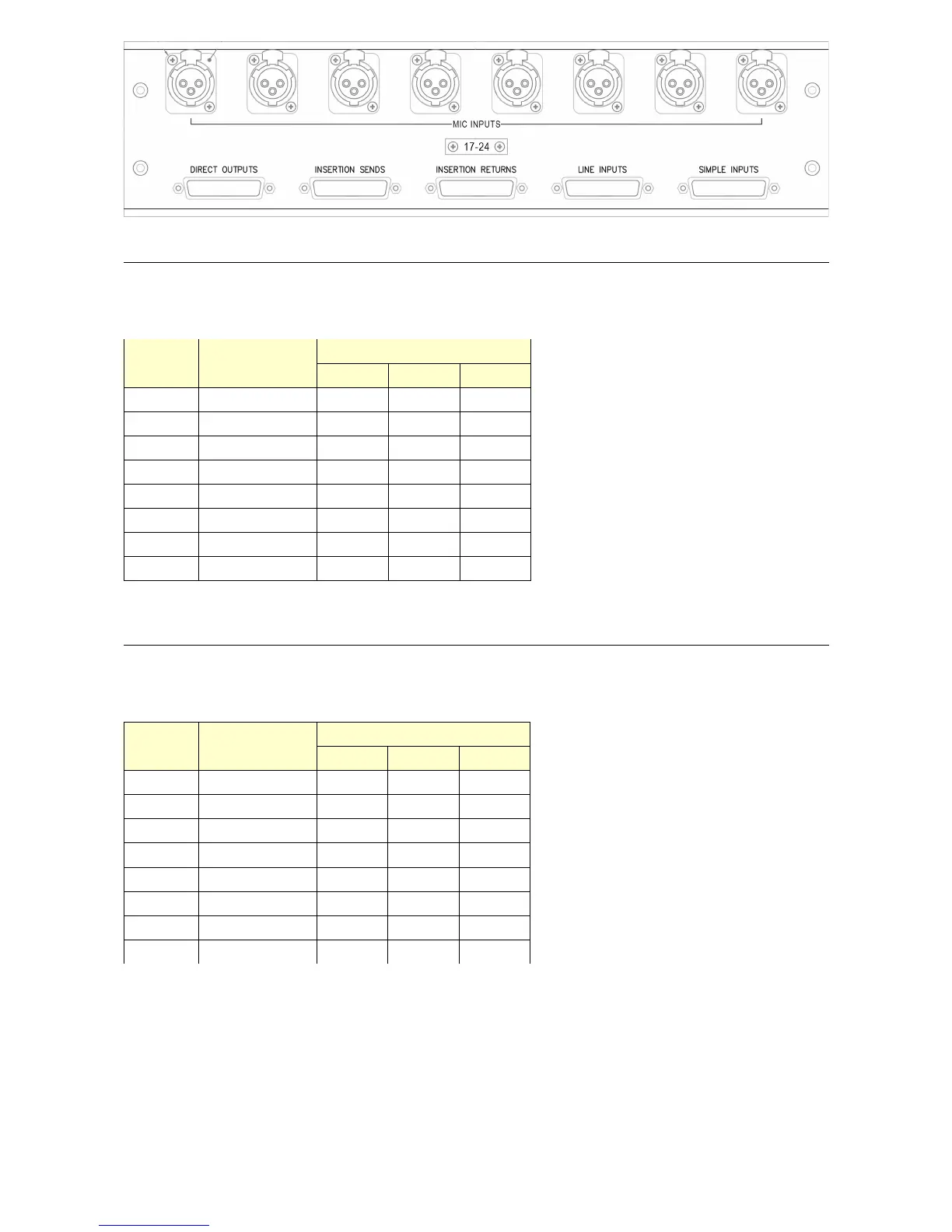

DAW Send (Direct O/P)
(Sends the outputs from the channels to the DAW to be recorded)
(25-way D-type SKT)
Signal Name
Pin
Hi Lo Screen
17 DAW Send 17 24 12 25
18 DAW Send 18 10 23 11
19 DAW Send 19 21 9 22
20 DAW Send 20 7 20 8
21 DAW Send 21 18 6 19
22 DAW Send 22 4 17 5
23 DAW Send 23 15 3 16
24 DAW Send 24 1 14 2
Simple I/Ps
(Channel DAW return to monitor DAW recording/play backs or DAW mixing.)
(25-way D-type SKT)
Signal Name
Pin
Hi Lo Screen
17 Simple I/P 17 24 12 25
18 Simple I/P 18 10 23 11
19 Simple I/P 19 21 9 22
20 Simple I/P 20 7 20 8
21 Simple I/P 21 18 6 19
22 Simple I/P 22 4 17 5
23 Simple I/P 23 15 3 16
24 Simple I/P 24 1 14 2
- 22 -
