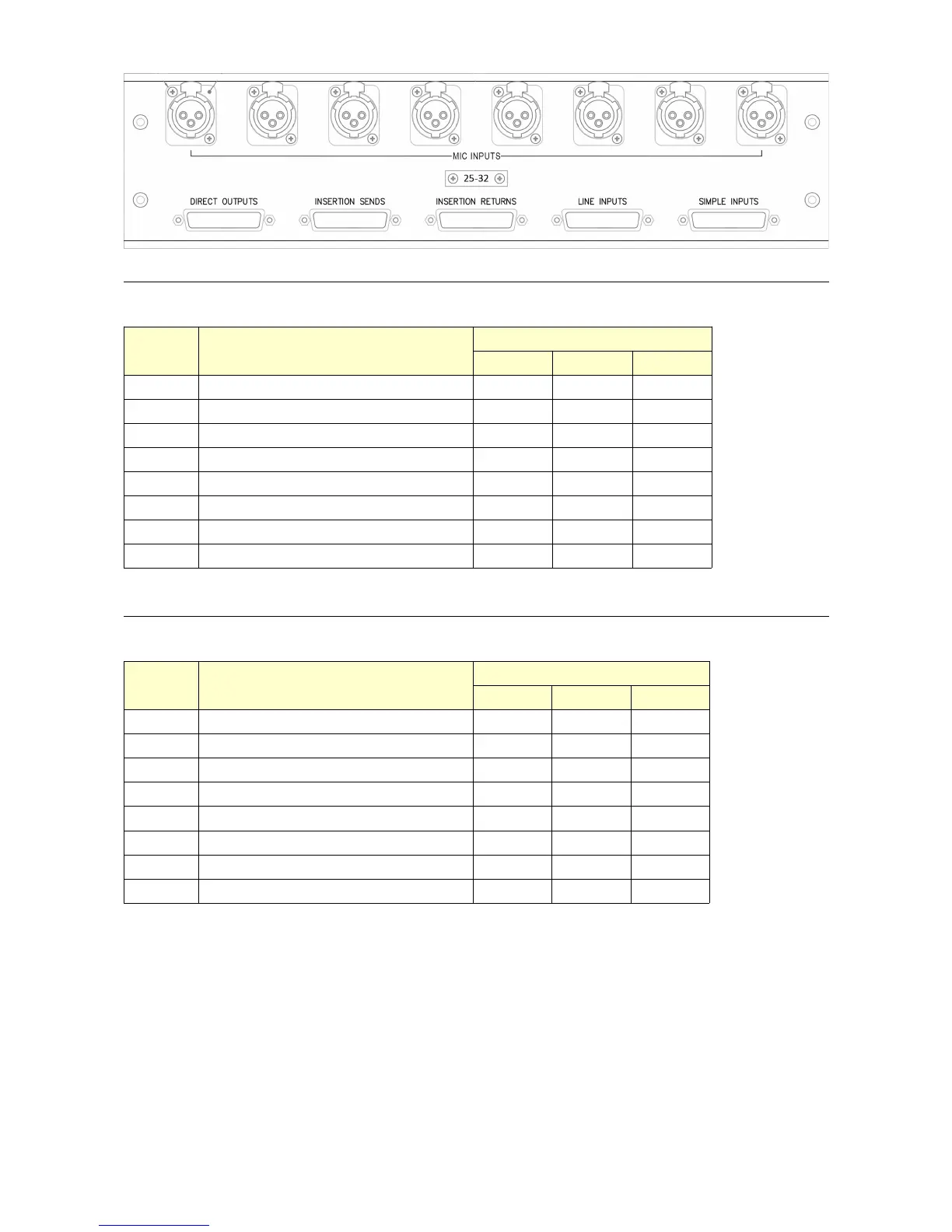

Neve BCM10/2 MK2 - Channel Connectivity Details (25-32); Mic Input Pinouts (Channels 25-32)

Mic I/Ps
(XLR Socket)
Channel Name
Pin
Hi Lo Screen
17 Mic I/P 25 2 3 1
18 Mic I/P 26 2 3 1
19 Mic I/P 27 2 3 1
20 Mic I/P 28 2 3 1
21 Mic I/P 29 2 3 1
22 Mic I/P 30 2 3 1
23 Mic I/P 31 2 3 1
24 Mic I/P 32 2 3 1
Line I/Ps
(25-way D-type SKT)
Signal Name
Pin
Hi Lo Screen
17 Line I/P 25 24 12 25
18 Line I/P 26 10 23 11
19 Line I/P 27 21 9 22
20 Line I/P 28 7 20 8
21 Line I/P 29 18 6 19
22 Line I/P 30 4 17 5
23 Line I/P 31 15 3 16
24 Line I/P 32 1 14 2
