User Manual

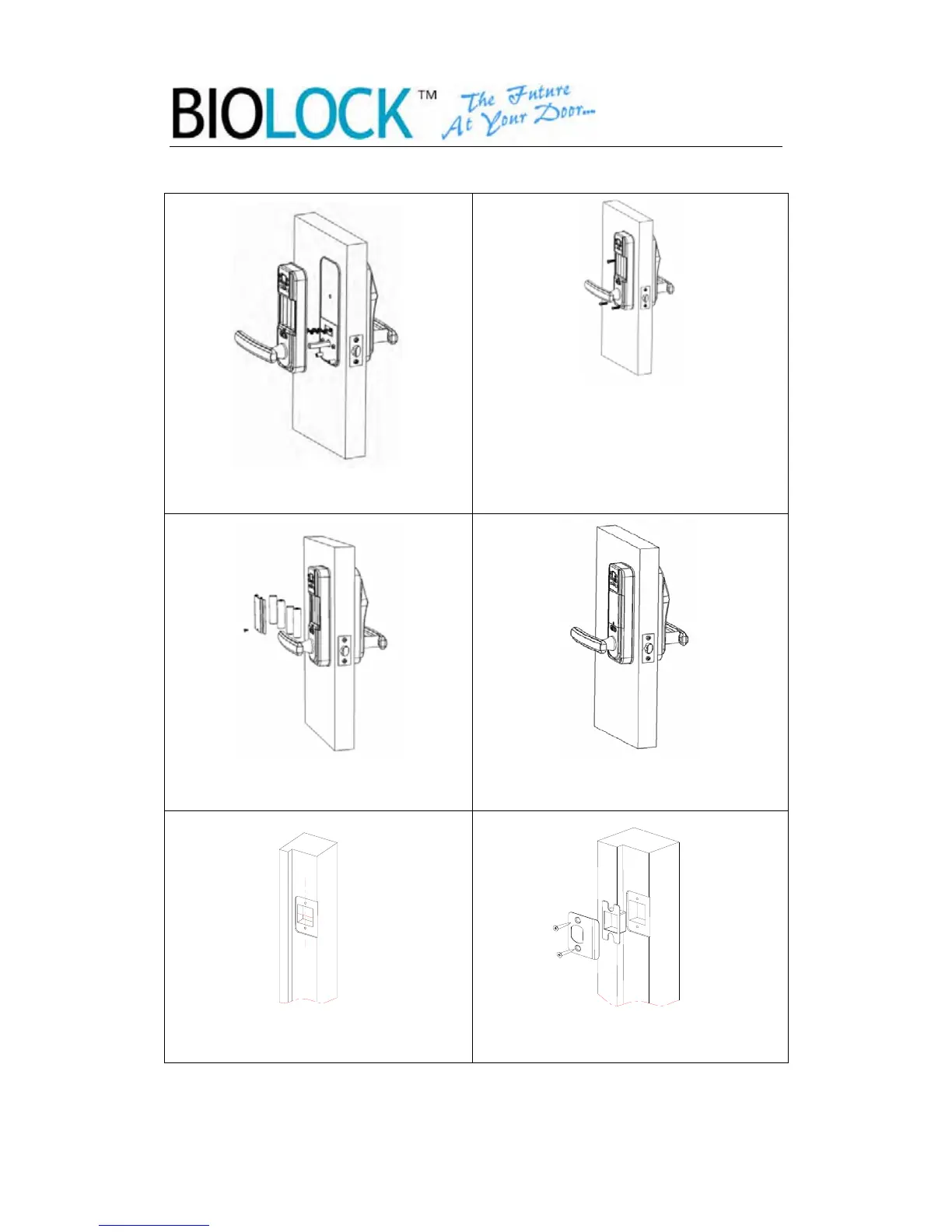

6.Connect the cable to the back panel
(part #4) Please refer to Section 3.6.
7. Attach the back panel (part #4) to
front panel connectors with 3 connector
screws. If your door thickness is from
1.25” to 1.65” use short connector
screws (Part #1). If your door thickness
is from 1.65” to 2.0” use long
connector screws (Bag B).
8. Install the batteries into the
compartment on the back panel.
9. Attach the battery cover with battery
cover screw (part # 8)
10. Cut hole for strike and strike plate 11. Attach the strike and strike plate with
strike screws (in Bag A)
-17-
To Next Page
