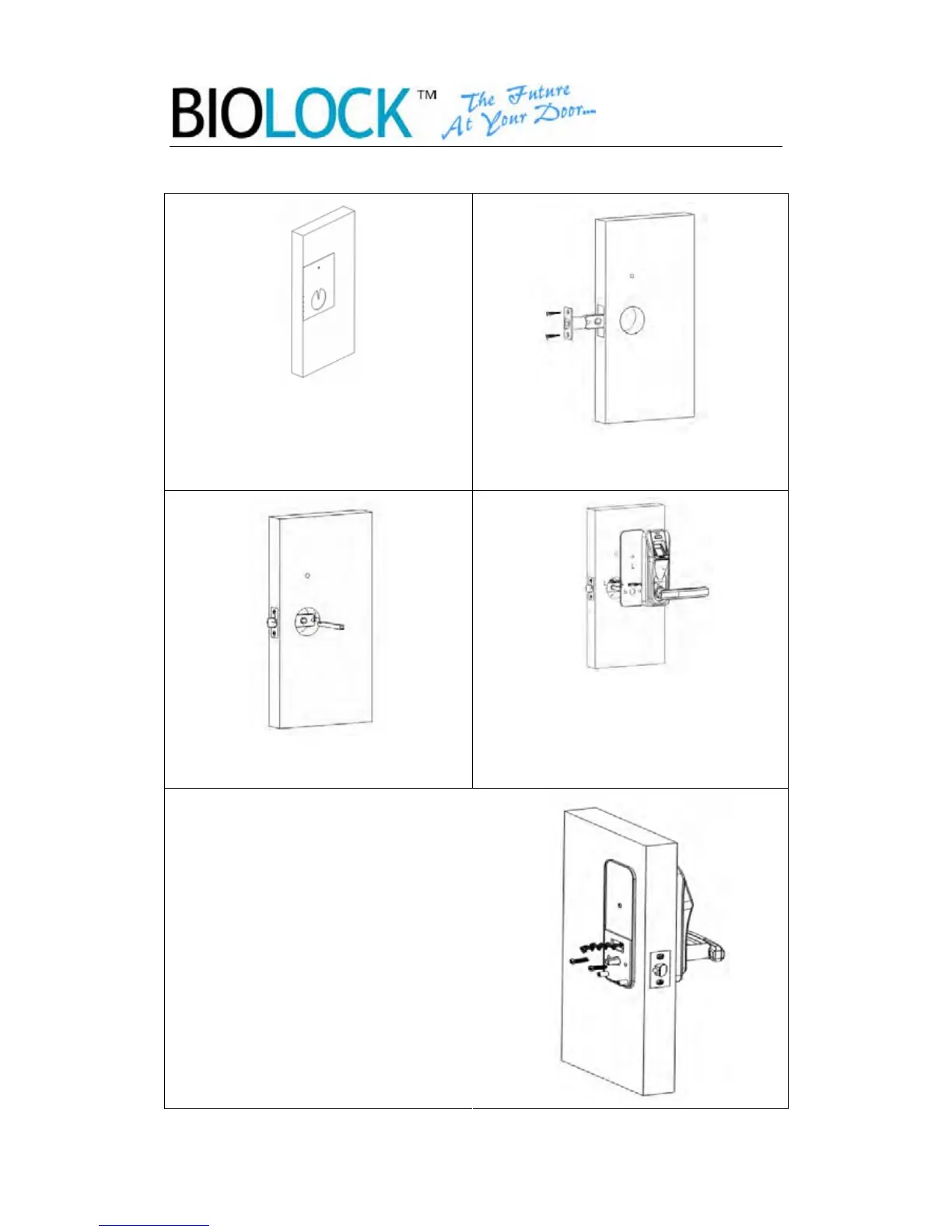

3.4 Installation steps
2. Then attach the latch (part #2) with
the 1.2” screws (in Bag B)
3. Put the square spindle (part #2)
through the basket hole
-16-
1. Remove your old handle. Then place
the template so the large handle hole
lines up with the pre-existing hole in the
door. Determine the handle line and drill
holes with the template board (part #9)
5. Place the other rubber gasket (part #5)
on the inside of the door and attach the
back iron board (part #6) on the rubber
gasket (part #5) with the iron fixing board
screws (part #6)
4. Place the rubber gasket (part #5) on
the back of the front panel (part # 3) &
feed the black wire connector through
the gasket hole and then through the
door hole to the other side. Then install
the front panel (part #3).
