SECTION 2 – CONTROLS, INSTRUMENTS AND OPERATION
2–5

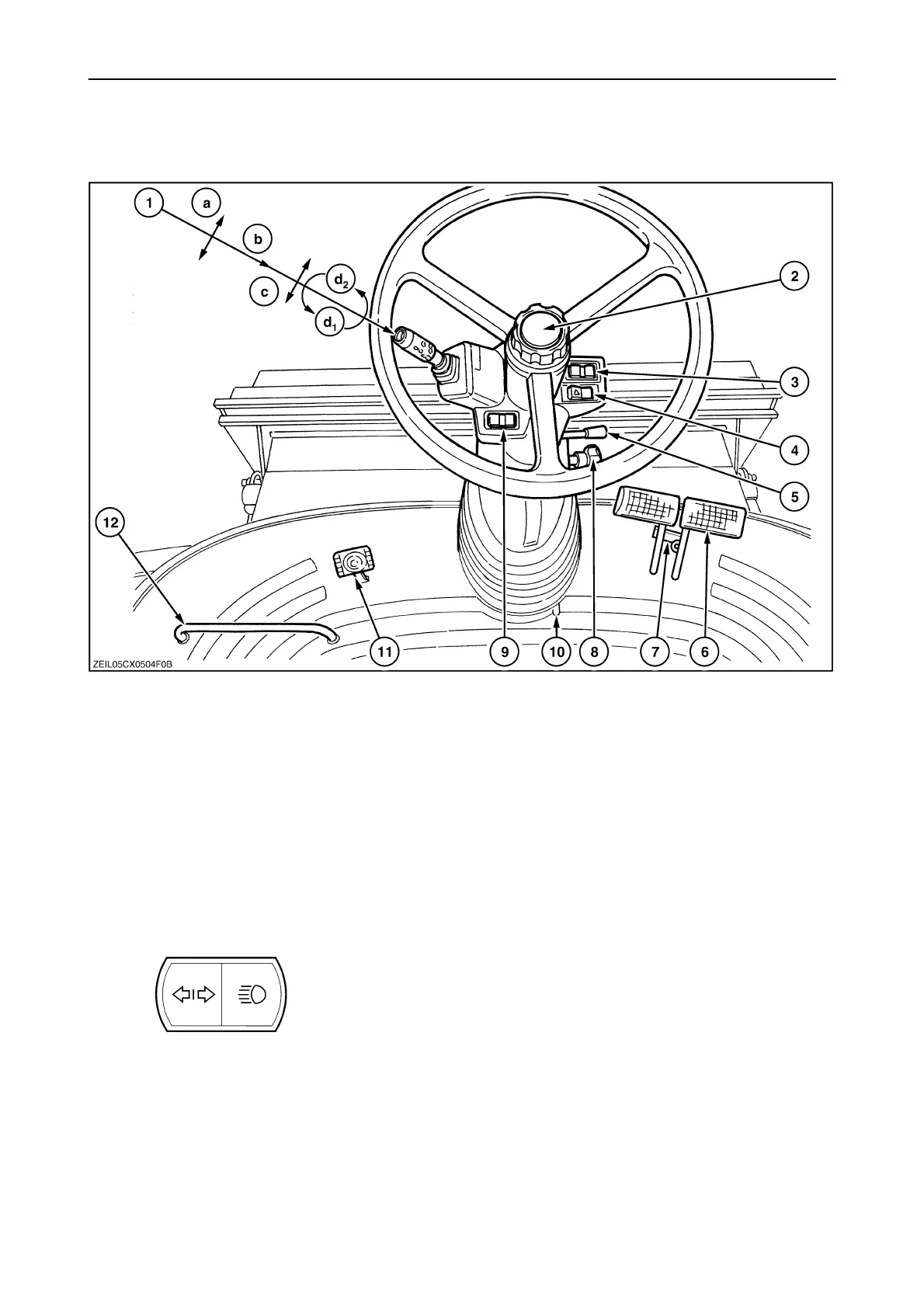

Steering column and Control pedals
10
1. a. Direction indicator lever (left and right)
b. Horn (push)
c. Main beam headlights (up) and dipped headlights (down) selector switch
d. Parking lights (1 stop) and headlights (2 stop) turn switch
2. Steering wheel height control screw
Loosen this screw and lower or raise the steering wheel to the desired position.
Right:
High beam headlight warning light
When the high beam headlight is switched ON, this light is illuminated.
Left:
Trailer direction indicator warning light (linked up with buzzer)
When a trailer is hooked up and the wires are properly connected, both DIREC-
TION INDICATOR WARNING LIGHT and TRAILER DIRECTION INDICATOR
WARNING LIGHT will flash.
3.
