SECTION 2 – CONTROLS, INSTRUMENTS AND OPERATION
2–15
Shaft Speed Monitor (SSM)

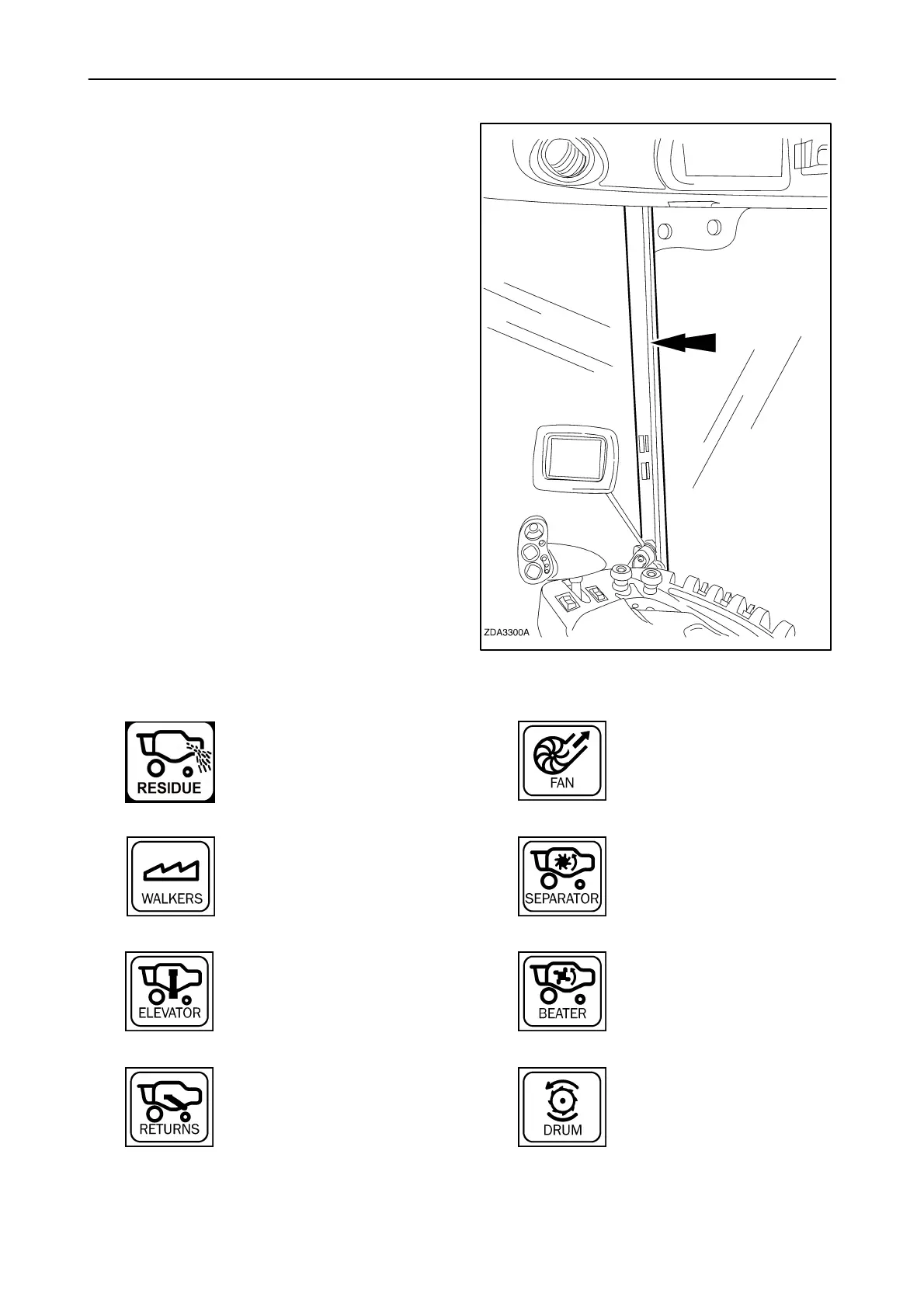

The Shaft Speed Monitor (SSM) (1) is located to the
front and to the right of the operator, integrated in the
cab frame.
The SSM features low speed warning alarms
accompanied by an audible alarm for several shaft
speeds.
When the ignition key is rotated to the ”contact”
position, the SSM shows a lamp test for a short time.
The SSM will continuously show fuel level and engine
coolant temperature on its two digital bar graphs.
These gauges also include alarm and warning lights.
NOTE: The backlighting of the SSM can be adjusted
via the InfoView monitor. Refer to
“VII Configurations and Calibrations”, paragraph;
“4.Display settings”, headed: “SSM lcd backlight”.
14
1.
Residue low speed warn-
ing light (if installed)
2.
Straw walkers low speed warning
light
3.
Grain elevator low speed warning
light
4.
Return(s) low speed warning light
5.
Cleaning fan low speed warning
light
6.
Rotary separator low speed warn-
ing light
7.
Beater low speed warning light
8.
Drum low speed warning light
