13-May-13 Phone: 1.800.325.7867 Fax: 1.636.925.0029 www.newcocoffee.com
14

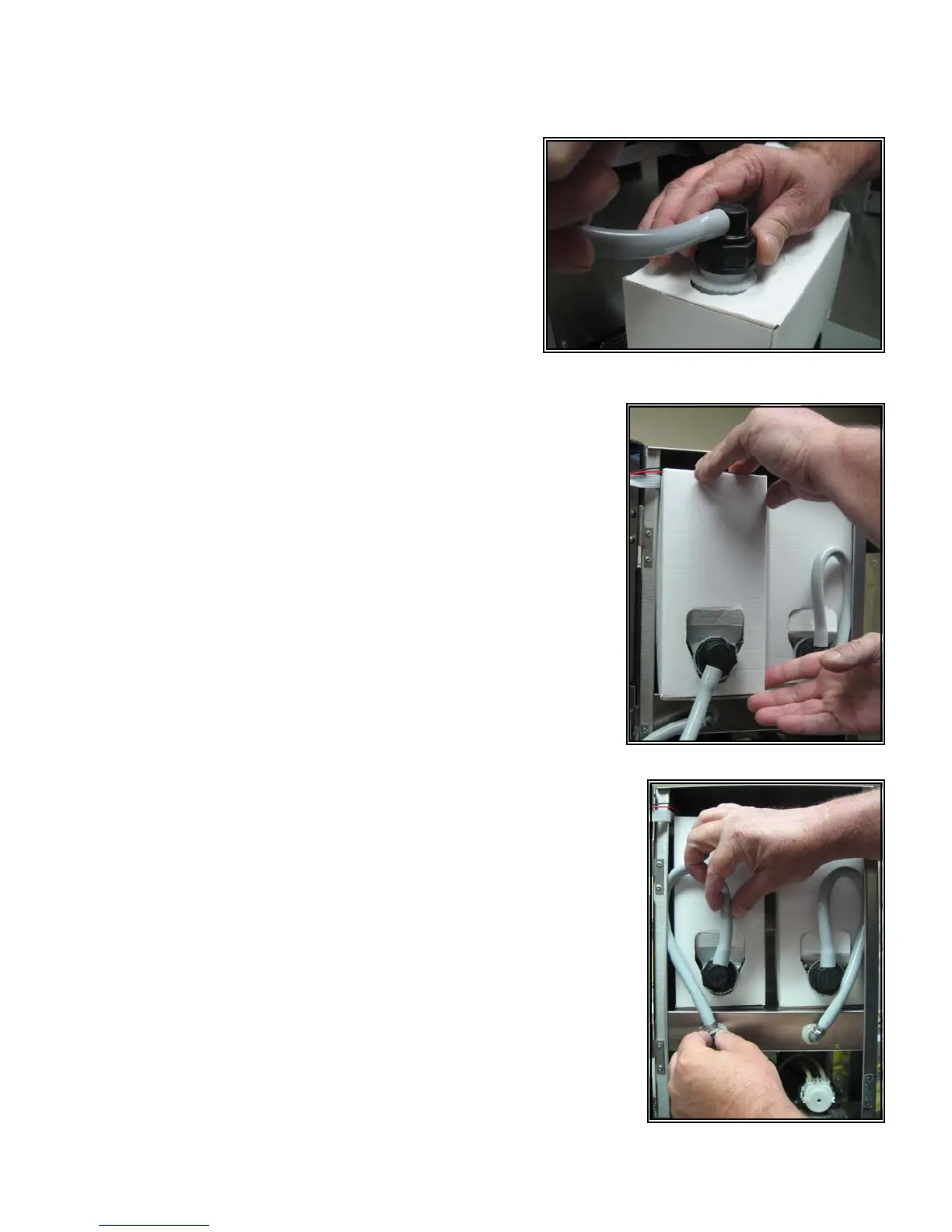

Using finger and thumb only to prevent over-tightening,
thread the BIB connector on to the BIB fitment until
seated as shown in figure 3.
Place the product in the storage compartment as shown in figure
4.
Position the tubing as shown in figure 5
Fig. 3
Fig. 4
Fig. 5
