24

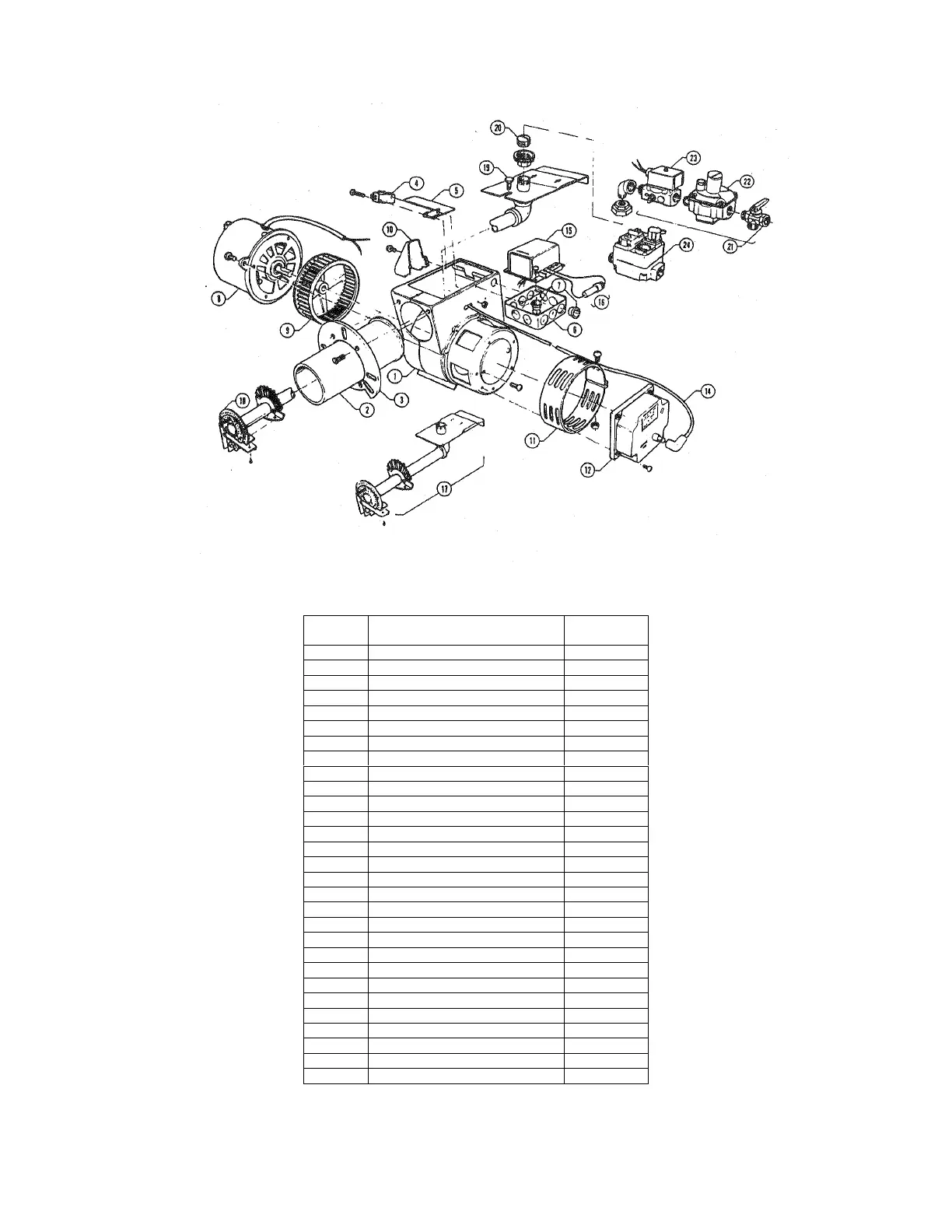

FIG. 16-1E
AERO PGB 220-370 GAS BURNER EXPLODED ASSLY
FIG. 16-1F
AERO PGB 220-370 GAS BURNER PARTS LIST
ITEM
#
PART NAME & DESCRIPTION AERO #
1 F Housing 9035222400
2 Airtube (5"-8"-11')
3 Mounting Flange (Standard) 2735161000
4 Micro Switch (V3101-D8) 9035061441
5 Sail & Leaf (JV-26) 2735121091
6 "J" Box 2735121091
7 "J" Box Hardware 2735121091
8 Motor (1/7/3450/60/1) 2735251414
9 Fan 524-202 (PGB 220) 2735151200
9a Fan 524-316 (PGB 370) 2735152016
10 Raceway 2726202550
11 Air Band Assembly 2726200100
12 Ignition Control 9035061311
13 Wiring Harness (not shown) 9035061321
14 High Voltage Cable 9035061301
15 Fan Center 9035061210
16 Fuse Assembly 9026121400
17 Manifold Assembly - ½" PGB 220
17a Manifold Assembly - ¾" PGB 370
18 Electrode Assembly (S.S.B.) 9026121300
19 Centering Bolt 9035202205
20 Orifice (Input Required) 7235515220
21,22,23 Replaced by Gas Valves
24 Combination Gas Valve (220) 9035061225
24a Combination Gas Valve (370) 9035061227
24b Comb. Propane Valve (220/370) 9035061226
Adjustable Flange 2735162000
Base assembly 2735032000
Carton - complete 9035401000
