26

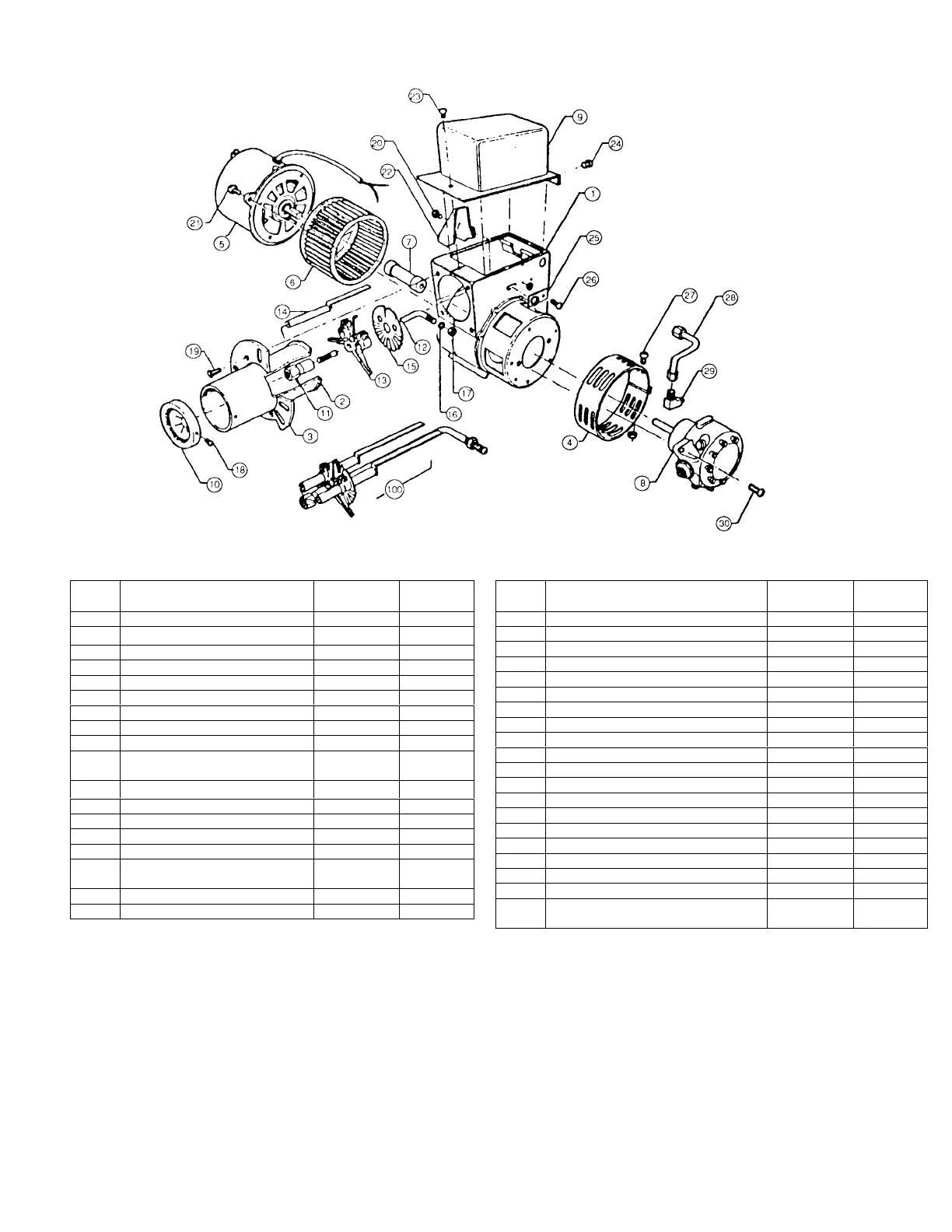

FIG. 16-2A - AERO BURNER EXPLODED ASSEMBLY
FIG. 16-2B - PARTS LIST
Model F-AFC AERO OIL BURNER
ITEM
#
DESCRIPTION
AERO
PART #
NEWMAC
PART #
1 F housing 2735222100
2 Blast Tube 8" 2090006
3 Mounting flange - Standard 2735161000
4 Air band assembly 2726200100
5 Motor 1/6 HP, 1725 RPM 2735251415 2020010
6 Fan, 524-316 2735152016
7 Flexible metal-end coupling 2433804813
8 Fuel Pump A1VA-7112 Suntec 2735171201
9 Transformer, Ignitor 2275-456 2735382730 2090066
Transformer, Iron Core 2721-
456 2735382740 2090002
Transformer, 421-456
10 End Cone:
AFC-2 2735141200 2110002
AFC-3 2735141300 2110003
11 Nozzle Adapter 2735261100
12
Oil pipe, aluminum (specify
blast tube length)
13 Electrode Holder 2725131100
14 Electrode (with porcelains) 2725132100 2090004
ITEM
#
DESCRIPTION
AERO
PART #
NEWMAC
PART #
14A Bus bars (specify length)
15 Turbo static disc F-AFC, 3” 2725353000
16 Jam hex nut 9935193401
17 Knurled lock nut
100 Complete electrode assly (11 to 17) 2090001
18 AFC end cone screws 9935203901 2090020
19 Blast tube screw (specify length) 9935202202
20 Raceway 2726202250
21 Motor screws 9935203202
22 Raceway screw 9935203901
23 Transformer lock down screw 9935203201
24 Transformer hinge screws 9935203901
25 Slide plate 2726200400
26 Slide plate pop rivet 9935203901
27 Air band locking screw 9935203202
27 Air band locking nut 9935193201
28 Oil line assembly 2726202800
29 Compression elbow, 90 degree
30 Fuel pump screws 9935203202
33
Oil burner mounting gasket, 1/8" -
(not shown) 2735182400
When ordering parts, always give: (1) Model, (2) Part Name, (3) Part Number, (4) Size and (5) Quantity Required.
