Newmac CL86 - Page 28

27

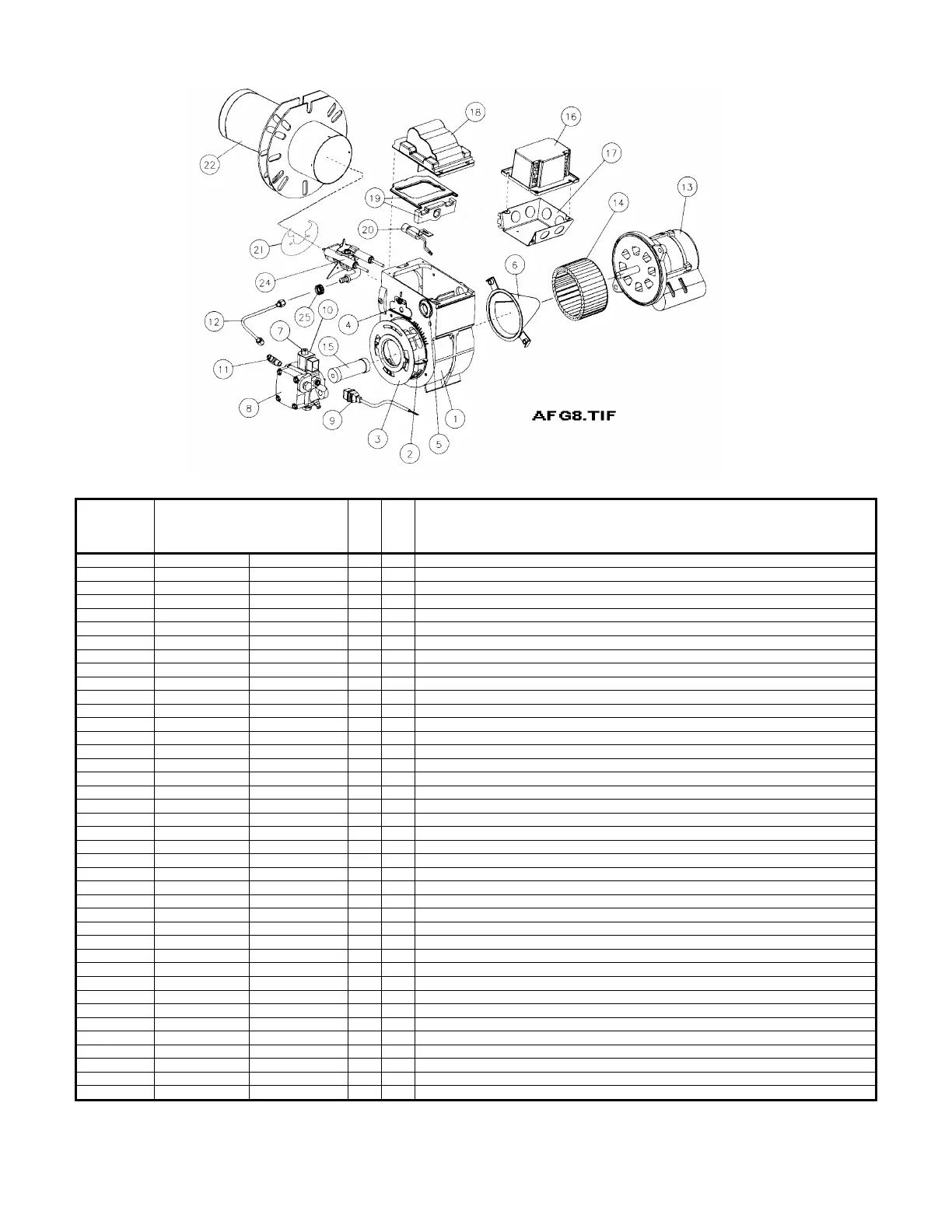

FIG. 16-3A - BECKETT BURNER EXPLODED ASSEMBLY
FIG. 16-3B - BECKETT BURNER PARTS LIST
PART NUMBER
ITEM
NO.
BECKETT NEWMAC
NM50
2
NM50
3
DESCRIPTION
1 5877 2090024 X X Burner Housing Assembly
2 3709 X X Air Shutter
3 3492 X X Air Band
4 3493 X X Escutcheon Plate
8 21844U 2060012 X X Pump Clean Cut A2EA - 6520
51843U X X Strainer & Gasket
10 21755U 2090065 X X Valve Coil (Suntec Part No. 3713824)
7 21877U 2090072 X X Valve Stem
51573 2090058 Suntec Pump c/w Solenoid Valve
51843U Strainer & Gasket
21755U Valve Coil (Suntec Part No. 3713824)
Valve Stem (Includes 2 O Rings) (Suntec Part No. 3773578)
Solenoid Valve Repair Kit (Suntec Part No. 991375)
9 21807 X X Valve cordset
11 2256 Pump Nozzle Port Fitting
12 5394 Connector Tube Assembly
13 21805U 2020012 X X PSC Drive Motor, 3450 RPM
14 2999U 2090056 X X Blower Wheel
16A 7456U 2090069 X X Primary Relay, Honeywell R7184B
16B 7457U 2090067 Primary Relay, Honeywell R7184P
17 5770 X X Junction Box Kit
18 51771U 2090064 X X Electronic Ignitor (14,000 Volt)
20 7006U 2010006 X X Cad Cell C554A1455B Honeywell
21 3384 X X 3-3/8U Static Plate
22 5153633BK 2090039 X X Blast Tube c/w Welded Flange AFG (7 7/8”)
2110007 X Endcone, F4
2110009 X Endcone, F6
24 2090022 X X Electrode Assembly 8”
31517 2110015 X X Ceramic Heat Shield
2110016 X X Ceramic Heat Shield Holder
3416 2080051 X X Flange Gasket
51770 2090061 Field Controls AirBoot
5880 2090044 X X Low Firing Rate Baffle
5941 X X Adjusting Plate Assy
2100131 X Nozzle, Delavan 0.75 X 70
o
A
2100128 X Nozzle, Delavan 0.85 X 70
o
A
2100132 X X Nozzle, Delavan 1.00 X 70
o
A
2100129 X Nozzle, Delavan 1.25 X 70
o
A
2100133 X Nozzle, Delavan 1.35 X 70
o
A
2100134 X Nozzle, Delavan 1.50 X 70
o
A
Note: Also approved with SR Burner – See General Instructions & Certification Label
