Newmac CL86 - Page 29

28

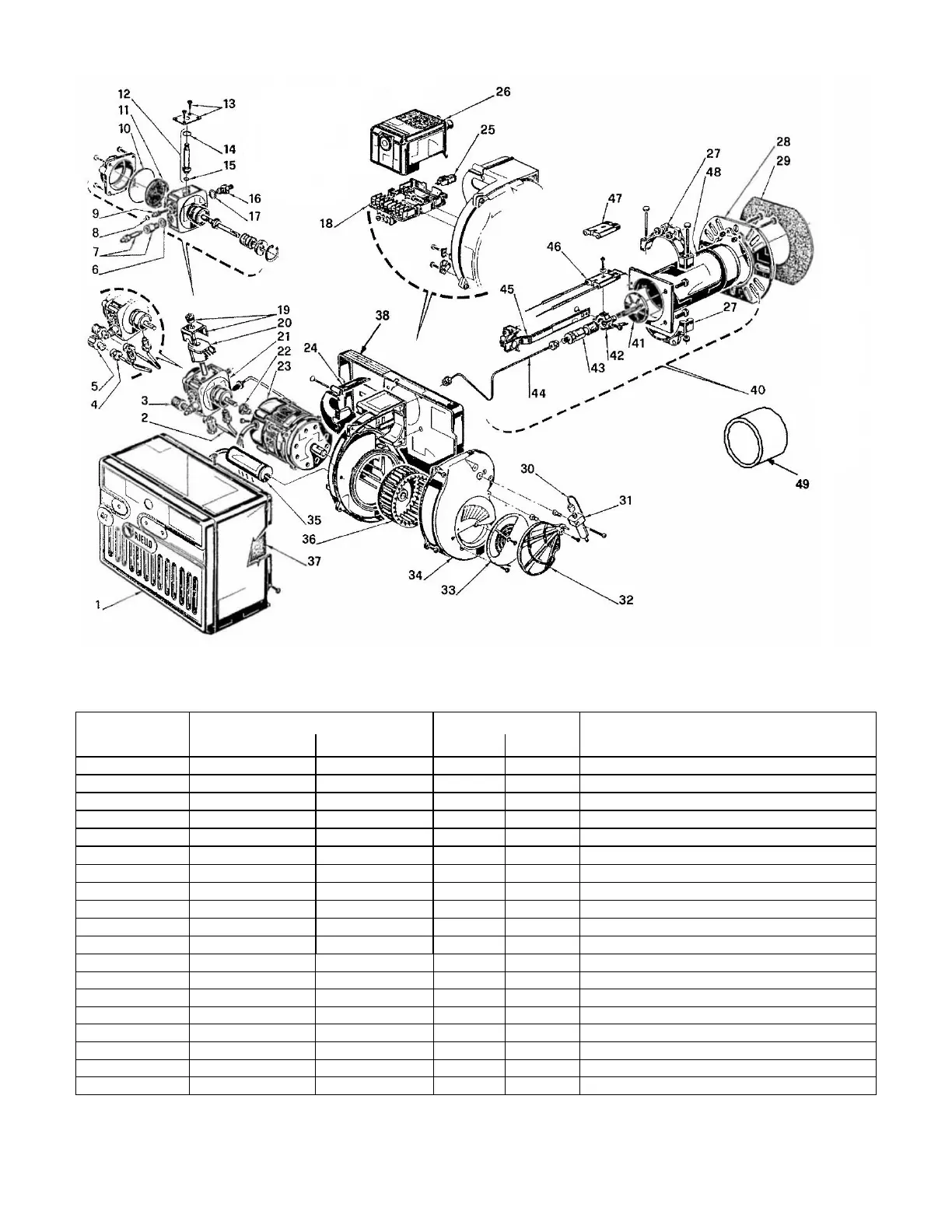

FIG. 16-4A - RIELLO F3 & F5 EXPLODED ASSEMBLY
See FIG. 15D for location of Riello End Cone Protector (No. 49)
FIG. 16-4B - RIELLO BURNER PARTS LIST
ITEM PART NUMBER
BURNER MODEL
DESCRIPTION
F3 & F5 RIELLO NEWMAC
F3 F5
10 C7010002 2090043
X X
O-ring - pump cover
20 3002279
X X
Solenoid Coil
21 3007802 2060007
X X
Pump
23 3005843
X X
Motor
25 3002280 2010045
X X
Photo cell
26 C7001029 2010048
X X
Primary control 530 SE/C
28 3005855
X X
Universal mounting flange
29 3005856 2080058
X X
Mounting gasket
33 3007204
X X
Manual Air Shutter
35 3005844 2090041
X X
Capacitor 12.5 Uf
36 3005708
X X
Fan
40 C3948874 2090051
X
Blast Tube Assembly
C3948974 2090046
X
Blast Tube Assembly
49 C7001033 2030016
X X
Blast Tube Protector
3007568
X X
Bleeder
3006925
X X
Valve Stem
C7001013
X X
Parts Bag
2010034
X X
24V Relay, Switching (for Riello)
